AIR RAIL Каталог оригинальных запчастей для лодочных моторов Tohatsu MD50B2 (2016)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

AIR RAIL

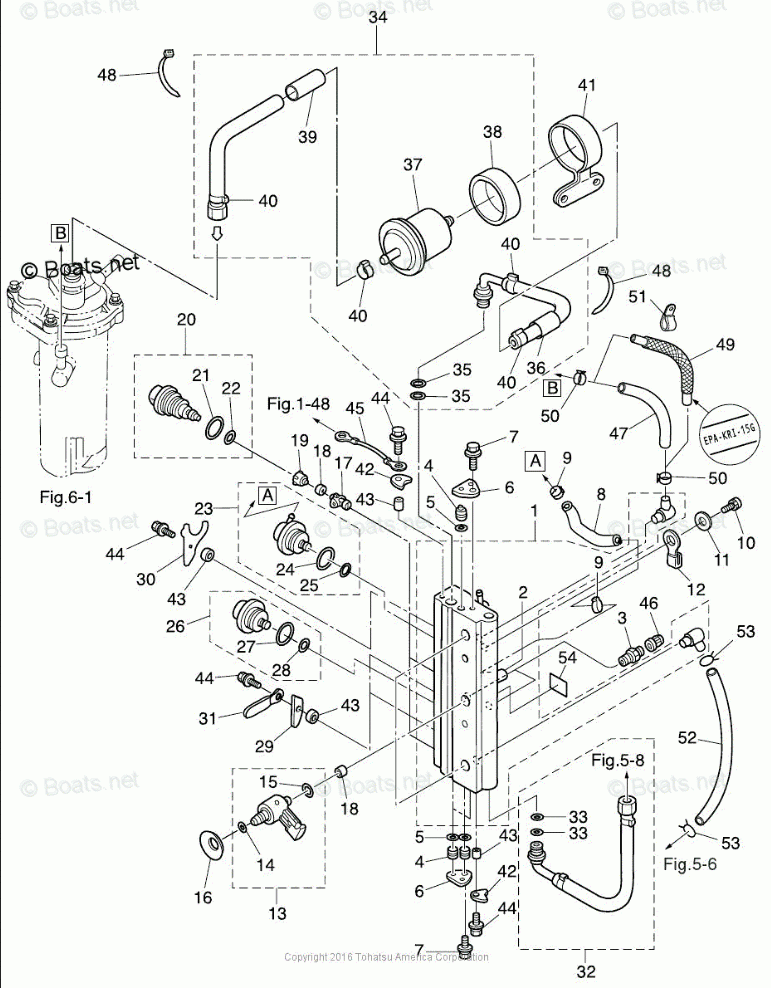

Tohatsu MD50B2

AIR RAIL

#

oem код

название

цена

4-31

CLAMP

CLAMP

4-39

PROTECTION TUBE (L=150mm)

PROTECTION TUBE (L=150mm)

4-20

FUEL INJECTOR, FOR D40A/B/B2-/50A/B/B2-/70A-B/90A-B

FUEL INJECTOR, FOR D40A/B/B2-/50A/B/B2-/70A-B/90A-B

4-29

PLATE, FUEL INJECTOR

PLATE, FUEL INJECTOR

4-22

O-RING 3.5-7.5

O-RING 3.5-7.5

4-21

O-RING 2.8-20.2

O-RING 2.8-20.2

4-17

INSERT, FUEL INJECTOR

INSERT, FUEL INJECTOR

4-19

ADAPTER FUEL INJECTOR

ADAPTER FUEL INJECTOR

4-18

SEAL, COMPRESSION

SEAL, COMPRESSION

4-14

O-RING 5-52

O-RING 5-52

4-54

LABEL AIR RAIL

LABEL AIR RAIL

4-37

FUEL FILTER, HIGH PRESSURE

FUEL FILTER, HIGH PRESSURE

4-30

HOLDING PLATE, FUEL INJECTOR

HOLDING PLATE, FUEL INJECTOR

4-4

PLUG

PLUG

4-15

O-RING, 2.4-9.5, D40/50/70/90B/115A2

O-RING, 2.4-9.5, D40/50/70/90B/115A2

4-16

SET PIECE AIR INJECTOR, D40/50/70/90B/115

SET PIECE AIR INJECTOR, D40/50/70/90B/115

4-48

BAND LEAD WIRE 203-LOCAL PURCHASE

BAND LEAD WIRE 203-LOCAL PURCHASE

4-36

PROTECTOR

PROTECTOR

4-41

FUEL FILTER BAND

FUEL FILTER BAND

4-7

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

4-44

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

4-10

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

4-11

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

4-47

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

4-52

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

4-42

PLATE, NIPPLE

PLATE, NIPPLE

4-2

L-NIPPLE

L-NIPPLE

4-53

CLIP, FUEL PIPE

CLIP, FUEL PIPE

4-9

CLAMP

CLAMP

4-51

CORD CLAMP A

CORD CLAMP A

4-45

GROUND WIRE

GROUND WIRE

4-34

FUEL HOSE ASSY

FUEL HOSE ASSY

4-26

REGULATOR, AIR D40/50B2D75/90C2/115A2 (ORANGE)

REGULATOR, AIR D40/50B2D75/90C2/115A2 (ORANGE)

4-13

AIR INJECTOR, D40/50B2/D75/90C2/115A2 (ORANGE)

AIR INJECTOR, D40/50B2/D75/90C2/115A2 (ORANGE)

4-49

FUEL HOSE, LOW PERMEATION

FUEL HOSE, LOW PERMEATION

4-50

CLIP, @ 9.4

CLIP, @ 9.4

4-12

CLAMP

CLAMP

4-1

AIR RAIL

AIR RAIL

4-40

CLAMP, 21/32 (17.5mm)

CLAMP, 21/32 (17.5mm)

4-32

AIR HOSE ASSY

AIR HOSE ASSY

4-25

O-RING

O-RING

4-6

STOPPER PLUG

STOPPER PLUG

4-28

O-RING

O-RING

4-27

O-RING

O-RING

4-24

O-RING

O-RING

4-3

VALVE ASSY

VALVE ASSY

4-46

CAP, VALVE

CAP, VALVE

4-38

RUBBER, FUEL FILTER

RUBBER, FUEL FILTER

4-23

FUEL REGULATOR

FUEL REGULATOR

4-43

COLLAR

COLLAR

4-33

O-RING 9.8-1.9

O-RING 9.8-1.9

4-35

O-RING 9.8-1.9

O-RING 9.8-1.9

4-5

O-RING 6.8-1.9

O-RING 6.8-1.9

4-8

AIR HOSE

AIR HOSE
