BOTTOM COWL Каталог оригинальных запчастей для лодочных моторов Tohatsu MD50B2 (2016)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

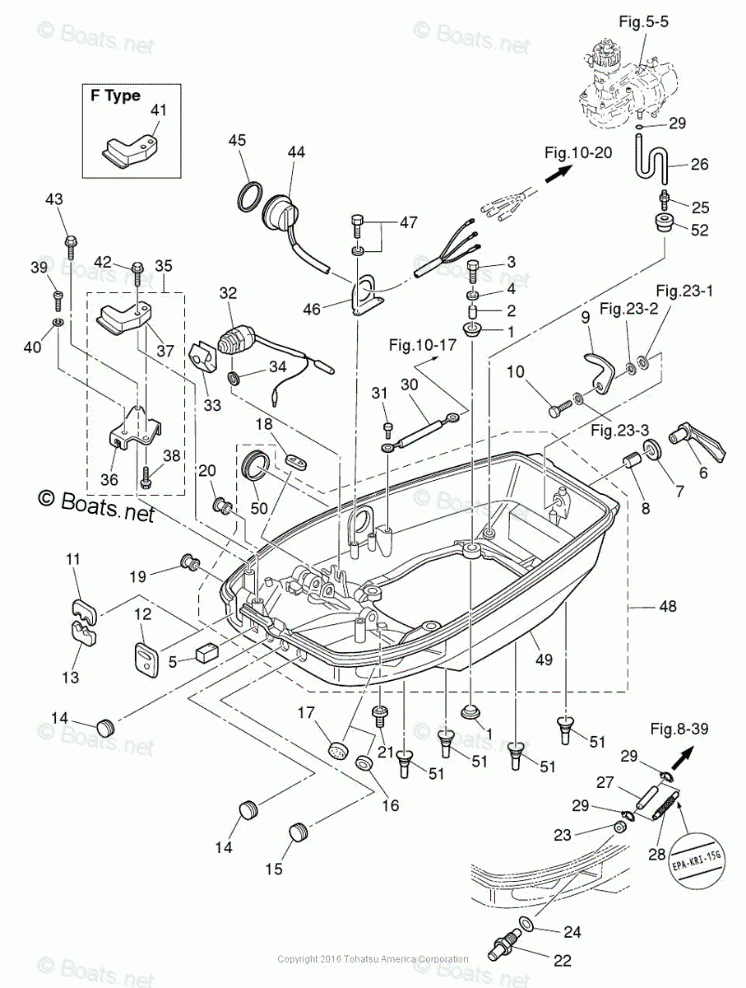

BOTTOM COWL

Tohatsu MD50B2

BOTTOM COWL

#

oem код

название

цена

22-23

NUT

NUT

22-5

PLUG

PLUG

22-37

CLAMP

CLAMP

22-41

CLAMP

CLAMP

22-35

CABLE CLIP BRACKET ASSY

CABLE CLIP BRACKET ASSY

22-45

GASKET, PTT SWITCH NS70B, D40/50B2

GASKET, PTT SWITCH NS70B, D40/50B2

22-50

GROMMET, POWER TRIM TILT SWITCH

GROMMET, POWER TRIM TILT SWITCH

22-28

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

22-44

SWITCH B ASSY, PTT, M40/50B2

SWITCH B ASSY, PTT, M40/50B2

22-46

BRACKET, PTT SWITCH, D40/50B2

BRACKET, PTT SWITCH, D40/50B2

22-30

GROUNDING WIRE

GROUNDING WIRE

22-25

WATER NIPPLE

WATER NIPPLE

22-12

GROMMET, BATTERY CORD

GROMMET, BATTERY CORD

22-48

LOWER MOTOR COVER W/GROMMET

LOWER MOTOR COVER W/GROMMET

22-51

DRAIN PLUG

DRAIN PLUG

22-36

BRACKET, CLUTCH CABLE CLIP

BRACKET, CLUTCH CABLE CLIP

22-10

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

22-31

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

22-47

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

22-3

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

22-38

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

22-43

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

22-42

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

22-40

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

22-26

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

22-6

HOOK LEVER (AMB)

HOOK LEVER (AMB)

22-49

LOWER MOTOR COVER-DISCONTINUED

LOWER MOTOR COVER-DISCONTINUED

22-24

GASKET

GASKET

22-52

GROMMET

GROMMET

22-29

CLIP, FUEL PIPE

CLIP, FUEL PIPE

22-7

SEAL RING

SEAL RING

22-16

SUPPORTING RUBBER, FUEL PIPE

SUPPORTING RUBBER, FUEL PIPE

22-21

GROMMET, SHIFT ROD

GROMMET, SHIFT ROD

22-14

GROMMET

GROMMET

22-17

GROMMET

GROMMET

22-15

GROMMET

GROMMET

22-1

MOUNT RUBBER

MOUNT RUBBER

22-2

SPACER

SPACER

22-4

WASHER

WASHER

22-8

BUSHING

BUSHING

22-39

SCREW

SCREW

22-32

NEUTRAL SWITCH ASSY

NEUTRAL SWITCH ASSY

22-33

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

22-19

GROMMET, THROTTLE SHAFT

GROMMET, THROTTLE SHAFT

22-22

FUEL CONNECTOR, ENGINE SIDE MALE

FUEL CONNECTOR, ENGINE SIDE MALE

22-20

HOLE PLUG

HOLE PLUG

22-34

WASHER 12.5-24-1

WASHER 12.5-24-1

22-18

GROMMET

GROMMET

22-18

GROMMET

GROMMET

22-9

COVER HOOK

COVER HOOK

22-13

GROMMET

GROMMET

22-11

GROMMET

GROMMET

22-27

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
