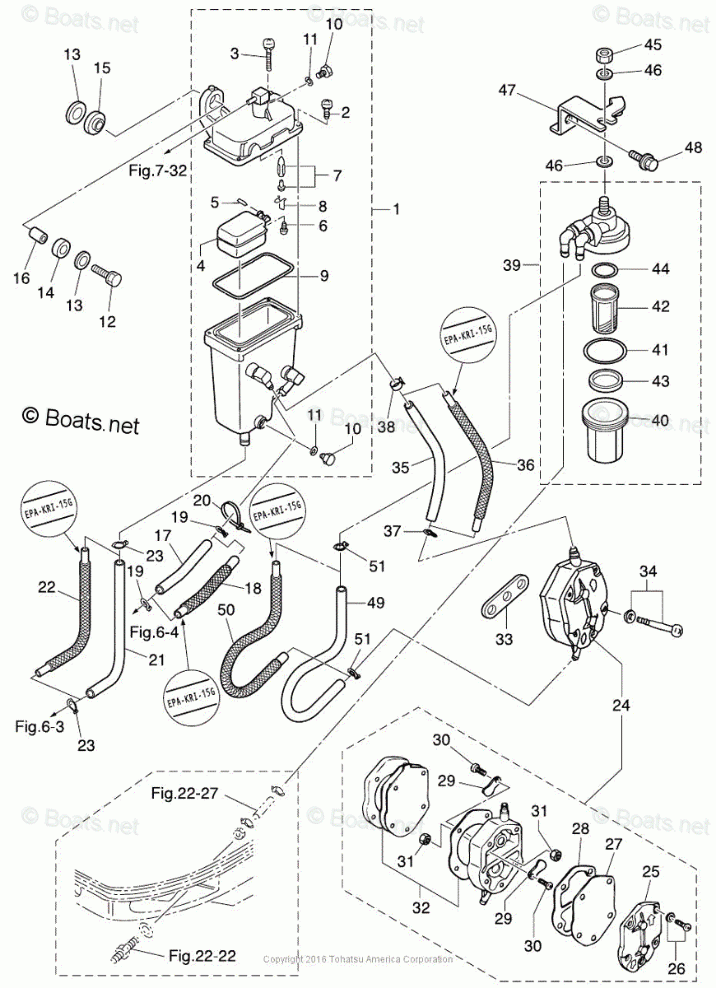

VAPOR SEPARATOR & FUEL LINE

Tohatsu MD50B2
Tohatsu
#oem кодцена
8-25
334040040
FUEL COVER
8-34
9101036640
BOLT
8-38
3GT351430
CLIP, @ 9.4
8-7
3R3032390
FLOAT VALVE
8-43
3T5022290
FLOAT
8-39
3T5022300
FUEL FILTER ASSY
8-4
3T5032300
FLOAT
8-9
3T5032350
O-RING
8-1
3T5101501
VAPOR SEPARATOR ASSY
8-20
3T5843980
LEAD WIRE BAND, 104
8-48
9101036614
BOLT (10 MULTIPLE)
8-12
9101036630
BOLT
8-6
9215030408
SCREW (10 MULTIPLE)
8-47
3GF022390
PLATE
8-3
9215036430
SCREW
8-30
9217220306
SCREW (10 MULTIPLE)
8-26
9225126528
SCREW
8-2
9225316414
SCREW (10 MULTIPLE)
8-45
9301030800
NUT (10 MULTIPLE)
8-31
9302220300
NUT (10 MULTIPLE)
8-46
9401030800
WASHER (10 MULTIPLE)
8-17
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
8-49
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
8-35
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
8-36
3GG021651
FUEL HOSE, LOW PERMEATION
8-22
3GF021701
FUEL HOSE W/PROTECTOR
8-27
334040050
DIAPHRAGM
8-13
346671150
WASHER
8-28
334040070
GASKET B
8-11
336032930
O-RING
8-19
338022150
CLIP, FUEL PIPE
8-37
338022150
CLIP, FUEL PIPE
8-51
338022150
CLIP, FUEL PIPE
8-8
344032440
CLIP
8-10
345032920
DRAIN SCREW
8-33
346049012
GASKET
8-14
346671130
MOUNT RUBBER
8-16
346671141
SPACER
8-24
356040001
FUEL PUMP ASSY.
8-50
3GF021650
FUEL HOSE W/PROTECTOR
8-32
356040300
DIAPHRAGM B SET
8-29
356040440
CHECK VALVE
8-42
3B7022340
FILTER
8-41
3B7022350
O-RING A
8-44
3B7022360
O-RING B
8-40
3B7022370
CUP
8-15
3B7069200
MOUNT RUBBER
8-23
3C7022150
CLIP
8-5
3F3032320
ARM PIN, FLOAT
8-18
3GA021650
HOSE, LOW PERMEATION
8-21
98AB701000
FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
