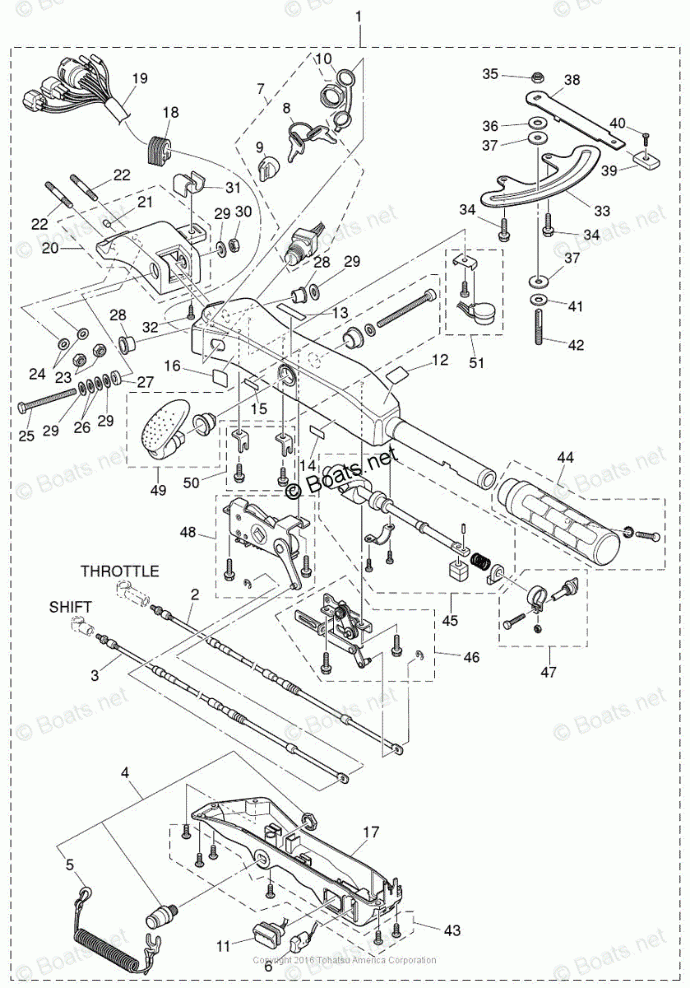

РУМПЕЛЬ

Tohatsu MFS50A
Tohatsu
#oem кодцена
20-40
346663340
STOPPER
20-33
3KY624470
PLATE
20-14
3GF721980
WARNING LAMP DECAL
20-15
3GF722000
STOP SWITCH DECAL
20-7
3GF760200
MAIN SWITCH
20-51
3GF761750
BUZZER KIT
20-9
3GF762050
MAIN SWITCH KEY CAP
20-8
3GF762170
KEY-#943 (ONE KEY)
20-8
3GF762180
KEY-#944 (ONE KEY)
20-8
3GF762190
KEY-#945 (ONE KEY)
20-16
3GF843390
INSTRUCTION DECAL
20-38
3KY624410
FRICTION LEVER
20-2
3KY636000
THROTTLE WIRE-MULTI FUNCTION TILLER F40/50
20-11
3GF710400
PILOT LAMP ASSY
20-3
3KY661960
SHIFT CABLE-MULTI FUNCTION TILLER F40/50
20-19
3KY761190
CORD ASSY
20-1
3KYQ630001
TILLER HANDLE KIT
20-41
3R3624430
WASHER
20-32
3T5064370
TAPPING SCREW 6-16
20-10
3T5760220
CAP , MAIN SWITCH
20-34
3V1601080
BOLT, 6-16 PRE-COATED
20-35
3V5624420
NYLON NUT, CO-PILOT (8MM)
20-22
9153E31040
STUD BOLT
20-23
9304031000
NYLON NUT
20-29
9401E31000
WASHER (10 MULTIPLE)
20-12
3GF720190
THROTTLE DECAL
20-13
3GF675781
SHIFT DECAL
20-5
353068210
SAFETY LANYARD LOCK
20-45
3GF630620
THROTTLE SHAFT KIT
20-4
398068300
STOP SWITCH ASSY W/LANYARD
20-39
3AC630120
GRIP
20-6
3AH726150
PTT SWITCH ASSY
20-20
3AHQ620000
STEERING BRACKET ASSY, F25/30B, F40/50A
20-36
3B7637300
WASHER
20-31
3GF620040
CORD HOLDER
20-42
3GF624450
BOLT, CO-PILOT
20-37
3GF624490
DISK, CO-PILOT
20-27
3GF630250
SPACER
20-47
3GF630320
THROTTLE FRICTION ASSY
20-46
3GF630670
THROTTLE LINK ASSY
20-50
3GF661980
CABLE BRACKET KIT
20-28
3GF631020
BUSHING
20-44
3GF631930
GRIP PARTS KIT
20-25
3GF632010
BOLT
20-43
3GF632050
SCREW SET
20-26
3GF633050
CONICAL SPRING WASHER
20-30
3GF633100
LOCK NUT
20-17
3GF633200
TILLER HANDLE COVER
20-18
3GF636240
GROMMET
20-21
3GF650120
DOWEL PIN, TILLER HANDLE
20-49
3GF661580
SHIFT LEVER KIT
20-48
3GF661600
SHIFT UNIT ASSY
20-24
9401E31000
WASHER (10 MULTIPLE)
