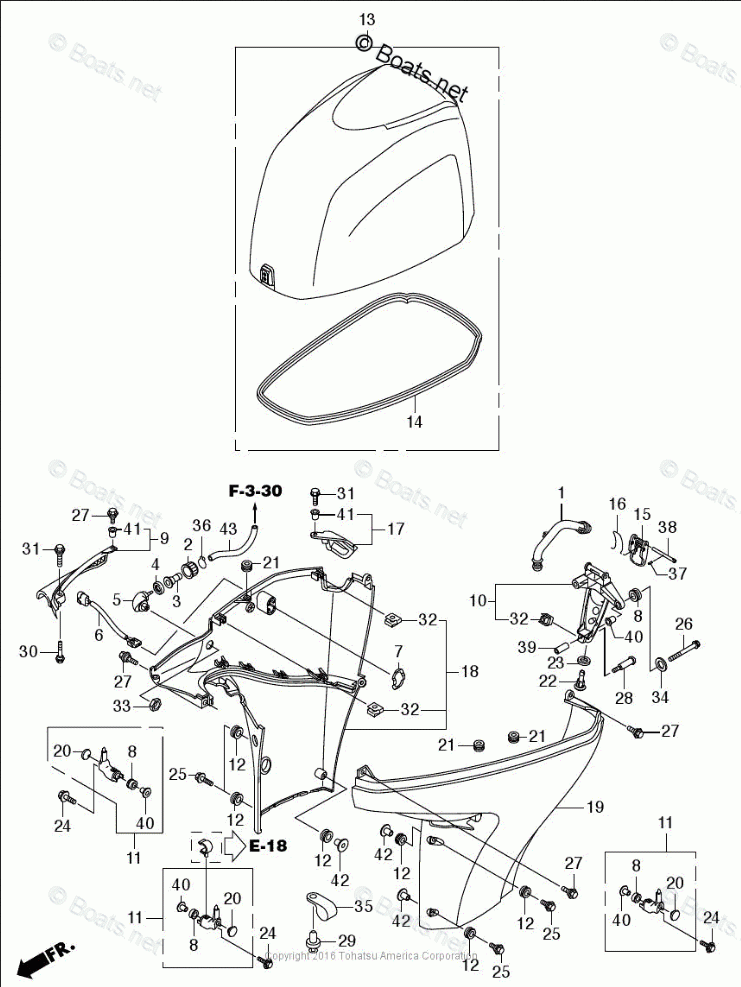

ENGINE COVER + UNDER COVER

Tohatsu BFT75A
Tohatsu
#oem кодцена
F-8-33
H92190302000
NUT, HEX, 16MM
F-8-18
HZY963711010ZC
COVER COMP, ENGINE UNDER RIGHT
F-8-9
HZY940151000ZD
COVER, SEPARATE FRONT
F-8-10
HZY940155010
BRACKET, UNDER COVER
F-8-11
HZY940165010
STOPPER ASSY, ENGINE SIDE
F-8-13
HZY963100030ZC
COVER ASSY, ENGINE (BFT75/90)
F-8-14
HZY963102000
SEAL, ENGINE COVER
F-8-15
HZY963232010
LEVER, FASTENER
F-8-16
HZY963237000
WIRE, FASTENER
F-8-17
HZY963347010ZC
COVER, PLUG MAINTENANCE
F-8-19
HZY963716010ZC
COVER COMP, ENGINE UNDER LEFT
F-8-6
HZY935640003
SWITCH ASSY, POWER TILT
F-8-22
HZY982873000
GROMMET, WATER CHECK
F-8-23
HZY982874000
SEAL, WATER CHECK GROMMET
F-8-25
HZY990103000
BOLT-WASHER, 6X22
F-8-26
HZY990106000
BOLT, FLANGE, 6X55
F-8-28
HZY990113003
BOLT, RR. BRACKET
F-8-37
HZY990751000
PIN, SPRING, 2.0X12
F-8-38
HZY990755000
PIN, 5X59
F-8-39
HZY991552000
COLLAR, DISTANCE (6.5X11X27)
F-8-7
HZY935645000
STAY, POWER TILT SWITCH
F-8-1
HZY918211000
PORT, IDLE EXHAUST
F-8-20
H96577212000
RUBBER, SEAT SIDE
F-8-31
HZW490168000
BOLT, FLANGE, (SH) 6X20
F-8-43
HC950018000160
TUBE, FUEL 8X300
F-8-21
HGJ580103000
GROMMET, ENG COVER
F-8-12
HMB661102631
RUBBER, FENDER MOUNTING
F-8-35
HSB090602003
CLIP, 10.7MM
F-8-8
HZV540102000
GROMMET, UNDER CASE
F-8-29
HZV590127003
SCREW, RIVET, 5X10
F-8-40
HZV591553010
COLLAR, C.D.I. UNIT CASE
F-8-24
HZW290003000
BOLT-WASHER, 6X27 (CT200)
F-8-2
HZY319270000
NUT, WATER MOUTH
F-8-41
HZY691553000
COLLAR, DISTANCE, 6.5X9X5
F-8-3
HZY319271000
JOINT, WATER HOSE
F-8-4
HZY319272000
SEAT, WATER MOUTH
F-8-27
HZY390111000
BOLT, SPECIAL, 6X17
F-8-30
HZY390132000
BOLT, SPECIAL, 6X37
F-8-34
HZY390508000
WASHER, PLAIN, 6MM
F-8-5
HZY619289000
CAP, WATER JOINT
F-8-32
HZY690301000
NUT, CLIP
F-8-36
HZY690651000
CLIP B1, TUBE
F-8-42
HZY991554000
COLLAR, DISTANCE, 6.2X7.5
