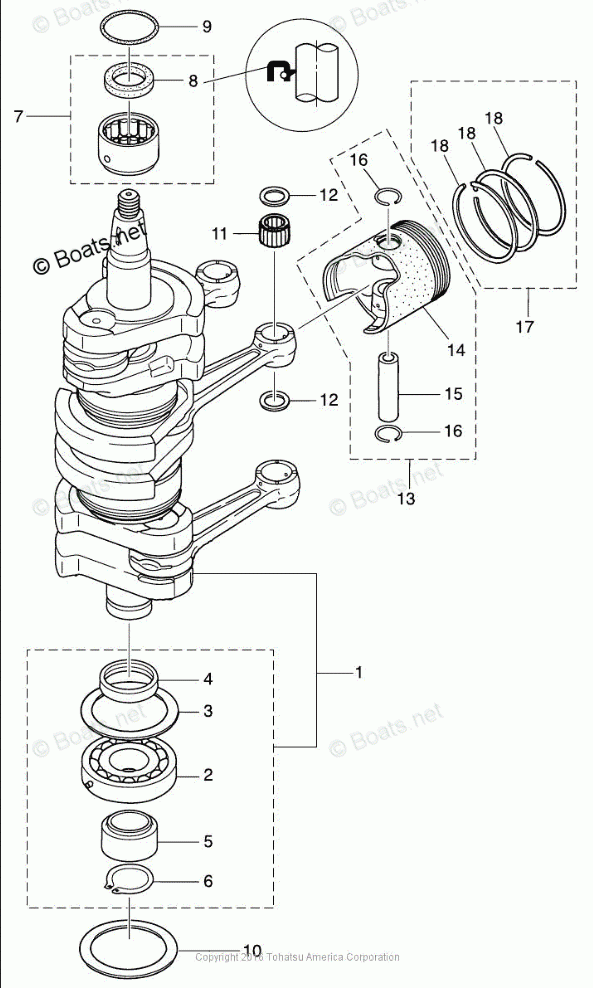

PISTON & CRANK SHAFT

Tohatsu MD90C2
Tohatsu
#oem кодцена
2-9
353001080
O-RING
2-13
3FW871300
PISTON REPAIR KIT (STD) MD75C2/90C2
2-5
3T7001190
SPACER
2-8
3T5001210
OIL SEAL
2-7
3T5001130
MAIN BEARING UPPER
2-12
3T1000460
WASHER, SMALL END BEARING
2-11
3T1000420
NEEDLE BEARING, 23-28-28
2-16
3T1000240
CLIP, PISTON PIN
2-15
3T1000210
PISTON PIN
2-13
3FW871310
PISTON REPAIR KIT (0.5 O/S) MD75C2/90C2
2-17
3FW871240
PISTON RING SET, (0.5 O/S)
2-18
3B7000110
RING 60-90HP 1ST STD
2-17
3FW871230
PISTON RING SET, STD
2-2
3FW001180
BEARING
2-1
3FW000301
CRANKSHAFT ASSY, D75/90C2
2-14
3FW000041
PISTON (0.5 O/S), D75/902
2-14
3FW000011
PISTON (STD), D75/90C2
2-4
3B7001160
SPACER
2-3
3B7001150
WASHER
2-10
3B7001150
WASHER
2-18
3B7000140
RING .5MM 60-90
2-6
9451073500
C-RING
