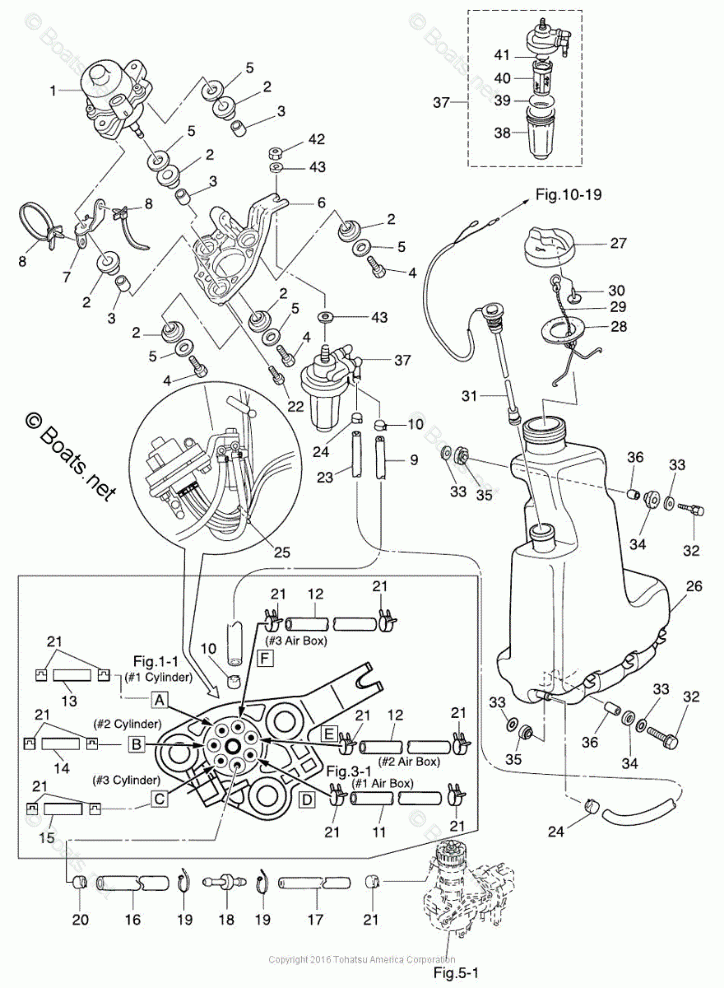

МАСЛЯНЫЙ НАСОС

Tohatsu MD90C2
Tohatsu
#oem кодцена
13-2
345671130
RUBBER MOUNT, LOWER COVER
13-4
9161E30835
BOLT (10 MULTIPLE)
13-19
3T5843980
LEAD WIRE BAND, 104
13-21
3T5843980
LEAD WIRE BAND, 104
13-1
3T7090100
ELECTRIC OIL PUMP
13-6
3T7090720
BRACKET, OIL PUMP
13-18
3T9090760
JOINT, NIPPLE
13-22
9101035630
BOLT (10 MULTIPLE)
13-32
9101E30630
BOLT (10 MULTIPLE)
13-42
9301030800
NUT (10 MULTIPLE)
13-8
3T1843980
LEAD WIRE BAND, 170 (LOCAL PURCHASE)
13-43
9401030800
WASHER (10 MULTIPLE)
13-12
99AA21000
VINYL PIPE (1 EA.=1 METER)
13-14
99AA21000
VINYL PIPE (1 EA.=1 METER)
13-13
99AA21000
VINYL PIPE (1 EA.=1 METER)
13-17
99AA21000
VINYL PIPE (1 EA.=1 METER)
13-11
99AA21000
VINYL PIPE (1 EA.=1 METER)
13-15
99AA21000
VINYL PIPE (1 EA.=1 METER)
13-23
99AA61000
OIL PIPE (1 EA.=1 METER/39.37 INCHES)
13-31
3T5710200
OIL LEVEL SENSOR
13-10
3GT351430
CLIP, @ 9.4
13-34
346671130
MOUNT RUBBER
13-5
3B7637300
WASHER
13-36
346671141
SPACER
13-33
346671150
WASHER
13-25
369843980
WIRE TIE BAND
13-39
3B7022350
O-RING A
13-41
3B7022360
O-RING B
13-38
3B7022370
CUP
13-35
3B7069200
MOUNT RUBBER
13-3
3C7671141
SPACER, 8.4-12-17
13-24
3GT351430
CLIP, @ 9.4
13-37
3C7710300
OIL FILTER ASSY.
13-40
3C7710330
OIL FILTER
13-27
3C8710150
CAP, OIL TANK (FOR 3B7710102M, 3C7710702M, 3T5710100M TANKS)
13-28
3C8710160
GASKET,OIL TANK CAP
13-29
3C8710170
HOOK, OIL TANK CAP
13-30
3C8710180
CHECK VALVE,OIL TANK
13-26
3FW710100
OIL TANK
13-7
3FY761740
STAY
13-9
99AA61000
OIL PIPE (1 EA.=1 METER/39.37 INCHES)
