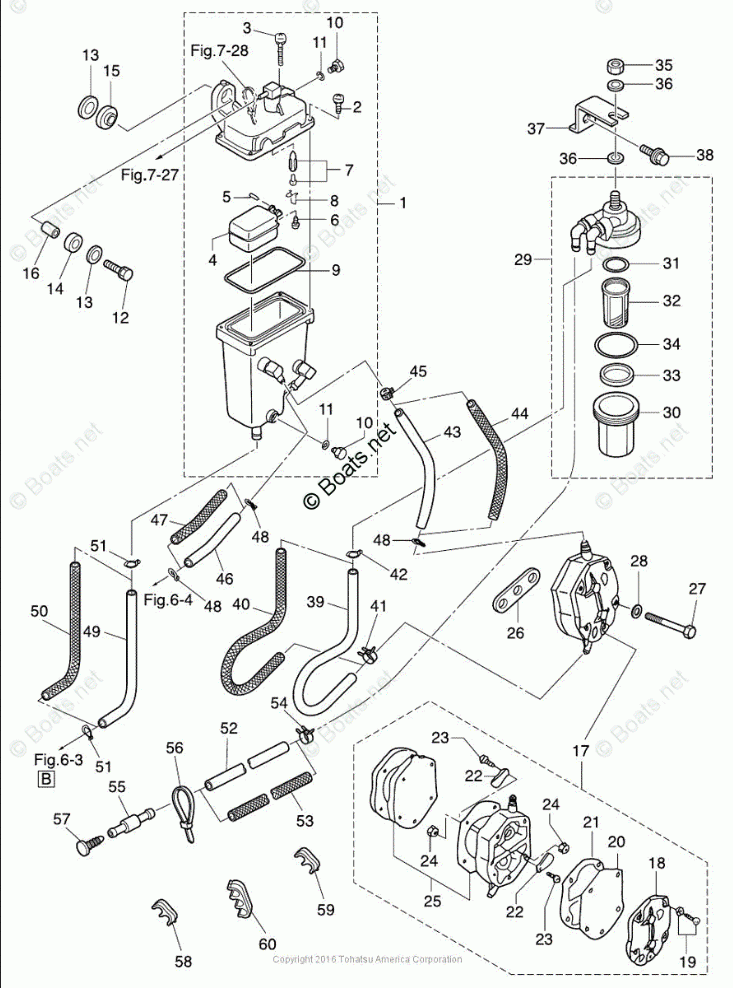

VAPOR SEPARATOR & FUEL LINE
VAPOR SEPARATOR & FUEL LINE

VAPOR SEPARATOR & FUEL LINE

Tohatsu MD90C2

VAPOR SEPARATOR & FUEL LINE

#

oem код

название

цена

8-18

FUEL COVER

FUEL COVER

8-12

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-57

CAP, FUEL HOSE NIPPLE

CAP, FUEL HOSE NIPPLE

8-59

CLAMP

CLAMP

8-58

CLAMP (NOT AVAILABLE)

CLAMP (NOT AVAILABLE)

8-55

FUEL HOSE NIPPLE

FUEL HOSE NIPPLE

8-33

FLOAT

FLOAT

8-37

PLATE, FILTER

PLATE, FILTER

8-4

FLOAT

FLOAT

8-9

O-RING

O-RING

8-1

VAPOR SEPARATOR ASSY

VAPOR SEPARATOR ASSY

8-56

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

8-60

CLAMP

CLAMP

8-27

BOLT

BOLT

8-38

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-7

FLOAT VALVE

FLOAT VALVE

8-6

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

8-3

SCREW

SCREW

8-23

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

8-19

SCREW

SCREW

8-2

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

8-35

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

8-24

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

8-36

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

8-28

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

8-43

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

8-46

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

8-52

FUEL PIPE 7MM (5/16) (1 EA.=1 METER)

FUEL PIPE 7MM (5/16) (1 EA.=1 METER)

8-29

FUEL FILTER ASSY.

FUEL FILTER ASSY.

8-53

FUEL HOSE, LOW PERMEATION MD75/90C2/115A2

FUEL HOSE, LOW PERMEATION MD75/90C2/115A2

8-20

DIAPHRAGM

DIAPHRAGM

8-17

FUEL PUMP ASSY.

FUEL PUMP ASSY.

8-21

GASKET B

GASKET B

8-11

O-RING

O-RING

8-42

CLIP, FUEL PIPE

CLIP, FUEL PIPE

8-48

CLIP, FUEL PIPE

CLIP, FUEL PIPE

8-8

CLIP

CLIP

8-10

DRAIN SCREW

DRAIN SCREW

8-41

CLIP

CLIP

8-54

CLIP

CLIP

8-26

GASKET

GASKET

8-14

MOUNT RUBBER

MOUNT RUBBER

8-16

SPACER

SPACER

8-13

WASHER

WASHER

8-25

DIAPHRAGM B SET

DIAPHRAGM B SET

8-45

CLIP, @ 9.4

CLIP, @ 9.4

8-22

CHECK VALVE

CHECK VALVE

8-32

FILTER

FILTER

8-31

O-RING A

O-RING A

8-34

O-RING B

O-RING B

8-30

CUP

CUP

8-15

MOUNT RUBBER

MOUNT RUBBER

8-51

CLIP

CLIP

8-5

ARM PIN, FLOAT

ARM PIN, FLOAT

8-40

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-50

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-39

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-47

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-44

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

8-49

FUEL PIPE 7MM (5/16) (1 EA.=1 METER)

FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
