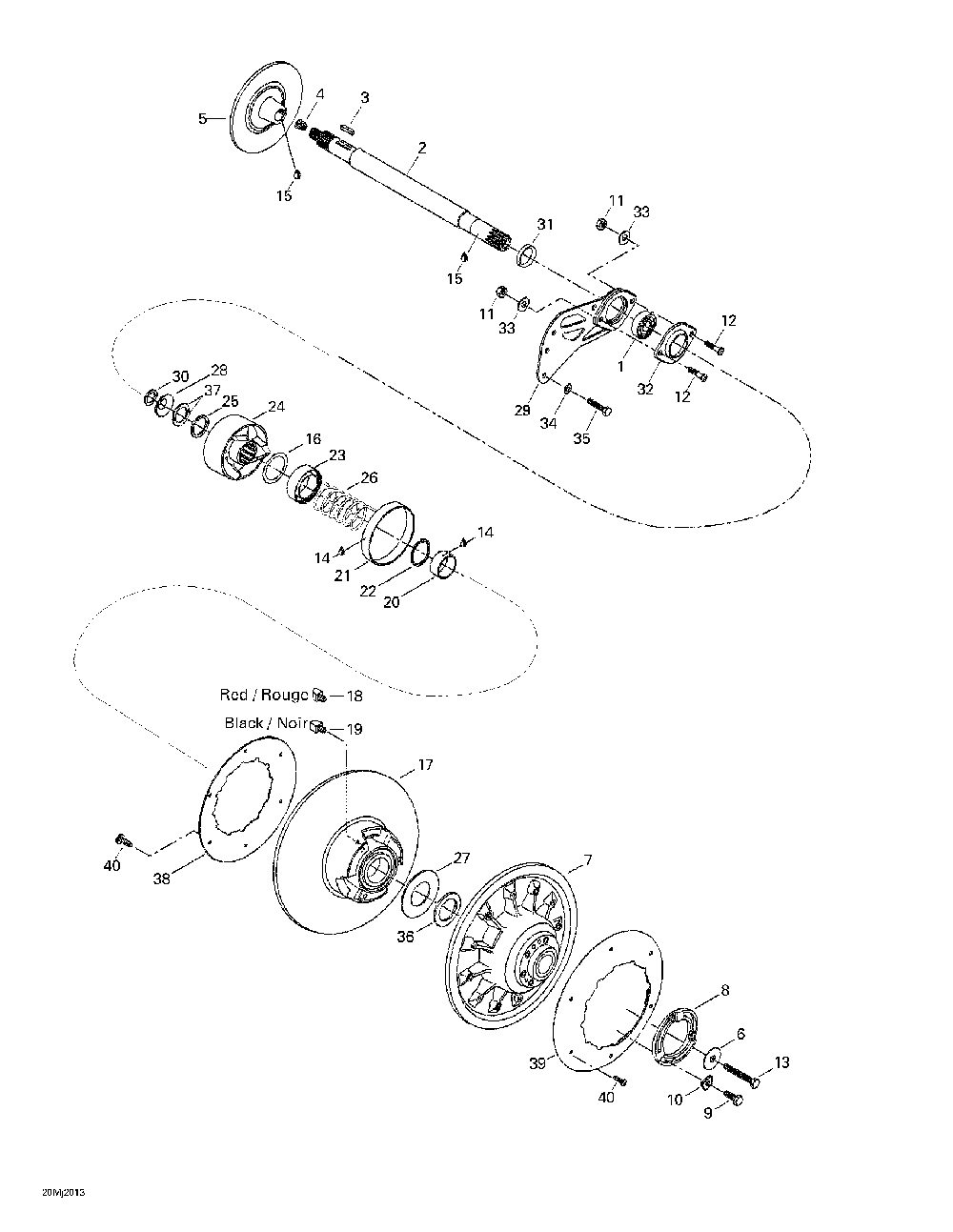

05- drive pulley 2

Ski-Doo (Bombardier) Formula III 700 R
Ski-Doo (Bombardier)
#oem кодцена
1
405408200
Roulement Bille*ball Bearing Formula Iii 700 R.
2
501026300
Arbre Renvoi *shaft-counter Formula Iii 700 R.
3
507021300
Clavette *key Formula Iii 700 R.
4
414784800
Bouchon Liege *cork Formula Iii 700 R.
5
507032456
Disque Usine *disk-mach. Formula Iii 700 R.
6
517302322
Rondelle Force *washer-strength Formula Iii 700 R.
7
417126414
Flasque Fixe As*flange-fix.ass. Includes 7 - 10. Formula Iii 700 R.
8
415005800
Bague Ajustem. *ring-adjust. Formula Iii 700 R.
9
207162544
Screw-hex.cap Din.933 Formula Iii 700 R.
207162244
Screw-hex.cap Din.933 Formula Iii 700 R.
10
415005900
Cale De Reglage*shim-adjust. Formula Iii 700 R.
11
232581414
Nut-stop Elastic Din.985 Formula Iii 700 R.
12
205483046
Screw-socket Bn.hd.iso.7380 Formula Iii 700 R.
13
207087544
Screw-hex.cap Din.931 Formula Iii 700 R.
14
413703100
Loctite 609 *loctite-609 Formula Iii 700 R.
16
417126322
Butee Pivotante*swivel-abutment Formula Iii 700 R.
17
417126318
Flasque Coul.as*flange-slid.as Includes 17 - 22. Formula Iii 700 R.
18
417126373
Gliss.came Arr.*shoe-cam Slide Rear Formula Iii 700 R.
19
417126374
Gliss. Came Av.*shoe-cam Slide Front Formula Iii 700 R.
21
417126902
Coussinet *coussinet Formula Iii 700 R.
22
371911200
Anneau Retenue *circlip Formula Iii 700 R.
23
417126381
Protecteur *guard Formula Iii 700 R.
24
417126385
Came Ass. *cam-ass. Formula Iii 700 R.
25
417126375
Entretoise *spacer Formula Iii 700 R.
26
414978300
Ressort Rappel *spring-release Formula Iii 700 R.
27
504099600
Rondelle Butee *washer-stopper Formula Iii 700 R.
28
417300055
Protecteur *protector Formula Iii 700 R.
29
080039300
Entretoise *spacer Formula Iii 700 R.
30
417300054
Entretoise *spacer Formula Iii 700 R.
31
504149100
Entretoise *spacer Formula Iii 700 R.
32
501026900
Flasque *flange Formula Iii 700 R.
33
234081410
Washer-flat Din.125a Formula Iii 700 R.
34
234161471
Washer-lock Black Din.127b Formula Iii 700 R.
35
207161844
Screw-hex.cap Din.933 Formula Iii 700 R.
36
504112300
Cale Epaisseur *shim Formula Iii 700 R.
37
371911000
Demi-cle *key-half Formula Iii 700 R.
38
417126698
Couvercle *cover Formula Iii 700 R.
39
504151831
Couv.aerodynam.*cover-aerodyn. Formula Iii 700 R.
40
732600032
Screw-forming Torx Plus Gm6174m Formula Iii 700 R.
30
417300265
Entretoise *spacer Formula Iii 700 R.
