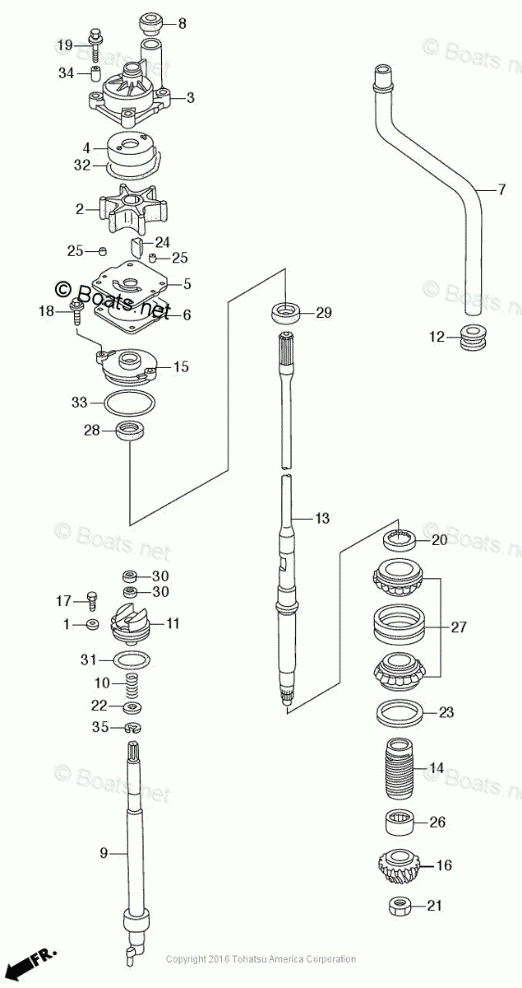

Water Pump + Vertical Shaft

Tohatsu BFT115A
Tohatsu
#oem кодцена
F-4-22
H72390472000
WASHER, PLAIN 12MM
F-4-24
HZW190752B02
KEY, WOODRUFF
F-4-15
HZZ341117000
HOUSING, WATER SEAL
F-4-34
HZY691552000
COLLAR, DISTANCE
F-4-31
HZY691351003
O-RING, 55.6 X 3.5
F-4-28
HZY691251003
SEAL, WATER 23 X 36 X8
F-4-16
HZY641131000
GEAR, PINION
F-4-3
HZY619221A00
HOUSING, IMPELLER
F-4-30
HZY391254003
SEAL, WATER 12X21X6
F-4-10
HZY324318000
SPRING, SHIFT ROD
F-4-18
HZW990105000
BOLT, FLANGE, 6X20
F-4-32
HZW191356B00
O-RING, WATER PUMP
F-4-27
HZW191054B31
BEARING, TAPER ROLLER 30X62X40
F-4-23
HZW190521B00
SHIM D, GEAR (0.50)
F-4-17
H88190105000
BOLT, HEX 6X12
F-4-23
HZW190520B00
SHIM C, GEAR (0.30)
F-4-23
HZW190519B00
SHIM B, GEAR (0.15)
F-4-23
HZW190518B00
SHIM A, GEAR (0.10)
F-4-20
HZW190242000
NUT, LOCK (64MM)
F-4-14
HZW141116B00
SLINGER, OIL
F-4-12
HZW140204000
GROMMET, EXTENSION CASE
F-4-8
HZW119253B01
RING, WATER TUBE SEAL
F-4-2
HZW119210B04
IMPELLER, WATER PUMP (BFT115A/150A)
F-4-25
HZV590756000
DOWEL PIN, 6X10
F-4-33
HMB091359000
O-RING 58.5X3.5
F-4-35
HCO9454010019
E RING 10
F-4-1
H92117936000
WASHER, PIVOT
F-4-29
HZZ391253003
SEAL, WATER 23X36X6
