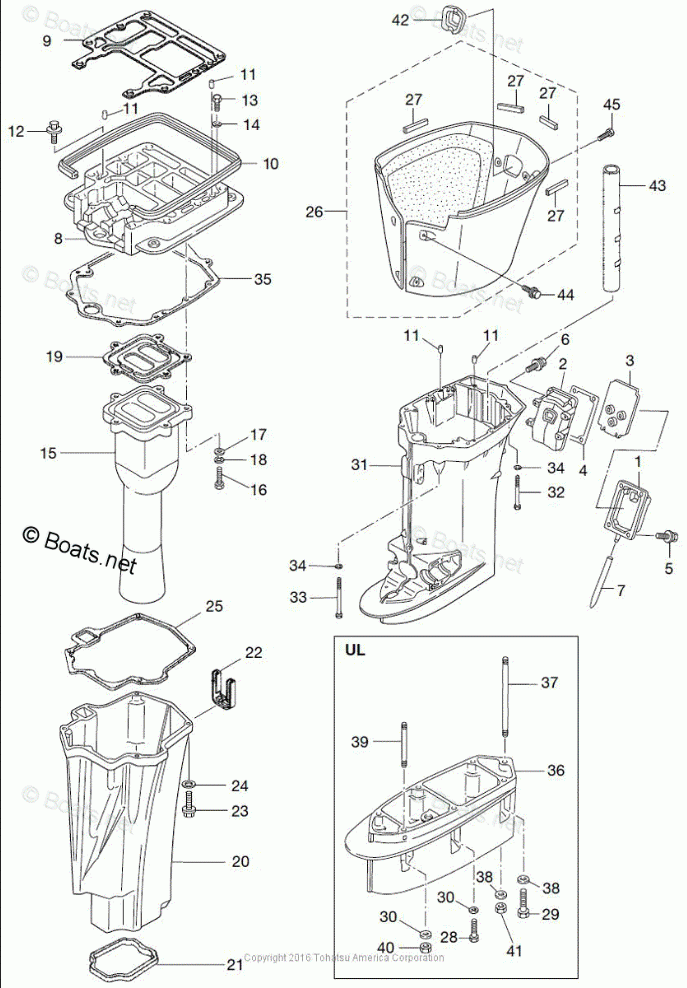

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MD115A2
Tohatsu
#oem кодцена
13-11
345011110
DOWEL PIN 6-12
13-6
9101E35635
BOLT WASHER (10 MULTIPLE)
13-31
3T1Q611920
DRIVE SHAFT HOUSING (L) D115A2
13-26
3T1Q612250
APRON ASSY (AMB)
13-2
3T1Q612410
IDLE EXHAUST PASSAGE (AMB)
13-1
3T1Q612450
COVER, IDLE EXHAUST PASSAGE (AMB)
13-23
9101030830
BOLT (10 MULTIPLE)
13-44
9101E35612
BOLT WASHER (10 MULTIPLE)
13-45
9101E35616
BOLT WASHER (10 MULTIPLE)
13-5
9101E35620
BOLT WASHER (10 MULTIPLE)
13-12
9101E35635
BOLT WASHER (10 MULTIPLE)
13-3
3T1612420
SEPARATION, IDLE EXHAUST PASSAGE
13-39
9153E30825
STUD BOLT
13-16
9161140835
BOLT (10 MULTIPLE)
13-40
9301030800
NUT (10 MULTIPLE)
13-30
9401030800
WASHER (10 MULTIPLE)
13-14
9401030800
WASHER (10 MULTIPLE)
13-17
9401030800
WASHER (10 MULTIPLE)
13-34
9401E31000
WASHER (10 MULTIPLE)
13-24
9402030800
WASHER (10 MULTIPLE)
13-38
9402E31000
WASHER (10 MULTIPLE)
13-4
3T1612440
GASKET, PASSAGE COVER
13-27
3T1612130
APRON SEAL
13-29
3B7600015
BOLT
13-9
3C7013035
GASKET, ENGINE BASE
13-37
3B7611120
STUD BOLT
13-41
3B7611140
NUT
13-25
3B7611812
GASKET
13-21
3B7611821
GROMMET EXHAUST HOUSING
13-43
3B7611860
REVERSE GAS PASSAGE PIPE
13-22
3B7612070
GROMMET, IDLE EXHAUST PORT
13-10
3B7671160
SEAL RUBBER
13-36
3B7Q611100
EXTENSION HOUSING UL (AMB)
13-13
3C7013120
BOLT, 8-50
13-42
3T1612120
APRON GROMMET
13-19
3C7023122
GASKET, EXHAUST PIPE
13-35
3C7610122
GASKET, DRIVE SHAFT HOUSING
13-32
3C7610172
BOLT 10-107
13-33
3C7610182
BOLT 10-120
13-8
3C7Q013011
ENGINE BASE
13-20
3D8611800
EXHAUST HOUSING
13-15
3T1023110
EXHAUST PIPE
13-28
3T1600011
BOLT 8-35
13-7
3T1610970
WATER OUTLET HOSE
13-18
9413030800
SPRING WASHER (10 MULTIPLE)
