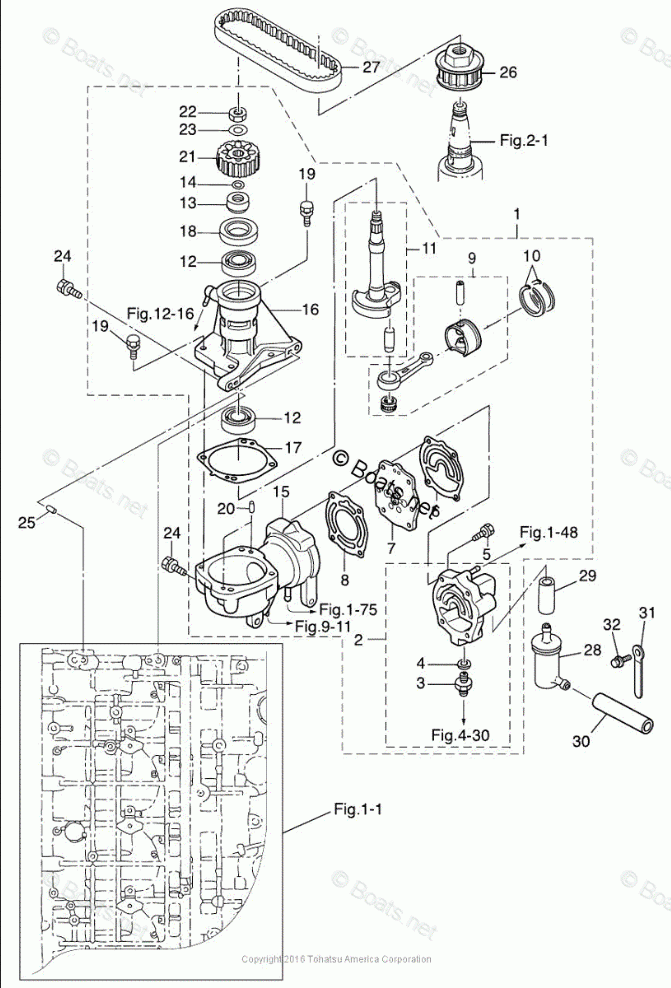

AIR COMPRESSOR

Tohatsu MD115A2

AIR COMPRESSOR

#

oem код

название

цена

5-22

MAGNETO NUT

MAGNETO NUT

5-9

CONNECTING ROD, AIR COMPRESSOR PISTON

CONNECTING ROD, AIR COMPRESSOR PISTON

5-29

HOSE

HOSE

5-12

BEARING

BEARING

5-5

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

5-19

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

5-24

BOLT W/SPRING WASHER

BOLT W/SPRING WASHER

5-32

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

5-14

O-RING

O-RING

5-18

OIL SEAL

OIL SEAL

5-4

WASHER, METAL

WASHER, METAL

5-3

ADAPTER, HOSE JOINT

ADAPTER, HOSE JOINT

5-16

HOUSING, COMPRESSOR (MD75-90C2/MD1115A2)

HOUSING, COMPRESSOR (MD75-90C2/MD1115A2)

5-15

CYLINDER, COMPRESSOR-D75C2/90C2/115A2-AIR COMP

CYLINDER, COMPRESSOR-D75C2/90C2/115A2-AIR COMP

5-11

CRANK SHAFT, AIR COMPRESSOR

CRANK SHAFT, AIR COMPRESSOR

5-21

DRIVEN PULLEY

DRIVEN PULLEY

5-20

DOWEL PIN,4-10

DOWEL PIN,4-10

5-27

DRIVE BELT

DRIVE BELT

5-26

DRIVE PULLEY

DRIVE PULLEY

5-17

GASKET, COMPRESSOR HOUSING

GASKET, COMPRESSOR HOUSING

5-13

COLLAR, 13.5-25-13

COLLAR, 13.5-25-13

5-10

PISTON RING, COMPRESSOR

PISTON RING, COMPRESSOR

5-8

GASKET, VALVE SEAT

GASKET, VALVE SEAT

5-6

GASKET, COMPRESSOR HEAD

GASKET, COMPRESSOR HEAD

5-2

COMPRESSOR HEAD (WITH NIPPLE), D115A2

COMPRESSOR HEAD (WITH NIPPLE), D115A2

5-1

AIR COMPRESSOR. D115A2

AIR COMPRESSOR. D115A2

5-7

REED VALVE ASSY, D75C2/90C2/115A2-AIR COMP

REED VALVE ASSY, D75C2/90C2/115A2-AIR COMP

5-28

AIR FILTER MD40/50B2/75/90C2/115A2 (TLDI)

AIR FILTER MD40/50B2/75/90C2/115A2 (TLDI)

5-23

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

5-31

CLAMP

CLAMP

5-25

DOWEL PIN 6-12

DOWEL PIN 6-12

5-30

HOSE

HOSE
