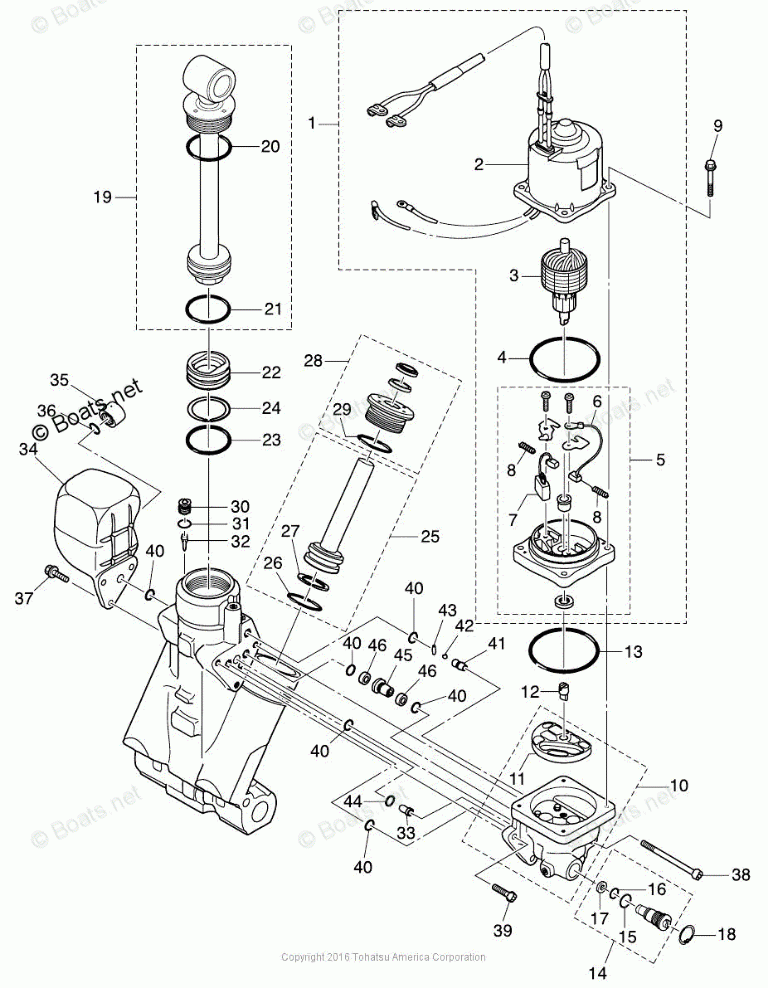

POWER TRIM & TILT

Tohatsu MD115A2
Tohatsu
#oem кодцена
17-4
353771821
O-RING, MOTOR
17-11
3E0774340
FILTER B
17-25
3E0773880
PISTON, TRIM
17-28
3E0773950
ROD GUIDE SUB ASSY, TRIM
17-29
3E0773980
O-RING, ROD GUIDE 120/140
17-16
3E0774070
O-RING
17-17
3E0774080
BACK-UP RING
17-10
3E0774301
PUMP
17-38
3E0774311
BOLT
17-39
3E0774320
BOLT
17-45
3E0774530
VALVE SEAT
17-19
3E0773651
PISTON ROD ASSY, TILT
17-46
3E0774560
FILTER
17-30
3E0774720
PLUG
17-32
3E0774750
FILTER
17-33
3E0774790
ORIFICE
17-41
3E0775570
ORIFICE
17-42
3E0775580
BALL
17-43
3E0775590
PIN
17-1
3T1771800
MOTOR ASSY (PTT)
17-2
3T1771950
YOKE ASSY
17-20
3E0773830
O-RING, PISTON ROD, PTT 120/140
17-9
3E0771991
BOLT, TRIM MOTOR
17-7
353771910
BREAKER
17-15
3B7774110
O-RING
17-13
3B7771670
O-RING
17-44
3B7771690
O-RING
17-31
3B7771790
O-RING
17-23
3B7773750
O-RING
17-21
3B7773750
O-RING
17-24
3B7773760
BACK-UP RING
17-22
3B7773770
FREE PISTON
17-26
3B7773920
O-RING
17-27
3B7773930
BACK UP RING
17-37
3E0771590
BOLT
17-5
3E0771920
BRACKET ASSY
17-12
3E0771630
COUPLING, PUMP
17-34
3E0771650
OIL TANK RESERVOIR
17-40
3E0771670
O-RING
17-35
3E0771680
CAP
17-36
3E0771690
O-RING
17-14
3E0771761
MANUAL VALVE
17-6
3E0771830
BRUSH
17-8
3E0771840
SPRING, BRUSH-NOT FOR SALE
17-3
3E0771900
ARMATURE ASSY-NOT FOR SALE
17-18
9450031800
C-RING
