BOTTOM COWL Каталог оригинальных запчастей для лодочных моторов Tohatsu MD115A2 (2016)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

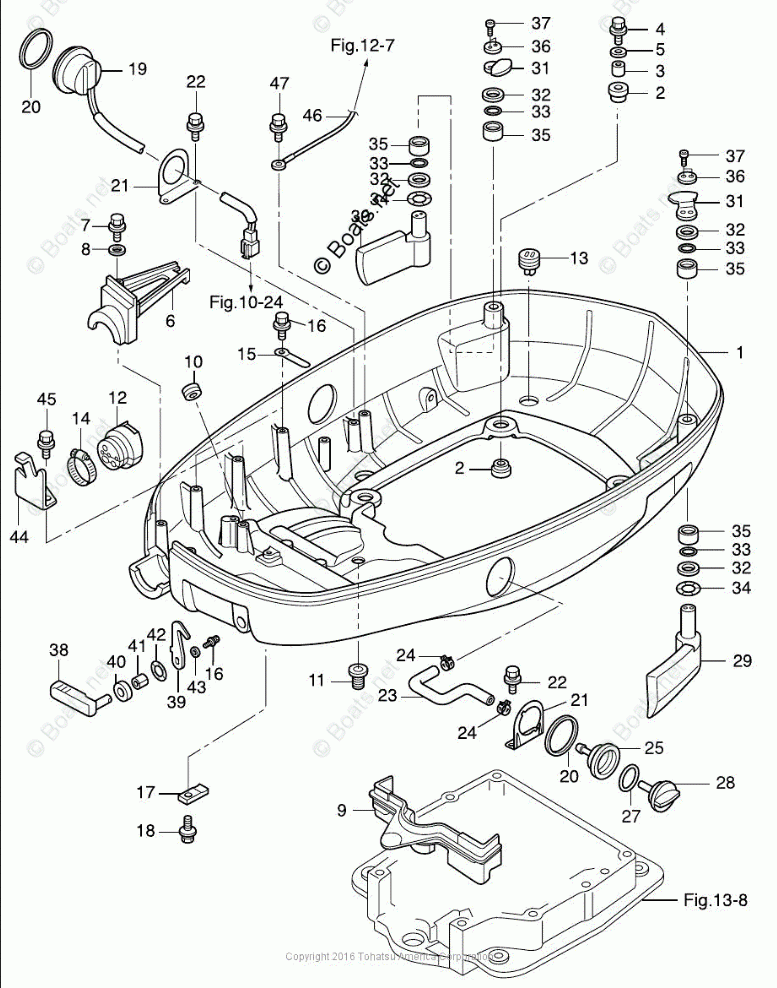

BOTTOM COWL

Tohatsu MD115A2

BOTTOM COWL

#

oem код

название

цена

18-41

BUSHING

BUSHING

18-1

LOWER MOTOR COVER, D75/90C2D115A (AMB)

LOWER MOTOR COVER, D75/90C2D115A (AMB)

18-13

GROMMET

GROMMET

18-29

HOOK LEVER ASSY (LEFT)

HOOK LEVER ASSY (LEFT)

18-30

HOOK LEVER ASSY (RIGHT)

HOOK LEVER ASSY (RIGHT)

18-25

FLUSHING CONNECTOR

FLUSHING CONNECTOR

18-28

CAP, FLUSHING CONNECTOR

CAP, FLUSHING CONNECTOR

18-23

FLUSHING HOSE

FLUSHING HOSE

18-21

BRACKET, PTT SWITCH

BRACKET, PTT SWITCH

18-12

GROMMET

GROMMET

18-6

CORD CLAMP (AMB)

CORD CLAMP (AMB)

18-31

COVER HOOK

COVER HOOK

18-16

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

18-47

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

18-45

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

18-7

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

18-4

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

18-18

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

18-22

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

18-37

BOLT

BOLT

18-8

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

18-36

WASHER

WASHER

18-32

WASHER

WASHER

18-40

SEAL RING

SEAL RING

18-10

GROMMET

GROMMET

18-11

GROMMET, SHIFT ROD

GROMMET, SHIFT ROD

18-2

RUBBER MOUNT, LOWER COVER

RUBBER MOUNT, LOWER COVER

18-15

CLAMP

CLAMP

18-19

PTT SWITCH

PTT SWITCH

18-5

WASHER

WASHER

18-44

CABLE CLIP

CABLE CLIP

18-3

SPACER, 8.4-12-17

SPACER, 8.4-12-17

18-9

GROMMET A, LOWER COVER

GROMMET A, LOWER COVER

18-17

CLAMP

CLAMP

18-35

BUSHING

BUSHING

18-34

WAVE WASHER

WAVE WASHER

18-20

GASKET, PTT SWITCH NS70B, D40/50B2

GASKET, PTT SWITCH NS70B, D40/50B2

18-46

GROUNDING WIRE

GROUNDING WIRE

18-14

CLAMP

CLAMP

18-27

O-RING

O-RING

18-43

WASHER, 6-16-1.5

WASHER, 6-16-1.5

18-38

HOOK LEVER

HOOK LEVER

18-39

COVER, HOOK

COVER, HOOK

18-24

CLIP, 17.8

CLIP, 17.8

18-33

O-RING, 3.5-18

O-RING, 3.5-18

18-42

WAVE WASHER (10 MULTIPLE)

WAVE WASHER (10 MULTIPLE)
