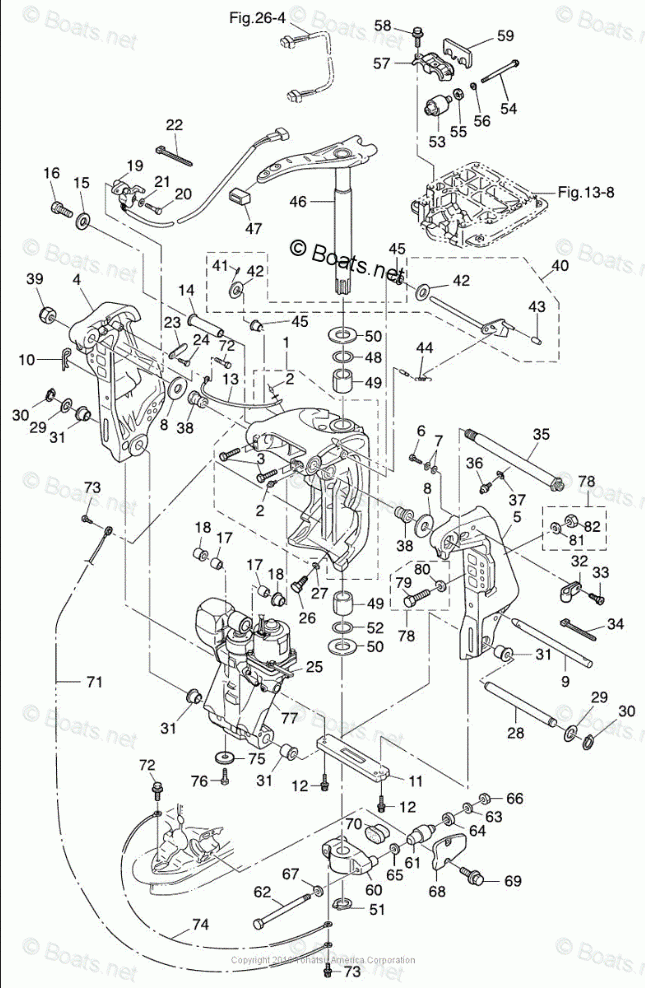

BRACKET Каталог оригинальных запчастей для лодочных моторов Tohatsu MD115A2 (2016)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

BRACKET

Tohatsu MD115A2

BRACKET

#

oem код

название

цена

16-2

GREASE NIPPLE

GREASE NIPPLE

16-69

BOLT

BOLT

16-22

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

16-77

POWER TRIM TILT ASSY, D115

POWER TRIM TILT ASSY, D115

16-19

TRIM SENDER (2-WIRE)

TRIM SENDER (2-WIRE)

16-42

WASHER

WASHER

16-21

WASHER, 6-16-1.5

WASHER, 6-16-1.5

16-25

CLAMP

CLAMP

16-23

CLAMP

CLAMP

16-1

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

16-40

TILT STOPPER ASSY

TILT STOPPER ASSY

16-5

STERN BRACKET L (AMB)

STERN BRACKET L (AMB)

16-4

STERN BRACKET R (AMB)

STERN BRACKET R (AMB)

16-31

BUSHING 22-25.4-23.5

BUSHING 22-25.4-23.5

16-28

CYLINDER PIN LOWER

CYLINDER PIN LOWER

16-18

BUSHING 18-20-10.5

BUSHING 18-20-10.5

16-44

SPRING, TILT STOPPER

SPRING, TILT STOPPER

16-35

BRACKET BOLT ASSY.

BRACKET BOLT ASSY.

16-34

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

16-43

TILT STOPPER GRIP

TILT STOPPER GRIP

16-9

THRUST ROD

THRUST ROD

16-33

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

16-51

C-RING

C-RING

16-30

C-RING

C-RING

16-67

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

16-7

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

16-27

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

16-81

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

16-37

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

16-6

BOLT

BOLT

16-16

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

16-58

BOLT WASHER

BOLT WASHER

16-76

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

16-3

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

16-73

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

16-72

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

16-24

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

16-12

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

16-20

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

16-38

BUSHING, 25.6-28.6-40

BUSHING, 25.6-28.6-40

16-8

WASHER

WASHER

16-36

GREASE NIPPLE

GREASE NIPPLE

16-45

COLLAR

COLLAR

16-48

SEAL RING-NO LONGER AVAILABLE

SEAL RING-NO LONGER AVAILABLE

16-10

RETAINER

RETAINER

16-47

DAMPER RUBBER B

DAMPER RUBBER B

16-66

NUT

NUT

16-74

GROUND WIRE

GROUND WIRE

16-13

GROUND WIRE

GROUND WIRE

16-75

ANODE, ZINC (ROUND)

ANODE, ZINC (ROUND)

16-63

WASHER, 13-34-3

WASHER, 13-34-3

16-49

BUSHING

BUSHING

16-80

WASHER, 13-34-3

WASHER, 13-34-3

16-62

BOLT

BOLT

16-65

WASHER

WASHER

16-61

MOUNT RUBBER LOWER

MOUNT RUBBER LOWER

16-29

WASHER

WASHER

16-39

BRACKET NUT

BRACKET NUT

16-32

CORD CLAMP A

CORD CLAMP A

16-15

WASHER, RACHET

WASHER, RACHET

16-52

O-RING

O-RING

16-50

THRUST PLATE

THRUST PLATE

16-17

BUSHING

BUSHING

16-79

BOLT, STERN BRACKET

BOLT, STERN BRACKET

16-14

CYLINDER PIN UPPER

CYLINDER PIN UPPER

16-78

RIGGING BOLT SET

RIGGING BOLT SET

16-71

GROUND WIRE

GROUND WIRE

16-46

STEERING SHAFT (AMB)

STEERING SHAFT (AMB)

16-60

MOUNT BRACKET

MOUNT BRACKET

16-57

MOUNT HOLDING PLATE (UPPER)

MOUNT HOLDING PLATE (UPPER)

16-82

NUT

NUT

16-59

DAMPER, UPPER MOUNT RUBBER

DAMPER, UPPER MOUNT RUBBER

16-26

BOLT

BOLT

16-64

DAMPER RUBBER, 21-36-5

DAMPER RUBBER, 21-36-5

16-55

DAMPER RUBBER, 21-36-5

DAMPER RUBBER, 21-36-5

16-70

DAMPER RUBBER

DAMPER RUBBER

16-56

WASHER,12.2-36-3

WASHER,12.2-36-3

16-54

BOLT, UPPER MOUNT RUBBER

BOLT, UPPER MOUNT RUBBER

16-53

UPPER MOUNT RUBBER

UPPER MOUNT RUBBER

16-11

ANODE

ANODE

16-68

CAP, LOWER MOUNT RUBBER (AMB)

CAP, LOWER MOUNT RUBBER (AMB)

16-41

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)
