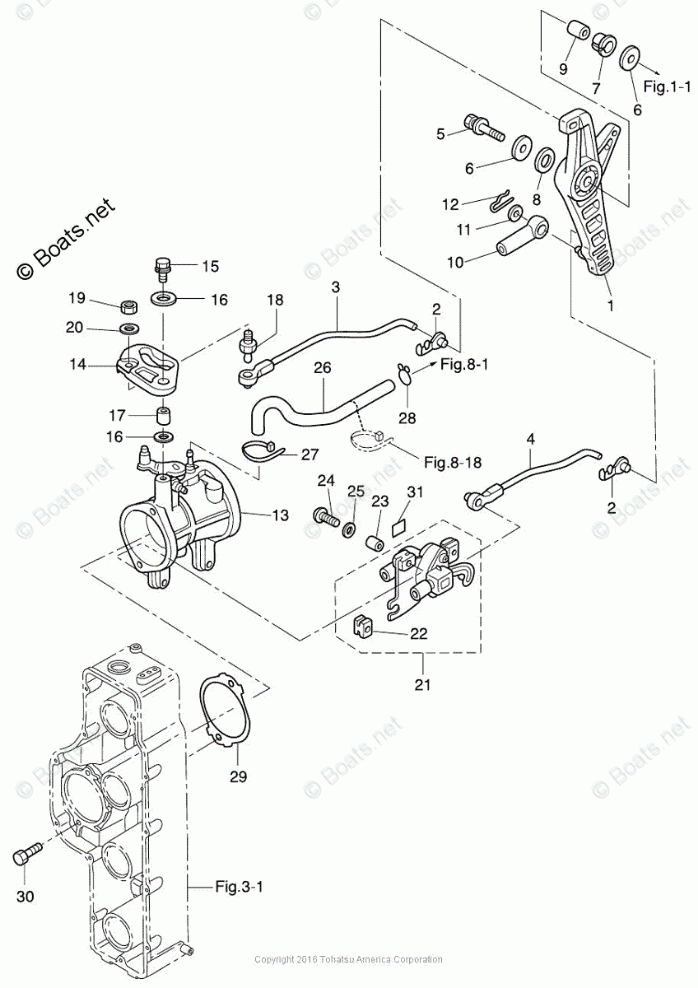

THROTTLE Каталог оригинальных запчастей для лодочных моторов Tohatsu MD115A2 (2016)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

THROTTLE

Tohatsu MD115A2

THROTTLE

#

oem код

название

цена

7-28

LOCK RING

LOCK RING

7-22

MOUNT RUBBER

MOUNT RUBBER

7-12

R-PIN (10 MULTIPLE)

R-PIN (10 MULTIPLE)

7-20

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

7-19

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

7-24

SCREW

SCREW

7-5

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-15

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-3

THROTTLE LINK ROD

THROTTLE LINK ROD

7-4

TPS LINK

TPS LINK

7-27

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

7-31

TPS DECAL

TPS DECAL

7-25

WASHER

WASHER

7-23

COLLAR

COLLAR

7-21

TPS (THROTTLE POSITION SENSOR) ASSY

TPS (THROTTLE POSITION SENSOR) ASSY

7-14

THROTTLE CAM

THROTTLE CAM

7-18

BALL JOINT B

BALL JOINT B

7-30

BOLT, 8-25 PRE-COATED

BOLT, 8-25 PRE-COATED

7-29

GASKET, THROTTLE BODY

GASKET, THROTTLE BODY

7-13

THROTTLE BODY, MD115A2

THROTTLE BODY, MD115A2

7-17

COLLAR, BRACKET

COLLAR, BRACKET

7-1

ADVANCER ARM

ADVANCER ARM

7-10

CABLE JOINT

CABLE JOINT

7-2

ROD SNAP

ROD SNAP

7-9

COLLAR

COLLAR

7-8

WASHER 12.5-24-1

WASHER 12.5-24-1

7-6

WASHER

WASHER

7-7

BUSHING

BUSHING

7-11

WASHER

WASHER

7-16

WASHER

WASHER

7-26

FUEL PIPE 3MM 1/8 (1 EA.=1 METER)

FUEL PIPE 3MM 1/8 (1 EA.=1 METER)
