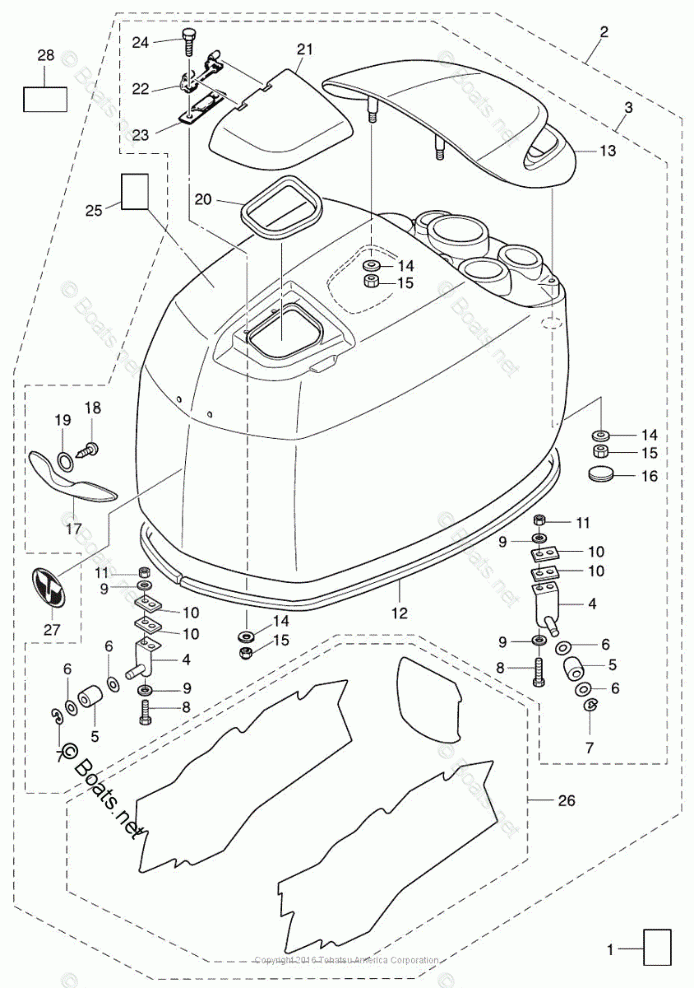

TOP COWL

Tohatsu MD115A2
Tohatsu
#oem кодцена
20-19
345051221
WASHER, RACHET
20-17
3T1676600
HANDLE, UPPER MOTOR COVER
20-6
9401030600
WASHER (10 MULTIPLE)
20-9
9401030500
WASHER (10 MULTIPLE)
20-15
9304030600
NYLON NUT
20-11
9304030500
NYLON NUT (10 MULTIPLE)
20-24
9101030616
BOLT (10 MULTIPLE)
20-8
9101030525
BOLT (10 MULTIPLE)
20-18
3T5064370
TAPPING SCREW 6-16
20-3
3T1Q676400
UPPER MOTOR COVER, MD115A2 (SUB-ASSY)
20-13
3T1Q675210
TILT HANDLE (AMB)
20-21
3T1Q672090
FILLER LID
20-1
3T1720430
OIL CAUTION DECAL
20-10
3T1675160
COVER STAY PLATE
20-28
3AC721850
CAUTION DECAL
20-4
3T1675110
COVER STAY ASSY
20-20
3T1672130
SEAL, MOTOR COVER
20-23
3T1672120
SPRING, FILLER LID
20-5
3R0675170
ROLLER
20-27
3KY675310
FRONT DECAL
20-2
3HKQ676455
UPPER MOTOR COVER, MD115A2 (AMB) 2015 (W/ FILLER LID)
20-26
3HK878021
DECAL SET, MD115A2
20-12
3HK675010
RUBBER SEAL, UMC, NEW (L=2150mm)
20-16
3F3726180
GROMMET, POWER TRIM TILT SWITCH
20-14
3C8663080
WASHER
20-25
3C7721803
CAUTION LABEL
20-22
3B7672110
HINGE FILER LID
20-7
9453030500
E-RING (10 MULTIPLE)
