GEAR CASE (DRIVE SHAFT) MWD50B2 Каталог оригинальных запчастей для лодочных моторов Tohatsu MD40B2 (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2015
MD40B2

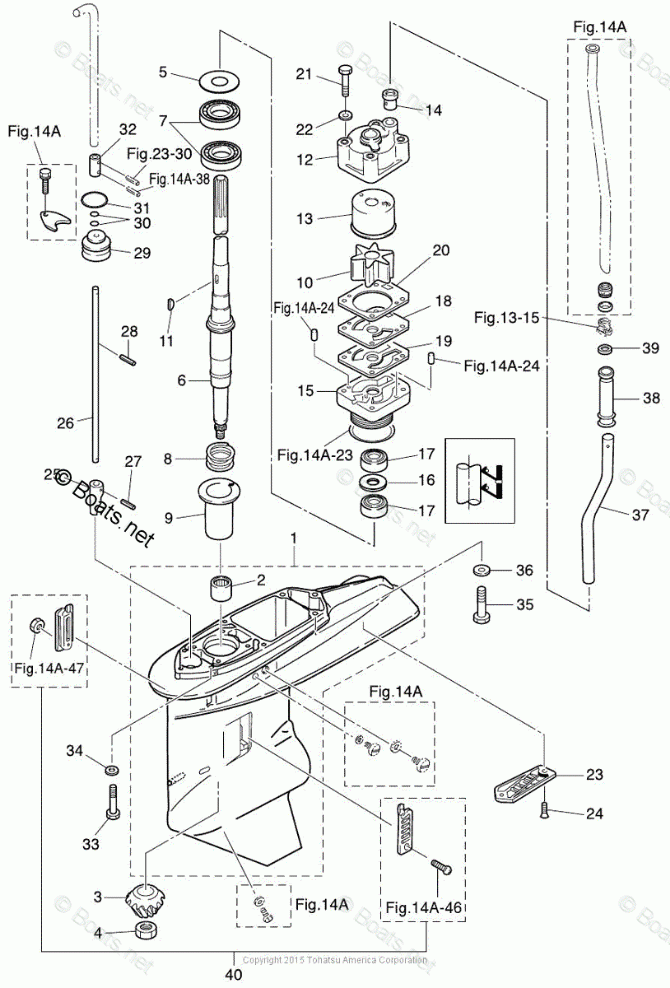

GEAR CASE (DRIVE SHAFT) MWD50B2
GEAR CASE (DRIVE SHAFT) MWD50B2

GEAR CASE (DRIVE SHAFT) MWD50B2

Tohatsu MD40B2

GEAR CASE (DRIVE SHAFT) MWD50B2

#

oem код

название

цена

14B-39

COLLAR

COLLAR

14B-29

BUSHING CAM ROD

BUSHING CAM ROD

14B-28

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

14B-36

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

14B-34

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

14B-22

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

14B-24

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

14B-21

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

14B-33

BOLT 8-35

BOLT 8-35

14B-7

BALL BEARING 6205R

BALL BEARING 6205R

14B-18

GUIDE PLATE, CHROME

GUIDE PLATE, CHROME

14B-15

LOWER PUMP CASE

LOWER PUMP CASE

14B-16

SPACER

SPACER

14B-3

GEAR B (PINION)

GEAR B (PINION)

14B-17

OIL SEAL 22-37-8

OIL SEAL 22-37-8

14B-23

SUB WATER STRAINER-NS60/70B

SUB WATER STRAINER-NS60/70B

14B-31

O-RING

O-RING

14B-30

O-RING A

O-RING A

14B-13

LINER, CHROME

LINER, CHROME

14B-19

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

14B-11

IMPELLER KEY

IMPELLER KEY

14B-10

IMPELLER (60/70B-C,90A)

IMPELLER (60/70B-C,90A)

14B-20

GASKET, PUMP CASE

GASKET, PUMP CASE

14B-12

PUMP CASE UPPER

PUMP CASE UPPER

14B-14

SEAL RUBBER LOWER WATER PIPE

SEAL RUBBER LOWER WATER PIPE

14B-40

WATER STRAINER SET

WATER STRAINER SET

14B-35

BOLT

BOLT

14B-9

GUIDE

GUIDE

14B-8

SPRING

SPRING

14B-4

NUT

NUT

14B-5

SHIM B KIT

SHIM B KIT

14B-2

BEARING

BEARING

14B-27

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)
