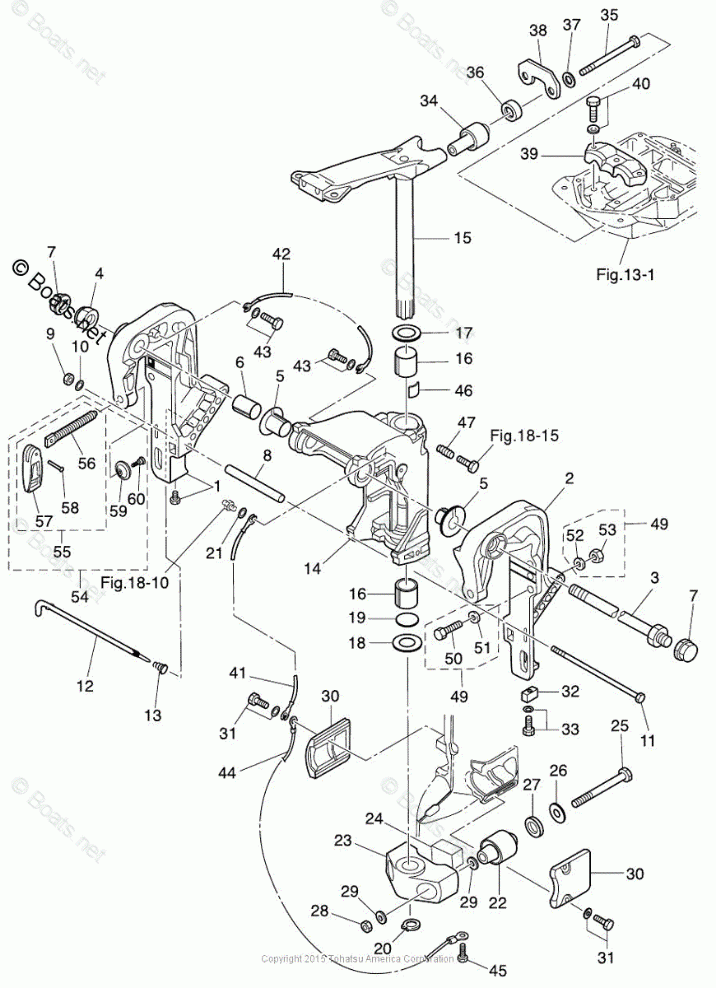

BRACKET (1) MANUAL TILT (EFO/EPO MODEL)

Tohatsu MD40B2
Tohatsu
#oem кодцена
16-59
332621011
PAD, CLAMP SCREW (THREADED STYLE)
16-54
3E3Q621050
CLAMP SCREW KIT
16-49
3C8721200
RIGGING BOLT SET
16-39
3C8Q613410
MOUNT HOLDING PLATE, UPPER (AMB)
16-30
3C8Q613420
MOUNT HOLDING PLATE, LOWER (AMB)
16-23
3C8Q614113
MOUNT BRACKET (AMB)
16-1
3C8Q621120
STERN BRACKET RIGHT (AMB)
16-2
3C8Q621130
STERN BRACKET LEFT (AMB)
16-14
3C8Q623102
SWIVEL BRACKET (AMB)
16-34
3E3613012
UPPER MOUNT RUBBER
16-36
3E3613330
DAMPER RUBBER
16-38
3E3613350
UPPER LOCK PLATE
16-56
3E3621060
CLAMP SCREW
16-15
3E3Q620100
STEERING SHAFT ASSY, MANUAL (AMB)
16-55
3E3Q621080
CLAMP SCREW ASSY
16-6
3C8621320
BUSHING
16-19
3H8624150
O-RING
16-33
9101035630
BOLT (10 MULTIPLE)
16-45
9101E35612
BOLT WASHER (10 MULTIPLE)
16-43
9101E35612
BOLT WASHER (10 MULTIPLE)
16-31
9101E35620
BOLT WASHER (10 MULTIPLE)
16-40
9101E35835
BOLT WASHER
16-9
9301030800
NUT (10 MULTIPLE)
16-28
9304031200
NYLON NUT
16-21
9401030600
WASHER (10 MULTIPLE)
16-10
9401030800
WASHER (10 MULTIPLE)
16-52
9401031200
WASHER (10 MULTIPLE)
16-29
9402E31200
WASHER (10 MULTIPLE)
16-41
3C8623961
GROUND WIRE
16-12
3C8621211
THRUST ROD
16-57
332Q621021
HANDLE, CLAMP SCREW
16-42
398623961
GROUND WIRE
16-13
345621222
SPRING, THRUST ROD
16-16
345624170
BUSHING, STEERING SHAFT
16-46
345624410
FRICTION PLATE
16-4
346621241
BRACKET NUT
16-7
346621270
BRACKET CAP
16-47
346624211
SPRING
16-18
346624241
THRUST PLATE LOWER
16-5
349621260
BUSHING BRACKET BOLT
16-35
353613071
BOLT, UPPER
16-51
353613340
WASHER, 13-34-3
16-26
353613340
WASHER, 13-34-3
16-37
353613350
WASHER
16-17
3A0624232
UPPER THRUST PLATE
16-11
3C8621201
BOLT
16-44
3A3623961
GROUND WIRE
16-3
3AC621910
SWIVEL BRACKET BOLT
16-32
3B7602181
ANODE
16-27
3C7613380
DAMPER RUBBER, 21-36-5
16-50
3C7621332
BOLT, STERN BRACKET
16-53
3C7621391
NUT
16-22
3C8613021
MOUNT RUBBER, LOWER
16-25
3C8613211
BOLT
16-24
3C8613360
DAMPER RUBBER
16-58
3C8621042
RIVET
16-60
3C8621070
SHOULDER BOLT
16-8
3C8621170
SPACER
16-20
9451032500
C-RING
