THROTTLE Каталог оригинальных запчастей для лодочных моторов Tohatsu MD40B2 (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

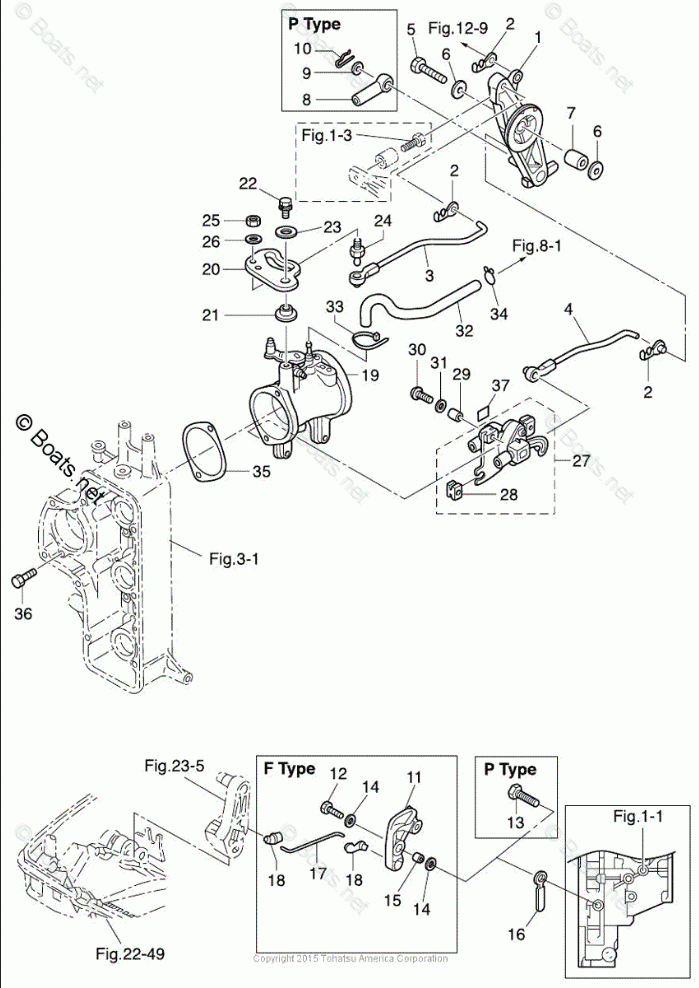

THROTTLE

Tohatsu MD40B2

THROTTLE

#

oem код

название

цена

7-34

LOCK RING

LOCK RING

7-13

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-31

WASHER

WASHER

7-3

THROTTLE LINK ROD

THROTTLE LINK ROD

7-20

THROTTLE CAM

THROTTLE CAM

7-21

BUSHING, THROTTLE CAM

BUSHING, THROTTLE CAM

7-37

TPS DECAL

TPS DECAL

7-33

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

7-5

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-27

TPS (THROTTLE POSITION SENSOR) ASSY

TPS (THROTTLE POSITION SENSOR) ASSY

7-22

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-12

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-30

SCREW

SCREW

7-25

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

7-14

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

7-26

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

7-10

R-PIN (10 MULTIPLE)

R-PIN (10 MULTIPLE)

7-29

COLLAR

COLLAR

7-4

TPS LINK

TPS LINK

7-24

BALL JOINT B

BALL JOINT B

7-11

THROTTLE SET

THROTTLE SET

7-23

WASHER

WASHER

7-6

WASHER

WASHER

7-15

COLLAR

COLLAR

7-16

CLAMP

CLAMP

7-9

WASHER

WASHER

7-8

CABLE JOINT

CABLE JOINT

7-17

LINK 40/50

LINK 40/50

7-28

MOUNT RUBBER

MOUNT RUBBER

7-18

ROD SNAP

ROD SNAP

7-1

ADVANCER ARM

ADVANCER ARM

7-7

COLLAR

COLLAR

7-2

ROD SNAP

ROD SNAP

7-19

THROTTLE BODY ASSY

THROTTLE BODY ASSY

7-36

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-35

GASKET, THROTTLE BODY

GASKET, THROTTLE BODY

7-32

FUEL PIPE 3MM 1/8 (1 EA.=1 METER)

FUEL PIPE 3MM 1/8 (1 EA.=1 METER)
