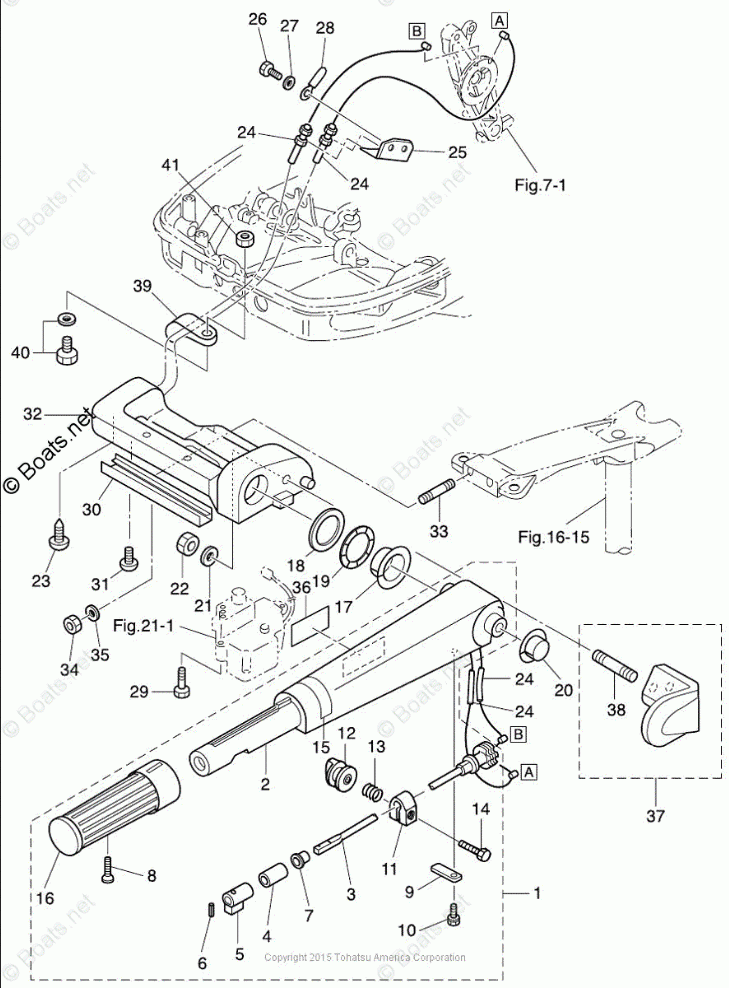

TILLER HANDLE (F TYPE)

Tohatsu MD40B2
Tohatsu
#oem кодцена
20-28
309069720
CLAMP
20-40
9101E35612
BOLT WASHER (10 MULTIPLE)
20-1
3T5Q630031
TILLER HANDLE ASSY, D40/50B
20-11
3V1630351
FRICTION PIECE
20-13
3V1630360
SPRING
20-12
3V1630770
ADJUST NUT
20-26
9101030614
BOLT (10 MULTIPLE)
20-14
9101030625
BOLT (10 MULTIPLE)
20-29
9101036625
BOLT (10 MULTIPLE)
20-10
9101E35612
BOLT WASHER (10 MULTIPLE)
20-15
3T5720190
LABEL, THROTTLE
20-38
9153E31022
STUD BOLT
20-8
9218030525
SCREW (10 MULTIPLE)
20-31
9219030625
SCREW
20-41
9301030600
NUT (10 MULTIPLE)
20-22
9301031000
NUT
20-27
9401030600
WASHER (10 MULTIPLE)
20-21
9401E31000
WASHER (10 MULTIPLE)
20-35
9402E31000
WASHER (10 MULTIPLE)
20-36
3T5843350
LABEL, MAIN SWITCH
20-30
3T5620040
HOLDER, CORD
20-39
345069150
CORD CLAMP A
20-34
3C8620980
NYLON NUT
20-4
345630480
FRICTION RUBBER, THROTTLE SHAFT A
20-7
350630460
BUSHING
20-16
398630120
GRIP
20-5
398630530
SPACER
20-18
3B2631080
WASHER
20-19
3B2631090
WAVE WASHER
20-33
3C8620970
STUD
20-3
3C8630411
THROTTLE SHAFT
20-37
3E5Q630281
HOLDER ASSY, STEERING HANDLE (AMB)
20-9
3C8630630
SUPPORT, THROTTLE SHAFT
20-17
3C8631010
BUSHING A
20-20
3C8631021
BUSHING B
20-25
3C8635081
BRACKET
20-24
3C8636001
THROTTLE WIRE
20-23
3C8636070
CLIP, THROTTLE WIRE
20-2
3C8Q630112
STEERING HANDLE (AMB)
20-32
3E3Q620010
STEERING BRACKET (AMB)
20-6
9514030310
SPRING PIN (10 MULTIPLE)
