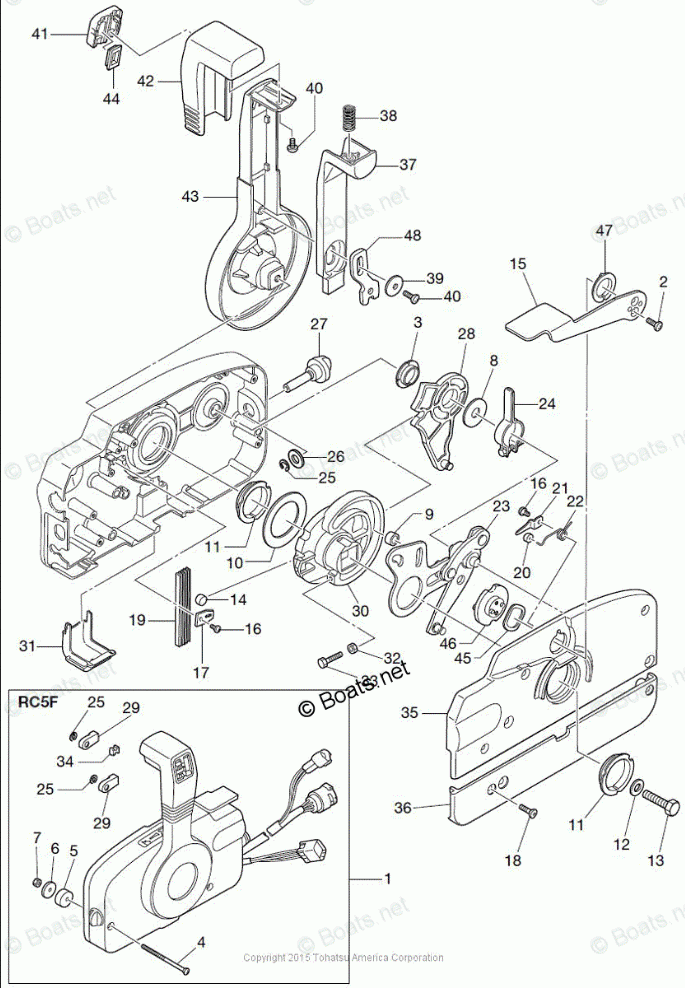

COMPONENT PARTS OF REMOTE CONTROL
COMPONENT PARTS OF REMOTE CONTROL

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MD40B2

COMPONENT PARTS OF REMOTE CONTROL

#

oem код

название

цена

26-6

WASHER

WASHER

26-36

REAR PANEL

REAR PANEL

26-31

WIRE COVER

WIRE COVER

26-11

BUSHING A

BUSHING A

26-3

BUSHING B

BUSHING B

26-47

BUSHING

BUSHING

26-13

BOLT

BOLT

26-41

FINISHER, TILT

FINISHER, TILT

26-44

PLUG, TILT SWITCH

PLUG, TILT SWITCH

26-15

FREE THROTTLE LEVER

FREE THROTTLE LEVER

26-43

CONTROL LEVER (AMB)

CONTROL LEVER (AMB)

26-35

REAR HOUSING

REAR HOUSING

26-27

SCREW, FRICTION

SCREW, FRICTION

26-1

RC BOX, RC5F, ALL TLDI/MFS40/50A

RC BOX, RC5F, ALL TLDI/MFS40/50A

26-33

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

26-16

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

26-40

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

26-2

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

26-18

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

26-32

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

26-7

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

26-12

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

26-24

ARM

ARM

26-21

RETAINER

RETAINER

26-14

ROLLER, THROTTLE DRUM

ROLLER, THROTTLE DRUM

26-28

SHIFT GEAR ASSY

SHIFT GEAR ASSY

26-26

WASHER

WASHER

26-29

TERMINAL EYE

TERMINAL EYE

26-19

SPRING

SPRING

26-30

DRIVE GEAR

DRIVE GEAR

26-23

THROTTLE ARM

THROTTLE ARM

26-45

WAVE WASHER

WAVE WASHER

26-5

SPACER

SPACER

26-4

SCREW

SCREW

26-34

GROMMET

GROMMET

26-8

WASHER

WASHER

26-22

SPRING, FREE ACCELERATOR

SPRING, FREE ACCELERATOR

26-46

DRUM, FREE ACCELERATOR

DRUM, FREE ACCELERATOR

26-37

ARM, NEUTRAL LOCK

ARM, NEUTRAL LOCK

26-38

SPRING

SPRING

26-42

GRIP

GRIP

26-48

PLATE, LOCK ARM

PLATE, LOCK ARM

26-39

WASHER, LOCK ARM

WASHER, LOCK ARM

26-9

ROLLER

ROLLER

26-10

THRUST PLATE

THRUST PLATE

26-17

RETAINER

RETAINER

26-20

ROLLER, FREE ACCELERATOR

ROLLER, FREE ACCELERATOR

26-25

E-RING (10 MULTIPLE)

E-RING (10 MULTIPLE)
