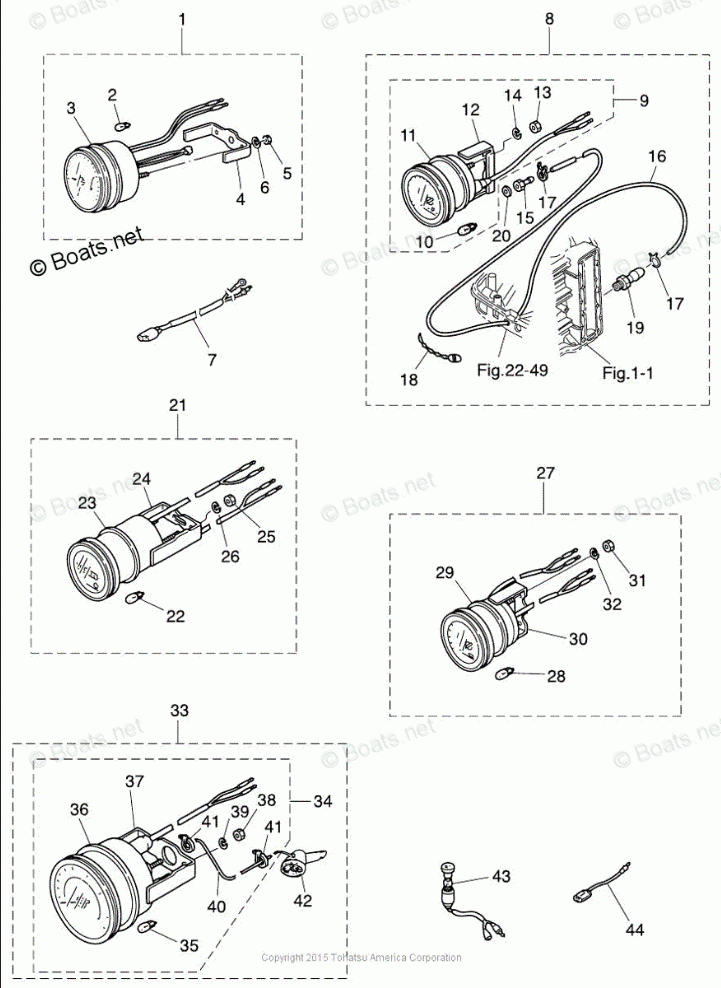

OPTIONAL PARTS 1
OPTIONAL PARTS 1

OPTIONAL PARTS 1

Tohatsu MD40B2

OPTIONAL PARTS 1

#

oem код

название

цена

29-20

GASKET

GASKET

29-7

LEAD WIRE, TACHOMETER

LEAD WIRE, TACHOMETER

29-24

PLATE, FITTING

PLATE, FITTING

29-33

SPEEDOMETET KIT (50MPH)-NLA

SPEEDOMETET KIT (50MPH)-NLA

29-21

HOUR METER-NLA

HOUR METER-NLA

29-27

VOLTMETER ASSY-NLA

VOLTMETER ASSY-NLA

29-9

WATER PRESSURE METER ASSY.-NLA

WATER PRESSURE METER ASSY.-NLA

29-33

SPEEDOMETER KIT 75MPH-NO LONGER AVAILABLE

SPEEDOMETER KIT 75MPH-NO LONGER AVAILABLE

29-34

SPEEDOMETER 50MPH - NLA

SPEEDOMETER 50MPH - NLA

29-34

SPEEDOMETER 75 MPH-NO LONGER AVAILABLE

SPEEDOMETER 75 MPH-NO LONGER AVAILABLE

29-8

WATER PRESSURE METER KIT-NLA

WATER PRESSURE METER KIT-NLA

29-5

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

29-30

PLATE, FITTING

PLATE, FITTING

29-25

NUT

NUT

29-31

NUT

NUT

29-38

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

29-13

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

29-26

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

29-32

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

29-14

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

29-39

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

29-6

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

29-12

PLATE, FITTING

PLATE, FITTING

29-4

PLATE, FITTING

PLATE, FITTING

29-19

PULSE NIPPLE

PULSE NIPPLE

29-40

TUBE, SPEEDOMETER

TUBE, SPEEDOMETER

29-18

BAND

BAND

29-17

CLIP, FUEL PIPE

CLIP, FUEL PIPE

29-43

SWITCH METER LAMP

SWITCH METER LAMP

29-44

ASSIST CORD RED

ASSIST CORD RED

29-44

ASSIST CORD BLUE

ASSIST CORD BLUE

29-44

ASSIST CORD BLACK

ASSIST CORD BLACK

29-1

TACHOMETER ASSY -NLA

TACHOMETER ASSY -NLA

29-15

NIPPLE, WATER PRESSURE METER

NIPPLE, WATER PRESSURE METER

29-42

SPEEDOMETER SENDER

SPEEDOMETER SENDER

29-41

BAND, SPEEDOMETER

BAND, SPEEDOMETER

29-37

PLATE, FITTING

PLATE, FITTING

29-11

DAMPER, METER

DAMPER, METER

29-23

DAMPER, METER

DAMPER, METER

29-29

DAMPER, METER

DAMPER, METER

29-36

DAMPER, METER

DAMPER, METER

29-3

DAMPER, METER

DAMPER, METER

29-22

BULB, METER 12V-1.7W

BULB, METER 12V-1.7W

29-28

BULB, METER 12V-1.7W

BULB, METER 12V-1.7W

29-10

BULB, METER 12V-1.7W

BULB, METER 12V-1.7W

29-2

BULB, METER-DISCONTNIUED

BULB, METER-DISCONTNIUED

29-35

BULB, METER-DISCONTNIUED

BULB, METER-DISCONTNIUED

29-16

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
