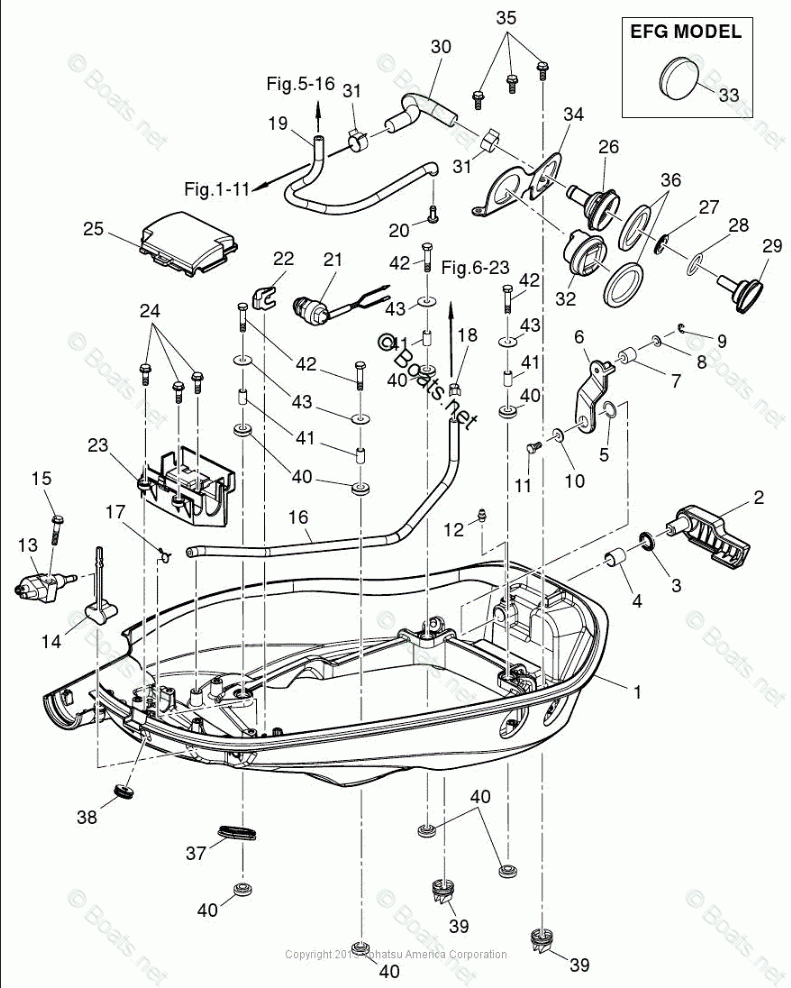

BOTTOM COWL Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS40A (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

BOTTOM COWL

Tohatsu MFS40A

BOTTOM COWL

#

oem код

название

цена

15-17

CLIP, FUEL PIPE

CLIP, FUEL PIPE

15-39

GROMMET

GROMMET

15-25

COVER

COVER

15-21

NEUTRAL SWITCH

NEUTRAL SWITCH

15-28

O-RING

O-RING

15-10

WASHER, 6-16-1.5

WASHER, 6-16-1.5

15-7

ROLLER

ROLLER

15-20

WATER NIPPLE

WATER NIPPLE

15-31

CLIP, 17.8

CLIP, 17.8

15-27

SEAL RING

SEAL RING

15-26

FLUSHING CONNECTOR

FLUSHING CONNECTOR

15-33

GROMMET, PTT SWITCH

GROMMET, PTT SWITCH

15-29

CAP, FLUSHING CONNECTOR

CAP, FLUSHING CONNECTOR

15-11

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

15-15

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

15-42

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

15-35

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

15-24

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

15-5

WAVE WASHER (10 MULTIPLE)

WAVE WASHER (10 MULTIPLE)

15-9

E-RING (10 MULTIPLE)

E-RING (10 MULTIPLE)

15-1

BOTTOM COWL

BOTTOM COWL

15-34

FLUSHING CONNECTOR BRACKET

FLUSHING CONNECTOR BRACKET

15-3

SEAL RING

SEAL RING

15-32

PTT SWITCH

PTT SWITCH

15-12

GREASE NIPPLE

GREASE NIPPLE

15-40

MOUNT RUBBER

MOUNT RUBBER

15-41

SPACER

SPACER

15-43

WASHER

WASHER

15-8

WASHER

WASHER

15-4

BUSHING, HOOK LEVER

BUSHING, HOOK LEVER

15-13

FUEL CONN, ENGINE SIDE, MALE, 4 STROKE, 4-50

FUEL CONN, ENGINE SIDE, MALE, 4 STROKE, 4-50

15-22

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

15-37

GROMMET, SHIFT ROD

GROMMET, SHIFT ROD

15-30

FLUSHING HOSE

FLUSHING HOSE

15-36

GASKET, PTT SWITCH NS70B, D40/50B2

GASKET, PTT SWITCH NS70B, D40/50B2

15-18

CLIP, @ 9.4

CLIP, @ 9.4

15-14

PROTECTOR, FUEL CONN

PROTECTOR, FUEL CONN

15-16

LOW PERMEATION HOSE L=450MM

LOW PERMEATION HOSE L=450MM

15-23

CABLE TERMINAL HOLDER

CABLE TERMINAL HOLDER

15-19

WATER HOSE

WATER HOSE

15-38

GROMMET, TRIM SENDER

GROMMET, TRIM SENDER

15-2

HOOK LEVER

HOOK LEVER

15-6

COVER HOOK

COVER HOOK

15-16

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
