BRACKET Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS40A (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

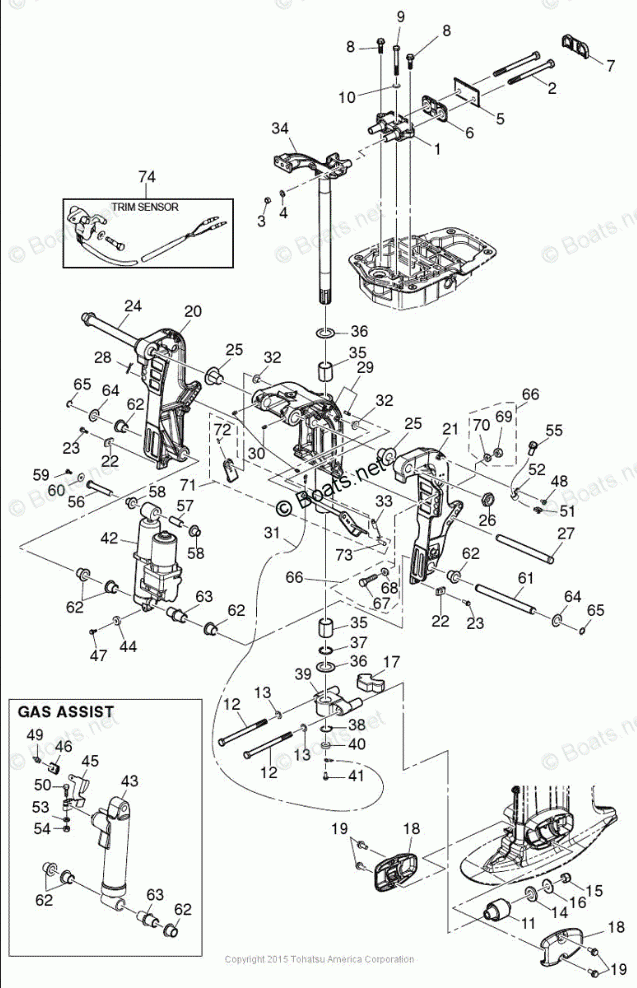

BRACKET

Tohatsu MFS40A

BRACKET

#

oem код

название

цена

13-44

ANODE

ANODE

13-33

SPRING, TILT STOPPER

SPRING, TILT STOPPER

13-55

TERMINAL CAP

TERMINAL CAP

13-50

BOLT, 6-35 PRECOATED

BOLT, 6-35 PRECOATED

13-27

THRUST ROD

THRUST ROD

13-64

WASHER

WASHER

13-57

BUSHING, 13-16-40

BUSHING, 13-16-40

13-45

LOCK LEVER

LOCK LEVER

13-15

NYLON NUT

NYLON NUT

13-74

TRIM SENSOR (2-WIRE)

TRIM SENSOR (2-WIRE)

13-29

SWIVEL BRACKET ASSY (S)

SWIVEL BRACKET ASSY (S)

13-34

STEERING SHAFT ASSY (S)

STEERING SHAFT ASSY (S)

13-21

CLAMP BRACKET (PTT-L) PORT

CLAMP BRACKET (PTT-L) PORT

13-20

CLAMP BRACKET (PTT-R) STARBOARD

CLAMP BRACKET (PTT-R) STARBOARD

13-29

SWIVEL BRACKET ASSY (L/UL)

SWIVEL BRACKET ASSY (L/UL)

13-34

STEERING SHAFT ASSY (L/UL)

STEERING SHAFT ASSY (L/UL)

13-39

MOUNT BRACKET

MOUNT BRACKET

13-51

BAND LEAD WIRE 203-LOCAL PURCHASE

BAND LEAD WIRE 203-LOCAL PURCHASE

13-42

POWER TRIM TILT ASSY, D40/50 (AMB)

POWER TRIM TILT ASSY, D40/50 (AMB)

13-25

BUSHING

BUSHING

13-53

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

13-72

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

13-38

C-RING

C-RING

13-65

C-RING

C-RING

13-16

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

13-4

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

13-10

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

13-70

WASHER (10-MULTIPLE)

WASHER (10-MULTIPLE)

13-54

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

13-43

GAS SHOCK ABSORBER

GAS SHOCK ABSORBER

13-48

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

13-23

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

13-41

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

13-47

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

13-8

BOLT

BOLT

13-19

BOLT

BOLT

13-59

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

13-18

MOUNT HOLDING PLATE (LOWER)

MOUNT HOLDING PLATE (LOWER)

13-63

BUSHING 18-24-60

BUSHING 18-24-60

13-40

ANODE

ANODE

13-35

BUSHING

BUSHING

13-66

RIGGING BOLT SET

RIGGING BOLT SET

13-24

SWIVEL BRACKET BOLT (PTT)

SWIVEL BRACKET BOLT (PTT)

13-71

TILT STOPPER (GAS ASSIST)

TILT STOPPER (GAS ASSIST)

13-73

GRIP

GRIP

13-32

COLLAR

COLLAR

13-36

THRUST PLATE

THRUST PLATE

13-37

O-RING

O-RING

13-3

NUT

NUT

13-68

WASHER, 13-34-3

WASHER, 13-34-3

13-13

WASHER, 13-34-3

WASHER, 13-34-3

13-49

STOPPER

STOPPER

13-26

BRACKET NUT

BRACKET NUT

13-52

CORD CLAMP A

CORD CLAMP A

13-60

WASHER, RACHET

WASHER, RACHET

13-30

GREASE NIPPLE

GREASE NIPPLE

13-46

LOCK LEVER GRIP

LOCK LEVER GRIP

13-14

DAMPER RUBBER, 21-36-5

DAMPER RUBBER, 21-36-5

13-61

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

13-6

DAMPER (UPPER) FRONT SIDE

DAMPER (UPPER) FRONT SIDE

13-62

BUSHING 18-24-22

BUSHING 18-24-22

13-58

BUSHING 18-24-22

BUSHING 18-24-22

13-56

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

13-9

BOLT 8-70

BOLT 8-70

13-7

DAMPER (UPPER) REAR SIDE

DAMPER (UPPER) REAR SIDE

13-17

DAMPER (LOWER)

DAMPER (LOWER)

13-5

LOCK PLATE

LOCK PLATE

13-12

BOLT 12-177.5 P1.25

BOLT 12-177.5 P1.25

13-67

BOLT, STERN BRACKET

BOLT, STERN BRACKET

13-2

BOLT 10-130 P1.25

BOLT 10-130 P1.25

13-11

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

13-1

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

13-22

ANODE, ZINC (SQUARE)

ANODE, ZINC (SQUARE)

13-71

TILT STOPPER (PTT TYPE)

TILT STOPPER (PTT TYPE)

13-31

GROUND WIRE

GROUND WIRE

13-69

NUT

NUT

13-28

R-PIN D=10MM

R-PIN D=10MM
