ELECTRIC PARTS Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS40A (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

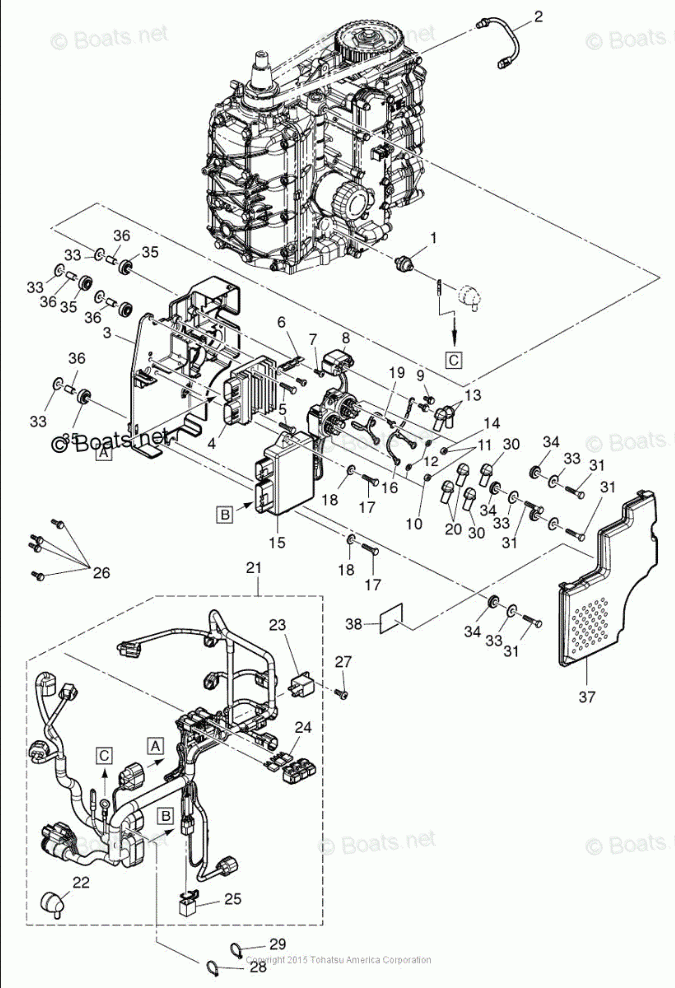

ELECTRIC PARTS

Tohatsu MFS40A

ELECTRIC PARTS

#

oem код

название

цена

9-34

MOUNT RUBBER

MOUNT RUBBER

9-29

BAND LEAD WIRE 203-LOCAL PURCHASE

BAND LEAD WIRE 203-LOCAL PURCHASE

9-23

RELAY

RELAY

9-24

FUSE, 20A

FUSE, 20A

9-24

FUSE, 30A

FUSE, 30A

9-28

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

9-13

TERMINAL CAP

TERMINAL CAP

9-20

TERMINAL CAP

TERMINAL CAP

9-17

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

9-15

ECU ASSY (MFS40A)

ECU ASSY (MFS40A)

9-9

BOLT

BOLT

9-31

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

9-26

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

9-5

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

9-27

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

9-7

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

9-11

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

9-18

WASHER, 6-16-1.5

WASHER, 6-16-1.5

9-21

CORD ASSY

CORD ASSY

9-36

SPACER

SPACER

9-3

BRACKET

BRACKET

9-33

WASHER

WASHER

9-30

CAP BATTERY CORD

CAP BATTERY CORD

9-35

MOUNT RUBBER

MOUNT RUBBER

9-10

SOLENOID SWITCH, UP (BLUE WIRE)

SOLENOID SWITCH, UP (BLUE WIRE)

9-14

SOLENOID SWITCH, DOWN (PINK WIRE)

SOLENOID SWITCH, DOWN (PINK WIRE)

9-1

SWITCH, OIL PRESSURE

SWITCH, OIL PRESSURE

9-8

STARTER SOLENOID

STARTER SOLENOID

9-37

COVER

COVER

9-4

RECTIFIER COMPLETE

RECTIFIER COMPLETE

9-22

GROMMET

GROMMET

9-38

WIRING DIAGRAM DECAL

WIRING DIAGRAM DECAL

9-2

ENGINE TEMP SENSOR

ENGINE TEMP SENSOR

9-16

SOLENOID SWITCH CORD (A)

SOLENOID SWITCH CORD (A)

9-19

SOLENOID SWITCH CORD (B) L=150MM

SOLENOID SWITCH CORD (B) L=150MM

9-25

CABLE TERMINAL PLUG

CABLE TERMINAL PLUG

9-6

FUSE HOLDER BRACKET

FUSE HOLDER BRACKET

9-12

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)
