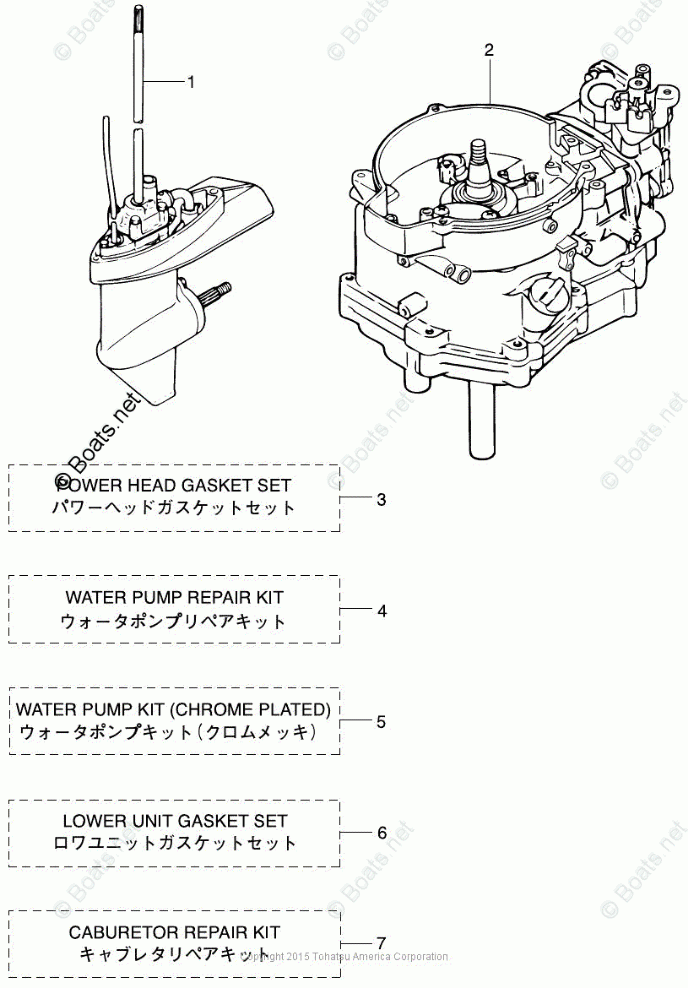

ASSEMBLY & KIT PARTS

Tohatsu MFS4C
Tohatsu
#oem кодцена
17-6
332600060
GASKET (10 MULTIPLE)
17-7
3H6032310
FLOAT
17-3
3GR012150
OIL SEAL
17-2
3GRB870904
ENGINE SHORT BLOCK KIT, F4/5/6C
17-1
3GRQ873011
LOWER UNIT ASSY (S) F4/5/6C (2015)
17-1
3GRQ873020
LOWER UNIT ASSY (L) F4/5/6C (2015)
17-3
3H6010051
GASKET, CYLINDER HEAD
17-3
3H6010240
GASKET, HEAD COVER
17-3
3H6020110
GASKET, CARBURETOR
17-3
3H6021040
O-RING, 2-33.5
17-3
3H6023050
GASKET, EXHAUST PLATE
17-3
3H6023060
GASKET, EXHAUST PORT
17-7
3H6032220
O-RING, FLOAT CHAMBER
17-7
3H6032320
ARM PIN, FLOAT
17-3
3AS871211
POWER HEAD GASKET SET 4B/5B/6B
17-7
3H6032400
FLOAT VALVE
17-7
3H6032440
CLIP
17-3
3H6032930
O-RING, DRAIN SCREW
17-7
3H6032930
O-RING, DRAIN SCREW
17-3
3H6074020
GASKET, OIL PAN
17-3
3H6074220
O-RING
17-3
3H6610120
GASKET, DRIVE SHAFT HOUSING
17-7
3H6871220
CARBURETOR REPAIR KIT MFS4/5/6A-A2/B
17-3
3R1076050
O-RING, OIL PUMP
17-4
9161E30645
BOLT
17-7
9225036412
SCREW
17-3
3GR001220
OIL SEAL
17-3
3AS074320
GASKET, BREATHER CAP
17-6
332660320
O-RING
17-4
369650200
GASKET, WATER PUMP CASE LOWER
17-6
345650150
O-RING
17-3
345660210
O-RING A
17-3
346010320
GASKET, THERMOSTAT
17-3
369012140
GASKET
17-6
369601110
OIL SEAL, PROPELLER SHAFT
17-6
369602230
OIL SEAL
17-4
369650110
LINER, WATER PUMP CASE
17-5
369650180
GASKET, WATER PUMP CASE
17-4
369650180
GASKET, WATER PUMP CASE
17-6
369650180
GASKET, WATER PUMP CASE
17-6
369650200
GASKET, WATER PUMP CASE LOWER
17-4
369650211
IMPELLER NS3.5B/NS5B/4-6HP 4STR
17-3
3AB001210
OIL SEAL
17-5
369650211
IMPELLER NS3.5B/NS5B/4-6HP 4STR
17-4
369650220
KEY
17-4
369650250
GUIDE PLATE
17-6
369650290
GASKET, PUMP GUIDE PLATE
17-5
369650290
GASKET, PUMP GUIDE PLATE
17-4
369650290
GASKET, PUMP GUIDE PLATE
17-5
369652310
CHROME WATER PUMP KIT
17-5
369652380
LINER, CHROME PLATED WATER PUMP CASE
17-5
369652390
GUIDE PLATE, CHROME PLATED WATER PUMP
17-6
369660211
O-RING A
17-6
369873210
LOWER UNIT GASKET SET
17-4
369873221
WATER PUMP REPAIR KIT
17-4
9401030600
WASHER (10 MULTIPLE)
