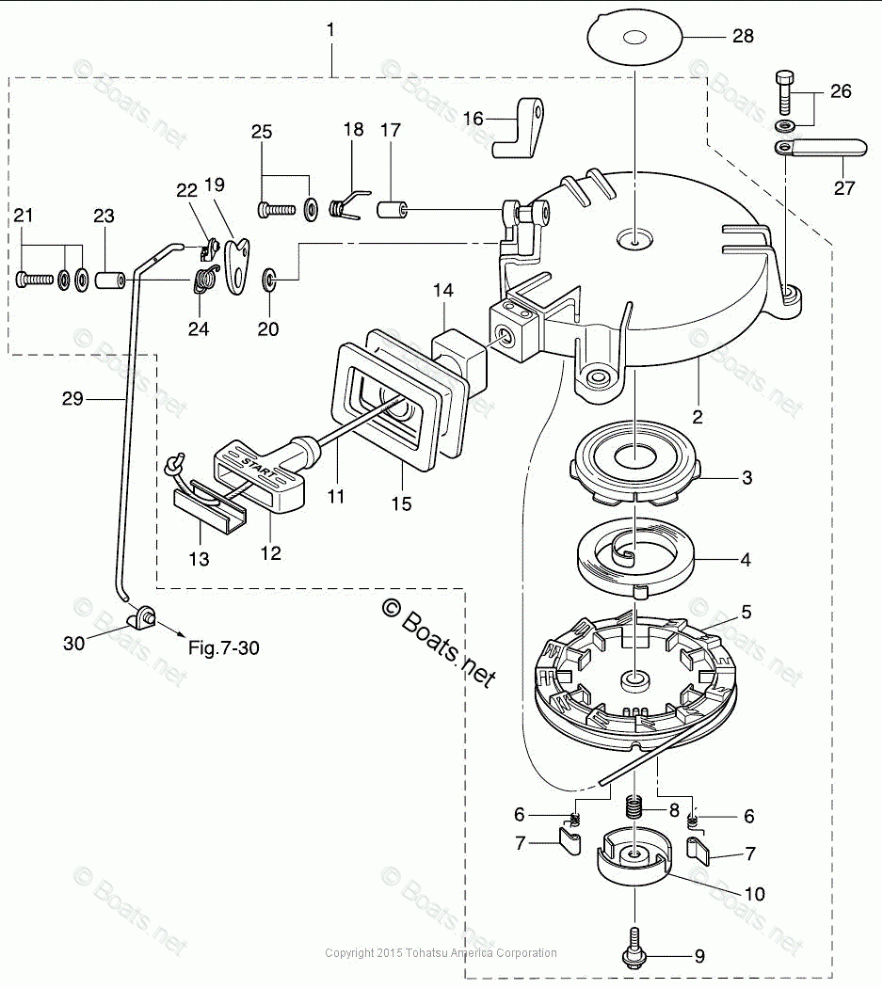

Tohatsu MFS4C

ПУСКОВОЙ МЕХАНИЗМ

#

oem код

название

цена

5-27

CLAMP

CLAMP

5-8

FRICTION SPRING

FRICTION SPRING

5-21

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

5-25

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

5-24

SPRING, STARTER LOCK CAM

SPRING, STARTER LOCK CAM

5-17

COLLAR

COLLAR

5-18

SPRING, STARTER LOCK

SPRING, STARTER LOCK

5-23

COLLAR, 6.1-8-6.5

COLLAR, 6.1-8-6.5

5-9

BOLT

BOLT

5-13

ROPE ANCHOR

ROPE ANCHOR

5-3

STARTER SPRING CASE

STARTER SPRING CASE

5-2

STARTER CASE

STARTER CASE

5-12

STARTER HANDLE

STARTER HANDLE

5-6

RETURN SPRING

RETURN SPRING

5-10

FRICTION PLATE

FRICTION PLATE

5-30

ROD SNAP, 3.5-2

ROD SNAP, 3.5-2

5-4

STARTER SPRING

STARTER SPRING

5-7

RATCHET

RATCHET

5-28

CAUTION LABEL B

CAUTION LABEL B

5-15

STARTER SEAL

STARTER SEAL

5-19

CAM, STARTER LOCK

CAM, STARTER LOCK

5-16

STARTER LOCK

STARTER LOCK

5-29

ROD, STARTER LOCK

ROD, STARTER LOCK

5-14

SEALING PLATE, STARTER

SEALING PLATE, STARTER

5-1

RECOIL STARTER ASSY (F4C/5C/6C)

RECOIL STARTER ASSY (F4C/5C/6C)

5-5

REEL

REEL

5-26

BOLT, 6-25 PRE-COATED

BOLT, 6-25 PRE-COATED

5-11

STARTER ROPE

STARTER ROPE

5-22

ROD SNAP, 3.5-2

ROD SNAP, 3.5-2

5-20

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)
