CARBURETOR, FUEL PUMP Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS4C (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2015
MFS4C
CARBURETOR, FUEL PUMP
CARBURETOR, FUEL PUMP

CARBURETOR, FUEL PUMP

Tohatsu MFS4C

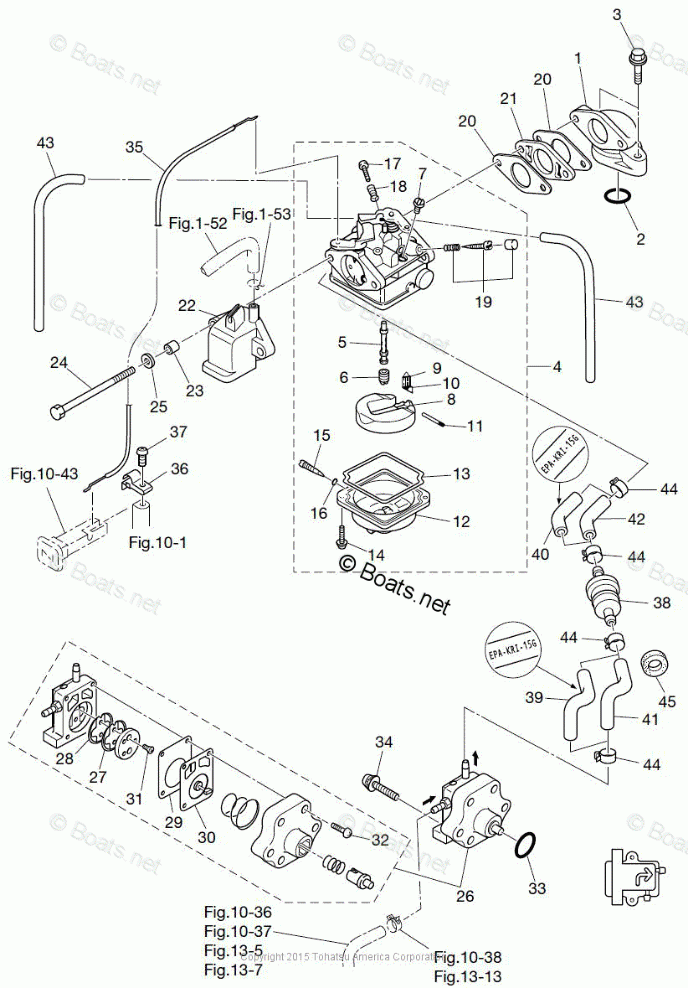

CARBURETOR, FUEL PUMP

#

oem код

название

цена

4-38

FUEL FILTER

FUEL FILTER

4-40

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

4-27

CHECK VALVE (P)

CHECK VALVE (P)

4-33

O-RING

O-RING

4-23

COLLAR, 6.2-9-7.4

COLLAR, 6.2-9-7.4

4-1

INLET MANIFOLD

INLET MANIFOLD

4-4

CARBURETOR ASSY, MFS/NSF4C

CARBURETOR ASSY, MFS/NSF4C

4-5

MAIN NOZZLE, F4C

MAIN NOZZLE, F4C

4-19

PILOT SCREW SET

PILOT SCREW SET

4-36

CABLE HOLDER

CABLE HOLDER

4-42

FUEL HOSE, LOW PERMEATION

FUEL HOSE, LOW PERMEATION

4-28

CHECK VALVE (R)

CHECK VALVE (R)

4-7

PILOT JET #38

PILOT JET #38

4-3

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

4-24

BOLT

BOLT

4-37

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

4-34

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

4-31

SCREW

SCREW

4-14

SCREW

SCREW

4-32

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

4-25

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

4-29

GASKET

GASKET

4-30

DIAPHRAGM

DIAPHRAGM

4-17

STOP SCREW

STOP SCREW

4-2

O-RING, 2-33.5

O-RING, 2-33.5

4-45

MOUNT, RUBBER

MOUNT, RUBBER

4-41

FUEL HOSE, LOW PERMEATION

FUEL HOSE, LOW PERMEATION

4-22

AIR SILENCER

AIR SILENCER

4-35

CHOKE WIRE

CHOKE WIRE

4-39

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

4-44

CLIP, @ 9.4

CLIP, @ 9.4

4-6

MAIN JET #62

MAIN JET #62

4-20

GASKET, CARBURETOR

GASKET, CARBURETOR

4-12

FLOAT CHAMBER

FLOAT CHAMBER

4-26

FUEL PUMP, 4/5/6/8/9.8 4-STR ONLY

FUEL PUMP, 4/5/6/8/9.8 4-STR ONLY

4-13

O-RING, FLOAT CHAMBER

O-RING, FLOAT CHAMBER

4-8

FLOAT

FLOAT

4-11

ARM PIN, FLOAT

ARM PIN, FLOAT

4-9

FLOAT VALVE

FLOAT VALVE

4-10

CLIP

CLIP

4-18

SPRING, STOP SCREW

SPRING, STOP SCREW

4-15

DRAIN SCREW

DRAIN SCREW

4-16

O-RING, DRAIN SCREW

O-RING, DRAIN SCREW

4-21

INSULATOR

INSULATOR

4-43

FUEL PIPE 3MM 1/8 (1 EA.=1 METER)

FUEL PIPE 3MM 1/8 (1 EA.=1 METER)
