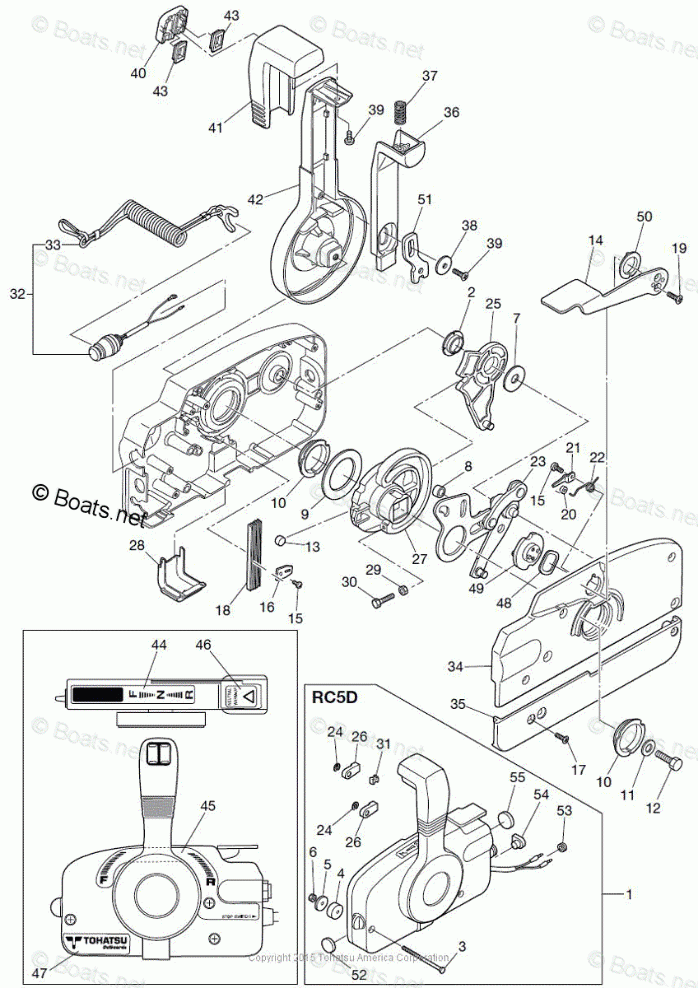

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS4C
Tohatsu
#oem кодцена
15-33
353068210
SAFETY LANYARD LOCK
15-34
3B7Q844410
REAR HOUSING
15-28
3A3844290
WIRE COVER
15-10
3A3844310
BUSHING A
15-2
3A3844320
BUSHING B
15-50
3A3844350
BUSHING
15-12
3A3844420
BOLT
15-40
3A3844510
FINISHER, TILT
15-43
3A3844520
PLUG, TILT SWITCH
15-14
3B7Q843120
FREE THROTTLE LEVER
15-42
3B7Q843430
CONTROL LEVER (AMB)
15-1
3B7Q843602
RC BOX, RC5D (MFS4B-C~30C),W/O ELECT START
15-35
3B7Q843660
REAR PANEL
15-46
3N5843310
DECAL (LEVER)
15-22
3A3844250
SPRING, FREE ACCELERATOR
15-47
3N5843330
DECAL (TOHATSU)
15-44
3N5843360
DECAL (SHIFT POSITION)
15-45
3N5844650
DECAL, SHIFT POSITION SIDE
15-30
9101030525
BOLT (10 MULTIPLE)
15-15
9215030406
SCREW (10 MULTIPLE)
15-39
9215030510
SCREW (10 MULTIPLE)
15-19
9216030512
SCREW (10 MULTIPLE)
15-17
9216030516
SCREW (10 MULTIPLE)
15-29
9301030500
NUT (10 MULTIPLE)
15-6
9301030600
NUT (10 MULTIPLE)
15-11
9401030800
WASHER (10 MULTIPLE)
15-21
3A3844260
RETAINER
15-20
3A3844240
ROLLER, FREE ACCELERATOR
15-54
353843210
GROMMET-DISCONTINUED
15-4
3A3843740
SPACER
15-5
353843710
WASHER
15-13
353843880
ROLLER, THROTTLE DRUM
15-52
361844140
GROMMET A
15-55
369844160
GROMMET C
15-53
369844180
GROMMET E
15-32
398068300
STOP SWITCH ASSY W/LANYARD
15-26
3A3833142
TERMINAL EYE
15-18
3A3843070
SPRING
15-27
3A3843642
DRIVE GEAR
15-23
3A3843651
THROTTLE ARM
15-48
3A3843680
WAVE WASHER
15-3
3A3843750
SCREW
15-16
3A3844230
RETAINER
15-31
3A3843760
GROMMET
15-25
3A3843810
SHIFT GEAR ASSY
15-7
3A3843830
WASHER
15-49
3A3843910
DRUM, FREE ACCELERATOR
15-36
3A3844010
ARM, NEUTRAL LOCK
15-37
3A3844030
SPRING
15-41
3A3844040
GRIP
15-51
3A3844060
PLATE, LOCK ARM
15-38
3A3844070
WASHER, LOCK ARM
15-8
3A3844210
ROLLER
15-9
3A3844220
THRUST PLATE
15-24
9453030600
E-RING (10 MULTIPLE)
