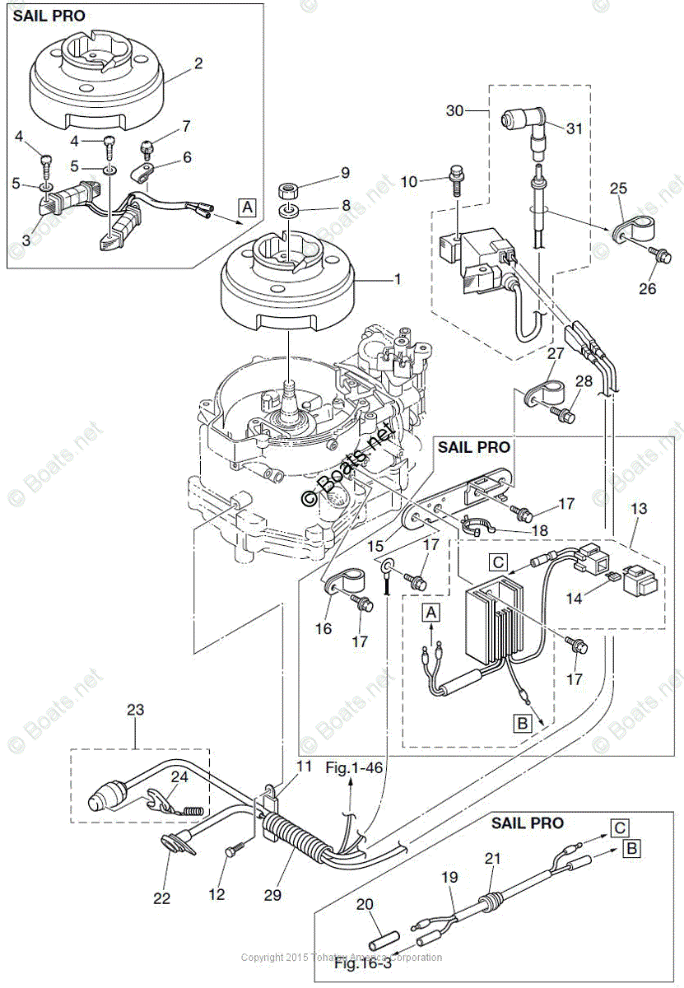

ГЕНЕРАТОР

Tohatsu MFS6C
Tohatsu
#oem кодцена
6-11
309069720
CLAMP
6-15
3GR069000
ELECTRIC BRACKET ASSY
6-5
9401030500
WASHER (10 MULTIPLE)
6-7
9215216408
SCREW (10 MULTIPLE)
6-4
9215030525
SCREW (10 MULTIPLE)
6-26
9101E35612
BOLT WASHER (10 MULTIPLE)
6-28
9101E35612
BOLT WASHER (10 MULTIPLE)
6-12
9101E35612
BOLT WASHER (10 MULTIPLE)
6-10
9101035630
BOLT (10 MULTIPLE)
6-17
9101035614
BOLT (10 MULTIPLE)
6-20
3H6760370
CABLE TERMINAL PLUG
6-31
3H6069990
PLUG CAP
6-14
3GR762460
FUSE, 10A
6-13
3GR760600
RECTIFIER COMPLETE
6-22
3GR710400
WARNING LAMP ASSY
6-23
3GR068700
STOP SWITCH ASSY
6-25
345069150
CORD CLAMP A
6-30
3GR060410
IGNITER W/RESISTANCE CAP, C MODELS
6-3
3GR060230
ALTERNATOR ASSY. F5/6C
6-18
3BJ843980
LEAD WIRE BAND 135
6-29
3BA061330
PROTECTOR (L=180MM)
6-1
3AS060090
FLYWHEEL W/O ALTERNATOR, B MODELS
6-2
3AS060010
FLYWHEEL CUP (MFS4) FOR USE W/ALTERNATOR
6-19
399761200
BATTERY CABLE
6-6
369069150
CLAMP
6-9
369001320
NUT, MAGNETO
6-24
353068210
SAFETY LANYARD LOCK
6-21
345662260
GROMMET, SHIFT ROD
6-27
345069150
CORD CLAMP A
6-16
345069150
CORD CLAMP A
6-8
9401211200
WASHER
