CYLINDER HEAD & OIL PUMP Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS8A3 (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2015
MFS8A3
CYLINDER HEAD & OIL PUMP

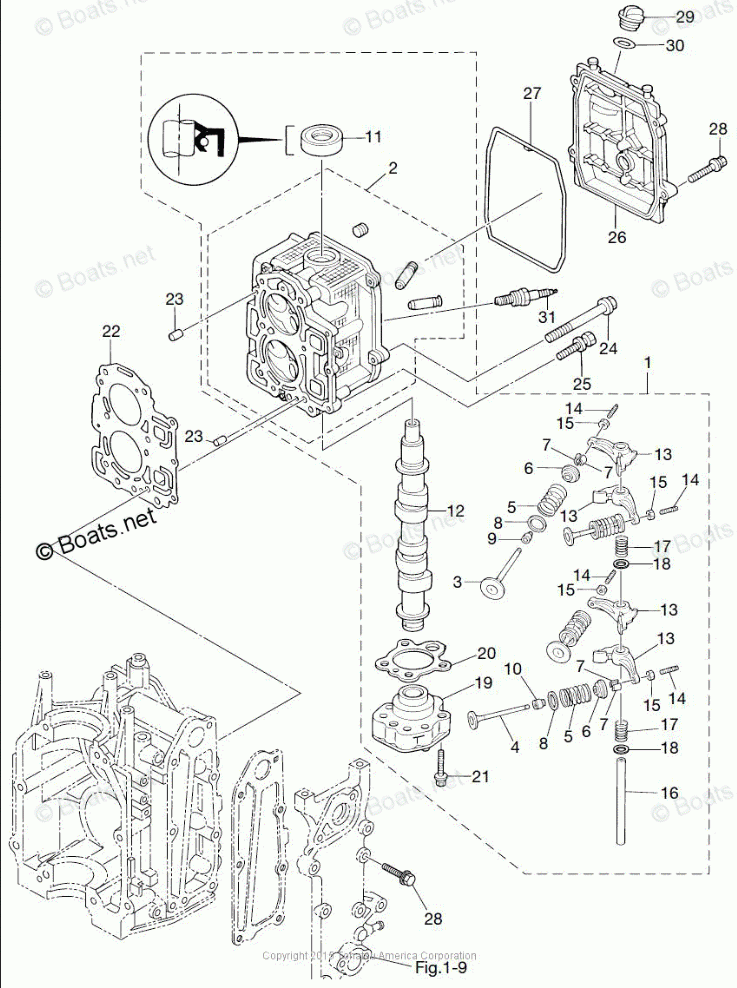

CYLINDER HEAD & OIL PUMP

CYLINDER HEAD & OIL PUMP

Tohatsu MFS8A3

CYLINDER HEAD & OIL PUMP

#

oem код

название

цена

3-23

DOWEL PIN 6-12

DOWEL PIN 6-12

3-4

EXHAUST VALVE

EXHAUST VALVE

3-21

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

3-28

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

3-25

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

3-12

CAMSHAFT

CAMSHAFT

3-13

ROCKER ARM

ROCKER ARM

3-16

SHAFT, ROCKER ARM

SHAFT, ROCKER ARM

3-26

COVER, CYLINDER HEAD

COVER, CYLINDER HEAD

3-2

CYLINDER HEAD

CYLINDER HEAD

3-1

CYLINDER HEAD ASSY, MFS8/9.8A3

CYLINDER HEAD ASSY, MFS8/9.8A3

3-20

GASKET, OIL PUMP

GASKET, OIL PUMP

3-19

OIL PUMP

OIL PUMP

3-6

RETAINER

RETAINER

3-8

SEAT, VALVE SPRING

SEAT, VALVE SPRING

3-3

INTAKE VALVE

INTAKE VALVE

3-5

VALVE SPRING

VALVE SPRING

3-27

GASKET, HEAD COVER

GASKET, HEAD COVER

3-22

GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD

3-18

WASHER

WASHER

3-10

SEAL, EXH VALVE STEM

SEAL, EXH VALVE STEM

3-9

SEAL, INT VALVE STEM

SEAL, INT VALVE STEM

3-29

FILLER CAP, ENGINE OIL

FILLER CAP, ENGINE OIL

3-30

O-RING

O-RING

3-14

SCREW

SCREW

3-15

NUT

NUT

3-11

OIL SEAL

OIL SEAL

3-24

BOLT

BOLT

3-7

COTTER

COTTER

3-17

SPRING, ROCKER SHAFT

SPRING, ROCKER SHAFT

3-31

SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)

SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)
