ПУСКОВОЙ МЕХАНИЗМ Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS8A3 (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2015
MFS8A3

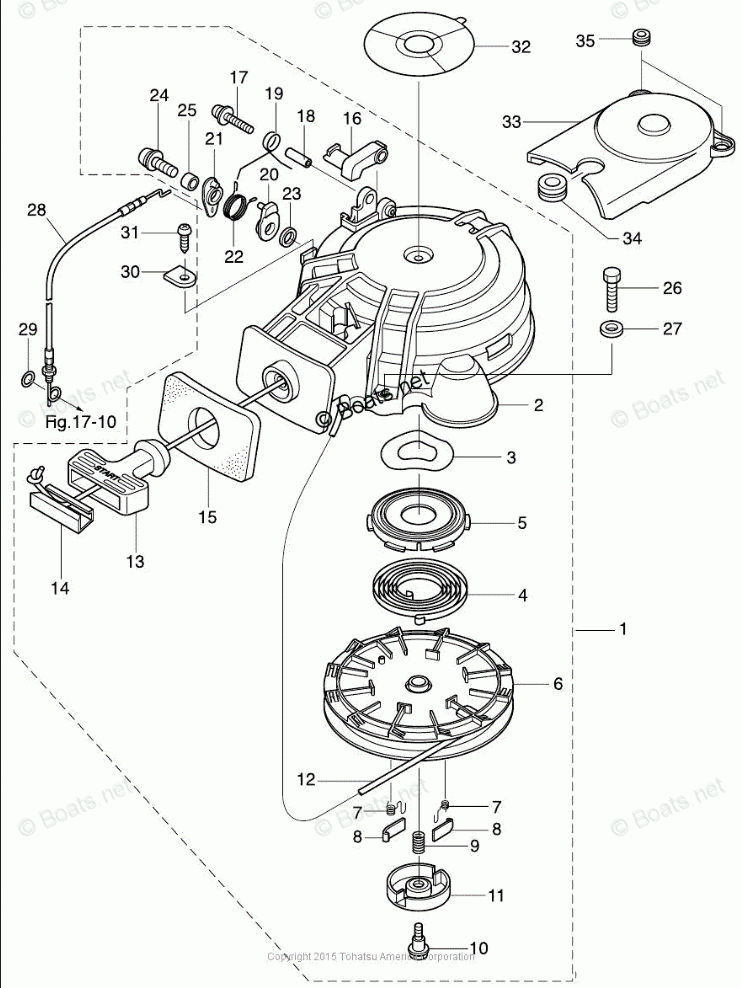

ПУСКОВОЙ МЕХАНИЗМ
ПУСКОВОЙ МЕХАНИЗМ

ПУСКОВОЙ МЕХАНИЗМ

Tohatsu MFS8A3

ПУСКОВОЙ МЕХАНИЗМ

#

oem код

название

цена

7-35

GROMMET

GROMMET

7-26

BOLT, PRE-COATED (10@-25)

BOLT, PRE-COATED (10@-25)

7-18

COLLAR

COLLAR

7-6

REEL

REEL

7-3

WAVE WASHER

WAVE WASHER

7-31

TAPPING SCREW

TAPPING SCREW

7-34

RUBBER MOUNT

RUBBER MOUNT

7-33

BELT COVER

BELT COVER

7-1

RECOIL STARTER ASSY.

RECOIL STARTER ASSY.

7-10

BOLT

BOLT

7-28

WIRE, STARTER LOCK

WIRE, STARTER LOCK

7-21

LEVER, STARTER LOCK

LEVER, STARTER LOCK

7-20

CAM, STARTER LOCK

CAM, STARTER LOCK

7-22

SPRING, STARTER LOCK CAM

SPRING, STARTER LOCK CAM

7-17

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

7-24

SCREW

SCREW

7-19

SPRING, STARTER LOCK

SPRING, STARTER LOCK

7-14

ROPE ANCHOR

ROPE ANCHOR

7-30

RETAINER

RETAINER

7-29

O-RING, 1.5-2.5

O-RING, 1.5-2.5

7-4

STARTER SPRING

STARTER SPRING

7-12

STARTER ROPE

STARTER ROPE

7-13

STARTER HANDLE

STARTER HANDLE

7-2

STARTER CASE

STARTER CASE

7-16

STARTER LOCK (BLACK)

STARTER LOCK (BLACK)

7-15

SEAL RUBBER, STARTER

SEAL RUBBER, STARTER

7-27

WASHER

WASHER

7-5

STARTER SPRING CASE

STARTER SPRING CASE

7-25

COLLAR

COLLAR

7-32

CAUTION LABEL B

CAUTION LABEL B

7-8

RATCHET

RATCHET

7-11

FRICTION PLATE

FRICTION PLATE

7-9

FRICTION SPRING

FRICTION SPRING

7-7

RETURN SPRING

RETURN SPRING

7-23

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)
