CARBURETOR Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS9.8A3 (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

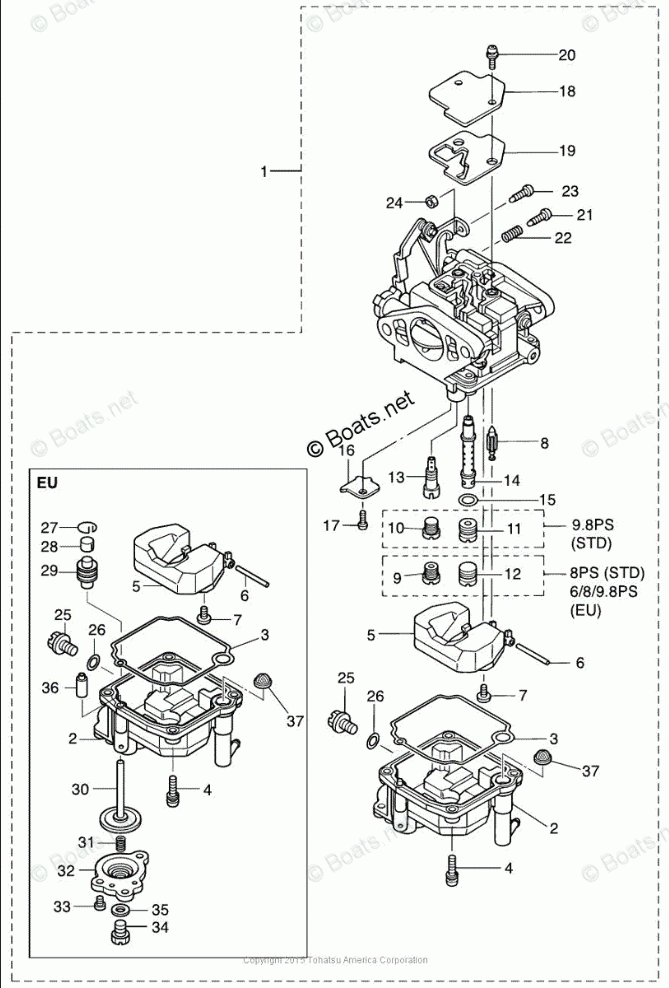

CARBURETOR

Tohatsu MFS9.8A3

CARBURETOR

#

oem код

название

цена

6-27

RETAINING RING

RETAINING RING

6-22

SPRING

SPRING

6-26

GASKET, DRAIN SCREW

GASKET, DRAIN SCREW

6-9

MAIN JET #93, HIGH ALT.

MAIN JET #93, HIGH ALT.

6-13

SLOW JET #39

SLOW JET #39

6-13

SLOW JET #40 EU

SLOW JET #40 EU

6-1

CARBURETOR, F9.8A2/A3 (F)

CARBURETOR, F9.8A2/A3 (F)

6-1

CARBURETOR, F9.8A2/A3 (P)

CARBURETOR, F9.8A2/A3 (P)

6-14

MAIN NOZZLE

MAIN NOZZLE

6-10

PLUG

PLUG

6-24

NUT

NUT

6-21

STOP SCREW

STOP SCREW

6-11

MAIN JET #92

MAIN JET #92

6-32

DIAPHRAGM COVER

DIAPHRAGM COVER

6-2

FLOAT CHAMBER, F9.8A3 (EU)

FLOAT CHAMBER, F9.8A3 (EU)

6-33

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

6-7

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

6-17

SCREW

SCREW

6-20

SCREW

SCREW

6-25

DRAIN SCREW

DRAIN SCREW

6-19

GASKET, CARBURETOR COVER

GASKET, CARBURETOR COVER

6-28

CAP

CAP

6-6

FLOAT ARM PIN

FLOAT ARM PIN

6-34

DRAIN SCREW

DRAIN SCREW

6-35

DRAIN SCREW GASKET

DRAIN SCREW GASKET

6-29

RUBBER BOOT

RUBBER BOOT

6-31

COIL SPRING, F9.9C

COIL SPRING, F9.9C

6-30

PLUNGER, F9.9C

PLUNGER, F9.9C

6-37

FUEL FILTER

FUEL FILTER

6-5

FLOAT

FLOAT

6-18

COVER PLATE

COVER PLATE

6-23

STOP SCREW

STOP SCREW

6-1

CARBURETOR ASSY EU (F)

CARBURETOR ASSY EU (F)

6-1

CARBURETOR ASSY EU (EP)

CARBURETOR ASSY EU (EP)

6-15

O-RING

O-RING

6-2

FLOAT CHAMBER

FLOAT CHAMBER

6-3

GASKET, FLOAT CHAMBER

GASKET, FLOAT CHAMBER

6-16

PLATE

PLATE

6-8

FLOAT VALVE

FLOAT VALVE

6-12

PLUG

PLUG

6-4

SCREW

SCREW
