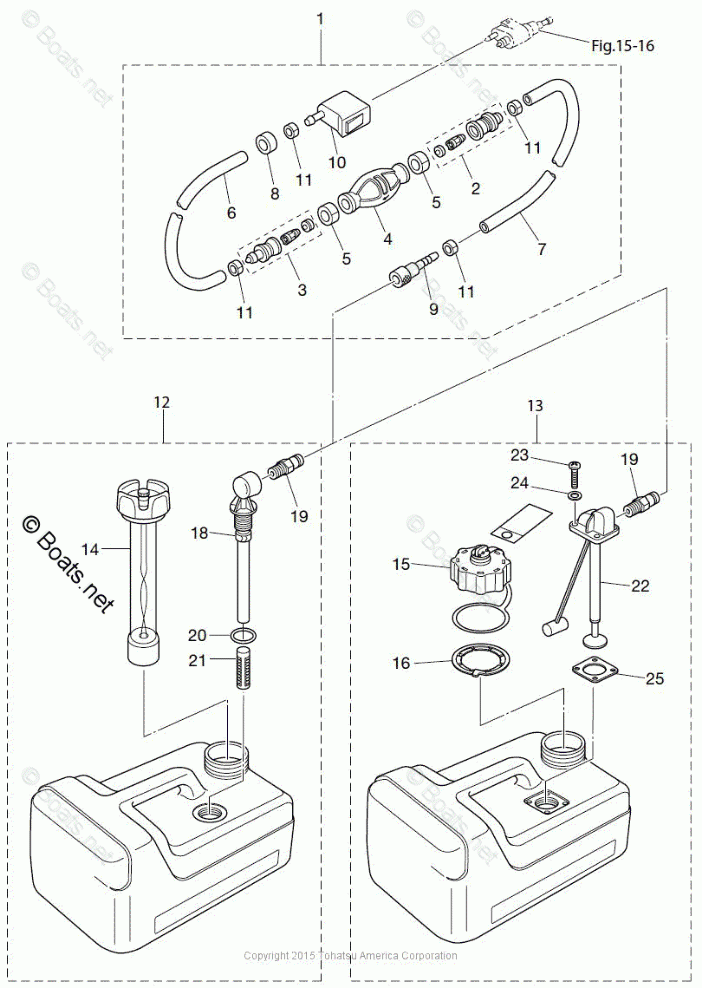

ТОПЛИВНЫЙ БАК

Tohatsu MFS15D
Tohatsu
#oem кодцена
19-11
332702010
CLAMP
19-4
3GF702111
PRIMER BULB, LOW PERMEATION
19-7
98AB701000
FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
19-6
98AB701000
FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
19-12
3V1701671
FUEL TANK 12L (3.1 GAL) EPA CAP (TOHATSU)
19-13
3V1701671
FUEL TANK 12L (3.1 GAL) EPA CAP (TOHATSU)
19-22
3V1701570
FUEL PICK-UP ASSY W/GAUGE, 3 GAL.(EPA)
19-1
3H6702002
PRIMER BULB ASSY (4-STROKE - 4-50hp)
19-8
3GR702800
FUEL CONNECTOR MARK
19-10
3GR702500
FUEL CONN, ENGINE SIDE, FEMALE 4 STROKE, 4-50
19-9
3GF702810
FUEL CONNECTOR
19-6
3GF702410
HOSE (LOW PERMEATION)
19-7
3GF702400
HOSE (LOW PERMEATION)-DISCONTINUED
19-3
3C7702241
JOINT A ASSY, OUTER
19-15
3AC700521
FUEL TANK CAP ASSY (EPA/CARB)
19-2
3C7702201
JOINT A ASSY, INNER
19-5
3C7702170
CLAMP
19-4
3C7702111
PRIMER BULB
19-20
3C7701990
O-RING
19-21
3C7701130
FILTER SCREEN 9754
19-18
3B2701550
ELBOW TUBING AND CLAMP ASSY
19-14
3B2700501
FUEL GAUGE VENTED CAP, 3 GAL TANK
19-1
3AD702002
PRIMER BULB ASSY (LOW PERMEATION)
19-25
3AC701500
GASKET, FUEL PICK-UP
19-24
3AC701450
WASHER, FUEL PICK-UP
19-23
3AC701400
SCREW, FUEL PICK-UP
19-16
3AC700550
RETAINING RING, FUEL CAP
19-19
9999800MA2
FUEL CONN, TANK SIDE MALE (1/4 IN. NPT)
