BRACKET (PTT) Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS15D (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

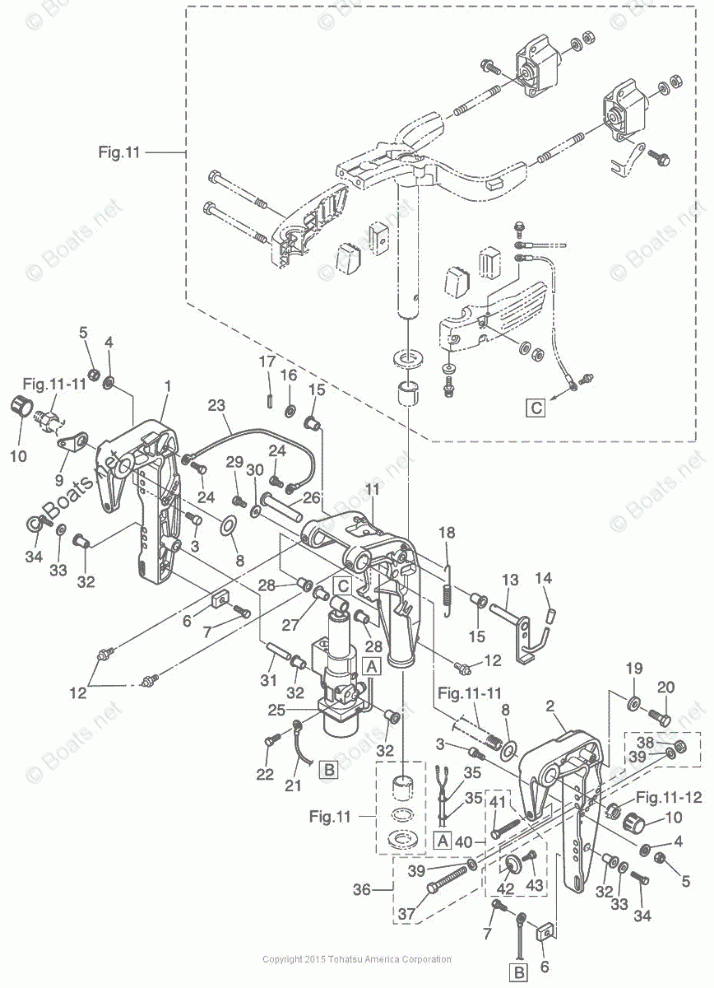

BRACKET (PTT)

Tohatsu MFS15D

BRACKET (PTT)

#

oem код

название

цена

12-33

WASHER

WASHER

12-29

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

12-13

TILT STOPPER

TILT STOPPER

12-27

BUSHING, 13-16-31

BUSHING, 13-16-31

12-32

BUSHING, 13-16-31

BUSHING, 13-16-31

12-31

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

12-3

TRIM LOCK PIN

TRIM LOCK PIN

12-35

BAND LEAD WIRE 203-LOCAL PURCHASE

BAND LEAD WIRE 203-LOCAL PURCHASE

12-1

CLAMP BRACKET, (PTT-RIGHT) STARBOARD

CLAMP BRACKET, (PTT-RIGHT) STARBOARD

12-2

CLAMP BRACKET, (PTT-LEFT) PORT

CLAMP BRACKET, (PTT-LEFT) PORT

12-20

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

12-28

BUSHING, 13-17-19.5

BUSHING, 13-17-19.5

12-34

BOLT

BOLT

12-24

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

12-22

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

12-7

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

12-37

BOLT

BOLT

12-38

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

12-39

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-16

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-5

NYLON NUT, CO-PILOT (8MM)

NYLON NUT, CO-PILOT (8MM)

12-18

SPRING, TILT STOPPER

SPRING, TILT STOPPER

12-42

PAD, CLAMP SCREW (THREADED STYLE)

PAD, CLAMP SCREW (THREADED STYLE)

12-9

PLATE

PLATE

12-12

GREASE NIPPLE

GREASE NIPPLE

12-19

WASHER, RACHET

WASHER, RACHET

12-30

WASHER, RACHET

WASHER, RACHET

12-10

BRACKET CAP

BRACKET CAP

12-15

COLLAR

COLLAR

12-14

GRIP

GRIP

12-21

GROUND WIRE

GROUND WIRE

12-23

GROUND WIRE

GROUND WIRE

12-8

WASHER

WASHER

12-4

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-25

POWER TRIM TILT ASSY

POWER TRIM TILT ASSY

12-11

SWIVEL BRACKET (PTT)

SWIVEL BRACKET (PTT)

12-36

RIGGING BOLT SET

RIGGING BOLT SET

12-43

SHOULDER BOLT

SHOULDER BOLT

12-41

CLAMP SCREW (PTT)

CLAMP SCREW (PTT)

12-40

CLAMP SCREW KIT

CLAMP SCREW KIT

12-6

ANODE, ZINC (SQUARE)

ANODE, ZINC (SQUARE)

12-26

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

12-17

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)
