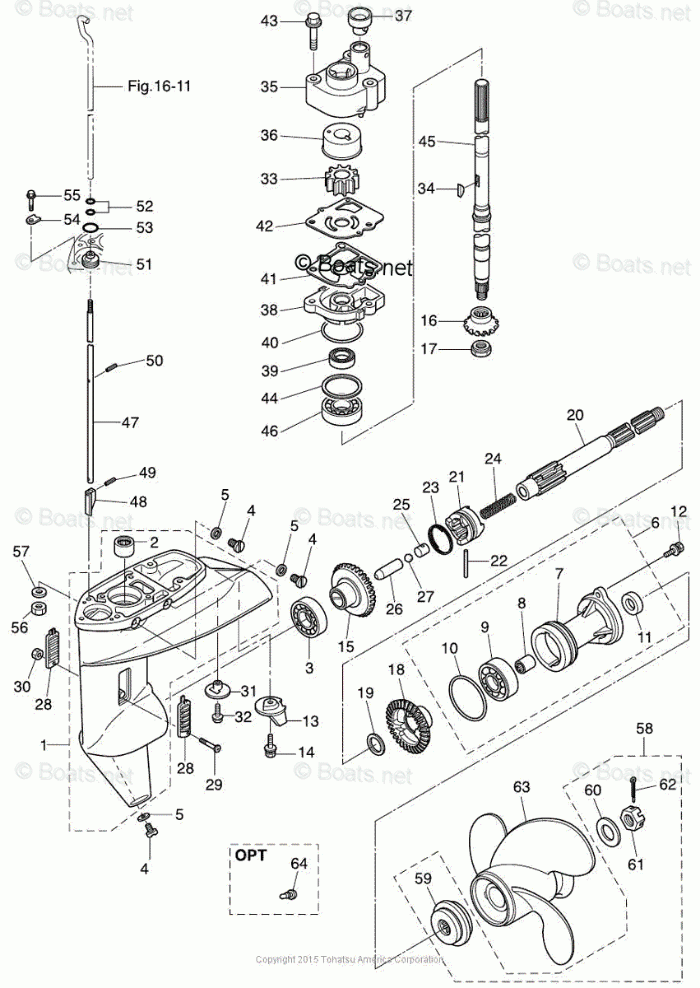

КАРТЕР КОРОБКИ ПЕРЕДАЧ Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS15D (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2015
MFS15D
КАРТЕР КОРОБКИ ПЕРЕДАЧ
КАРТЕР КОРОБКИ ПЕРЕДАЧ

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu MFS15D

КАРТЕР КОРОБКИ ПЕРЕДАЧ

#

oem код

название

цена

10-4

OIL PLUG (8 X 1.25)

OIL PLUG (8 X 1.25)

10-18

BEVEL GEAR C

BEVEL GEAR C

10-45

DRIVE SHAFT L (L=29 3/8)

DRIVE SHAFT L (L=29 3/8)

10-6

PROP SHAFT HOUSING ASSY

PROP SHAFT HOUSING ASSY

10-1

GEAR CASE

GEAR CASE

10-38

WATER PUMP CASE, LOWER

WATER PUMP CASE, LOWER

10-26

CLUTCH PUSH ROD

CLUTCH PUSH ROD

10-21

CLUTCH

CLUTCH

10-16

BEVEL GEAR B

BEVEL GEAR B

10-10

O-RING

O-RING

10-15

BEVEL GEAR A

BEVEL GEAR A

10-3

BALL BEARING 6205HS

BALL BEARING 6205HS

10-9

BALL BEARING 6205HS

BALL BEARING 6205HS

10-46

BALL BEARING 7302A

BALL BEARING 7302A

10-2

NEEDLE BEARING

NEEDLE BEARING

10-12

PRE-COATED BOLT

PRE-COATED BOLT

10-7

PROP SHAFT HOUSING

PROP SHAFT HOUSING

10-41

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

10-47

CAM ROD (S)

CAM ROD (S)

10-29

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

10-62

SPLIT PIN (10 MULTIPLE)

SPLIT PIN (10 MULTIPLE)

10-50

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

10-49

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

10-30

NYLON NUT (10 MULTIPLE)

NYLON NUT (10 MULTIPLE)

10-56

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

10-32

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

10-43

BOLT WASHER

BOLT WASHER

10-57

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

10-14

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

10-55

BOLT

BOLT

10-63

PROPELLER (7) 4 BLADE X 10 X 7 (F9.9/15/20)

PROPELLER (7) 4 BLADE X 10 X 7 (F9.9/15/20)

10-58

PROP HDWR KIT 9.9D2/15D2/18E2, F9.9B/15B/18B/15C/20C

PROP HDWR KIT 9.9D2/15D2/18E2, F9.9B/15B/18B/15C/20C

10-13

TRIM TAB

TRIM TAB

10-45

DRIVE SHAFT S

DRIVE SHAFT S

10-47

CAM ROD (L)

CAM ROD (L)

10-63

PROPELLER (11) 3 X 9.25 X 11.5 (F9.9/15/20)

PROPELLER (11) 3 X 9.25 X 11.5 (F9.9/15/20)

10-5

GASKET (10 MULTIPLE)

GASKET (10 MULTIPLE)

10-64

SUB WATER PIPE PLUG

SUB WATER PIPE PLUG

10-19

WASHER

WASHER

10-11

OIL SEAL

OIL SEAL

10-60

WASHER, PROP NUT (9.9-30)

WASHER, PROP NUT (9.9-30)

10-61

PROP NUT(9.9-30)

PROP NUT(9.9-30)

10-17

NUT, BEVEL GEAR B

NUT, BEVEL GEAR B

10-44

SHIM KIT

SHIM KIT

10-40

O-RING

O-RING

10-23

SNAP

SNAP

10-53

O-RING

O-RING

10-33

IMPELLER (9.9B2-18E2 9.9/15/20 4-STROKE)

IMPELLER (9.9B2-18E2 9.9/15/20 4-STROKE)

10-54

RETAINER

RETAINER

10-52

O-RING

O-RING

10-24

SPRING,CLUTCH

SPRING,CLUTCH

10-39

OIL SEAL

OIL SEAL

10-22

CLUTCH PIN

CLUTCH PIN

10-25

SPRING HOLDER, CLUTCH

SPRING HOLDER, CLUTCH

10-63

PROPELLER (8) 3 X 9.25 X 8 (F9.9/15/20)

PROPELLER (8) 3 X 9.25 X 8 (F9.9/15/20)

10-63

PROPELLER (9) 3 X 9.25 X 9 (F9.9/15/20)

PROPELLER (9) 3 X 9.25 X 9 (F9.9/15/20)

10-20

PROPELLER SHAFT (14 SPLINE)

PROPELLER SHAFT (14 SPLINE)

10-48

CLUTCH CAM

CLUTCH CAM

10-51

BUSHING, CAM ROD

BUSHING, CAM ROD

10-31

SUB WATER STRAINER

SUB WATER STRAINER

10-63

PROPELLER (10) 3 X 9.25 X 10 (F9.9/15/20)

PROPELLER (10) 3 X 9.25 X 10 (F9.9/15/20)

10-63

PROPELLER (7) 3 X 9.25 X 7 (F9.9/15/20)

PROPELLER (7) 3 X 9.25 X 7 (F9.9/15/20)

10-59

THRUST HOLDER (9.9-18)

THRUST HOLDER (9.9-18)

10-36

LINER, WATER PUMP CASE

LINER, WATER PUMP CASE

10-8

BEARING

BEARING

10-28

WATER STRAINER

WATER STRAINER

10-42

GUIDE PLATE

GUIDE PLATE

10-34

KEY

KEY

10-35

WATER PUMP CASE

WATER PUMP CASE

10-37

SEAL RUBBER

SEAL RUBBER

10-27

SST BALL

SST BALL
