MAGNETO & ELECTRIC PARTS
MAGNETO & ELECTRIC PARTS

MAGNETO & ELECTRIC PARTS

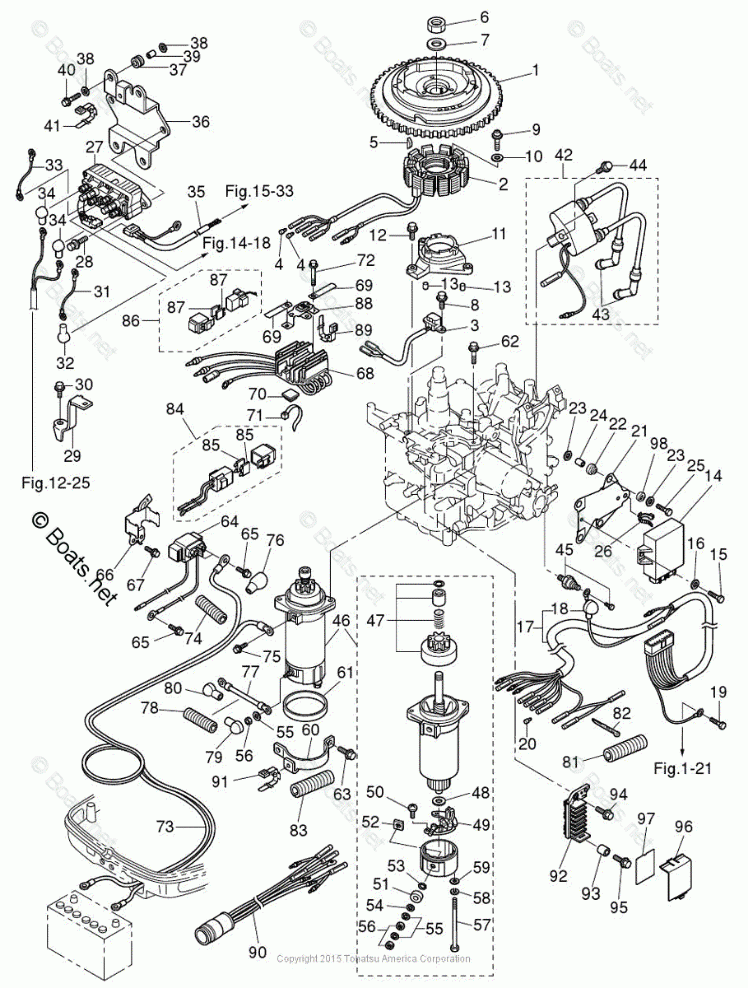

Tohatsu MFS15D

MAGNETO & ELECTRIC PARTS

#

oem код

название

цена

8-93

COLLAR, 6-8-6

COLLAR, 6-8-6

8-4

PLUG ,CABLE TERMINAL

PLUG ,CABLE TERMINAL

8-32

TERMINAL CAP

TERMINAL CAP

8-34

TERMINAL CAP

TERMINAL CAP

8-79

TERMINAL CAP

TERMINAL CAP

8-11

COIL BRACKET

COIL BRACKET

8-84

FUSE WIRE

FUSE WIRE

8-15

BOLT, 6-16 PRE-COATED

BOLT, 6-16 PRE-COATED

8-81

PROTECTOR

PROTECTOR

8-85

FUSE, 20A

FUSE, 20A

8-87

FUSE, 20A

FUSE, 20A

8-20

PLUG ,CABLE TERMINAL

PLUG ,CABLE TERMINAL

8-71

BAND LEAD WIRE 203-LOCAL PURCHASE

BAND LEAD WIRE 203-LOCAL PURCHASE

8-5

MAGNETO KEY

MAGNETO KEY

8-22

MOUNT RUBBER

MOUNT RUBBER

8-77

STARTER CORD

STARTER CORD

8-18

GROMMET

GROMMET

8-7

WASHER

WASHER

8-39

COLLAR, 6.2-9-7.4

COLLAR, 6.2-9-7.4

8-45

SWITCH, OIL PRESSURE

SWITCH, OIL PRESSURE

8-47

PINION ASSY

PINION ASSY

8-46

STARTER MOTOR

STARTER MOTOR

8-61

RUBBER, STARTER MOTOR

RUBBER, STARTER MOTOR

8-27

POWER TILT SOLENOID SWITCH A

POWER TILT SOLENOID SWITCH A

8-25

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-53

O-RING

O-RING

8-72

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-55

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

8-59

WASHER-DISCONTINUED

WASHER-DISCONTINUED

8-10

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

8-54

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

8-6

NUT, RH (CLOCKWISE) SB #04-012

NUT, RH (CLOCKWISE) SB #04-012

8-56

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

8-50

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

8-9

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

8-44

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-28

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-40

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-30

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-94

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-19

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-75

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-95

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-67

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-65

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-62

BOLT

BOLT

8-63

BOLT

BOLT

8-8

BOLT

BOLT

8-57

BOLT

BOLT

8-52

BUSHING

BUSHING

8-69

CLAMP

CLAMP

8-73

BATTERY CABLE (L=2750 MM)

BATTERY CABLE (L=2750 MM)

8-92

CABLE TERMINAL HOLDER

CABLE TERMINAL HOLDER

8-1

FLYWHEEL CUP (WITH RING GEAR) MFS15-20C/D

FLYWHEEL CUP (WITH RING GEAR) MFS15-20C/D

8-17

CORD ASSY, C.D. UNIT

CORD ASSY, C.D. UNIT

8-74

PROTECTOR (L=320MM)

PROTECTOR (L=320MM)

8-3

PULSER COIL

PULSER COIL

8-21

BRACKET, C.D. UNIT

BRACKET, C.D. UNIT

8-14

C.D. IGNITION UNIT (CU7275)

C.D. IGNITION UNIT (CU7275)

8-42

IGNITION COIL

IGNITION COIL

8-2

ALTERNATOR

ALTERNATOR

8-83

PROTECTOR

PROTECTOR

8-36

PTT SOLENOID BRACKET

PTT SOLENOID BRACKET

8-29

STAY

STAY

8-31

SOLENOID SWITCH CORD A (L=300)

SOLENOID SWITCH CORD A (L=300)

8-78

PROTECTOR (L=180MM)

PROTECTOR (L=180MM)

8-98

MOUNT, RUBBER

MOUNT, RUBBER

8-12

BOLT, 6-25 PRE-COATED

BOLT, 6-25 PRE-COATED

8-43

PLUG CAP (WITH RESISTANCE)

PLUG CAP (WITH RESISTANCE)

8-37

RUBBER MOUNT

RUBBER MOUNT

8-80

TERMINAL CAP

TERMINAL CAP

8-82

WIRE TIE BAND

WIRE TIE BAND

8-13

DOWEL PIN 6-12

DOWEL PIN 6-12

8-24

COLLAR, 6.2-9-8.7

COLLAR, 6.2-9-8.7

8-96

TERMINAL HOLDER COVER

TERMINAL HOLDER COVER

8-51

BUSHING

BUSHING

8-26

LEAD WIRE BAND 135

LEAD WIRE BAND 135

8-48

WASHER

WASHER

8-49

BRUSH HOLDER ASSY.

BRUSH HOLDER ASSY.

8-33

CABLE ASSY B

CABLE ASSY B

8-23

WASHER

WASHER

8-16

WASHER

WASHER

8-38

WASHER

WASHER

8-97

DECAL, WIRING DIAGRAM (EP)

DECAL, WIRING DIAGRAM (EP)

8-89

LEAD WIRE BAND 135

LEAD WIRE BAND 135

8-91

LEAD WIRE BAND 135

LEAD WIRE BAND 135

8-41

LEAD WIRE BAND 135

LEAD WIRE BAND 135

8-97

DECAL, WIRING DIAGRAM (MF/EF/EFT)

DECAL, WIRING DIAGRAM (MF/EF/EFT)

8-70

BAND MOUNT

BAND MOUNT

8-76

TERMINAL CAP

TERMINAL CAP

8-90

CORD ASSY

CORD ASSY

8-86

FUSE CABLE (L=720MM)

FUSE CABLE (L=720MM)

8-88

BRACKET, FUSE HOLDER

BRACKET, FUSE HOLDER

8-68

RECTIFIER

RECTIFIER

8-66

BRACKET, STARTER SOLENOID

BRACKET, STARTER SOLENOID

8-64

STARTER SOLENOID

STARTER SOLENOID

8-60

BAND, STARTER MOTOR

BAND, STARTER MOTOR

8-35

EXTENSION CORD (PTT)

EXTENSION CORD (PTT)

8-58

SPRING WASHER-DISCONTINUED

SPRING WASHER-DISCONTINUED
