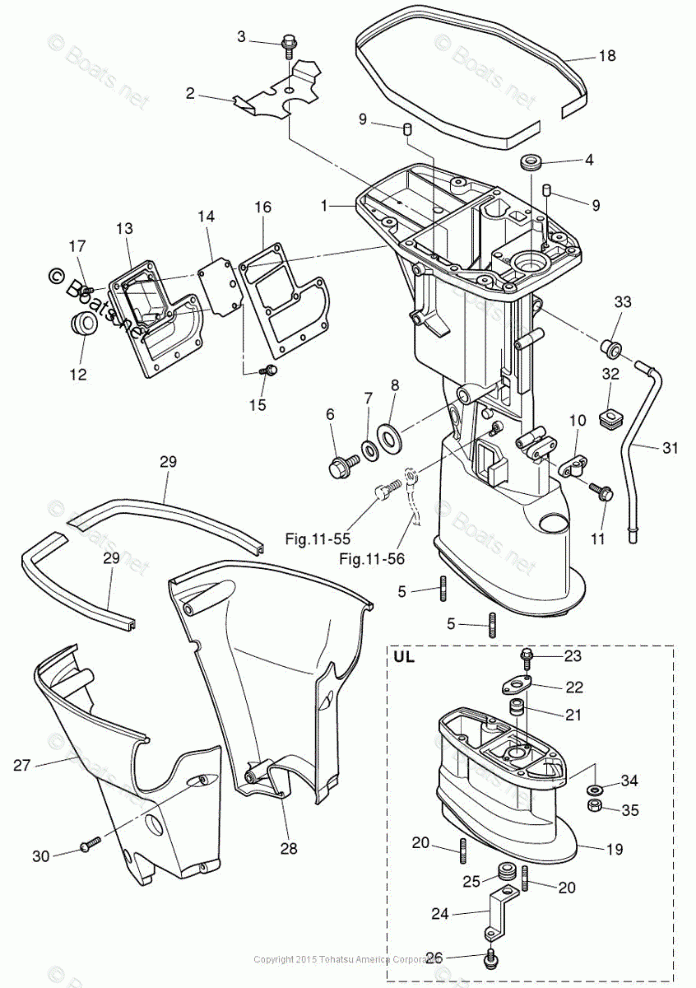

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS20D
Tohatsu
#oem кодцена
9-9
345011110
DOWEL PIN 6-12
9-10
3V6660370
CAM ROD HOLDER
9-8
3R3670170
GROMMET, OIL DRAIN
9-18
3R3671160
SEAL RUBBER
9-27
3R3Q670031
COVER, DRIVE SHAFT HOUSING R (AMB)
9-28
3R3Q670041
COVER, DRIVE SHAFT HOUSING L (AMB)
9-22
3V1643320
STOPPER, BUSHING
9-25
3V1652040
RUBBER MOUNT
9-2
3V9074400
GUIDE PLATE
9-32
3R3652040
GUIDE RUBBER, WATER PIPE
9-24
3Z0652030
LOCK PLATE
9-17
9101140616
BOLT (10 MULTIPLE)
9-15
9101E30512
BOLT
9-3
9101E35612
BOLT WASHER (10 MULTIPLE)
9-23
9101E35612
BOLT WASHER (10 MULTIPLE)
9-11
9101E35620
BOLT WASHER (10 MULTIPLE)
9-26
9215030510
SCREW (10 MULTIPLE)
9-33
3R3652061
SEAL RUBBER, UPPER, WATER PIPE
9-29
3R3612130
SEAL RUBBER, APRON
9-4
350012151
OIL SEAL
9-19
3BJQ611100
EXTENSION HOUSING UL
9-20
3BJ600010
BOLT 8-31
9-5
3BJ600010
BOLT 8-31
9-21
3BJ600030
DRIVE SHAFT BUSHING
9-12
3BJ612070
GROMMET, IDLE EXHAUST PORT
9-16
3BJ612200
GASKET, IDLE EXHAUST PORT
9-14
3BJ621140
PLATE, IDLE EXHAUST PORT
9-31
3BJ651200
WATER PIPE UL
9-13
3BJQ612080
COVER, IDLE EXHAUST PORT
9-6
3R3077051
DRAIN BOLT
9-1
3BKQ610202
DRIVE SHAFT HOUSING S
9-1
3BKQ610301
DRIVE SHAFT HOUSING L
9-31
3H8651000
WATER PIPE S
9-31
3H8651100
WATER PIPE L (L=15 1/2)
9-34
3P0662330
WASHER (10 MULTIPLE)
9-30
3R0612170
TAPPING SCREW
9-7
3R3074060
WASHER (10 MULTIPLE)
9-35
9301030800
NUT (10 MULTIPLE)
