ПУСКОВОЙ МЕХАНИЗМ Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS20D (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2015
MFS20D
ПУСКОВОЙ МЕХАНИЗМ
ПУСКОВОЙ МЕХАНИЗМ

ПУСКОВОЙ МЕХАНИЗМ

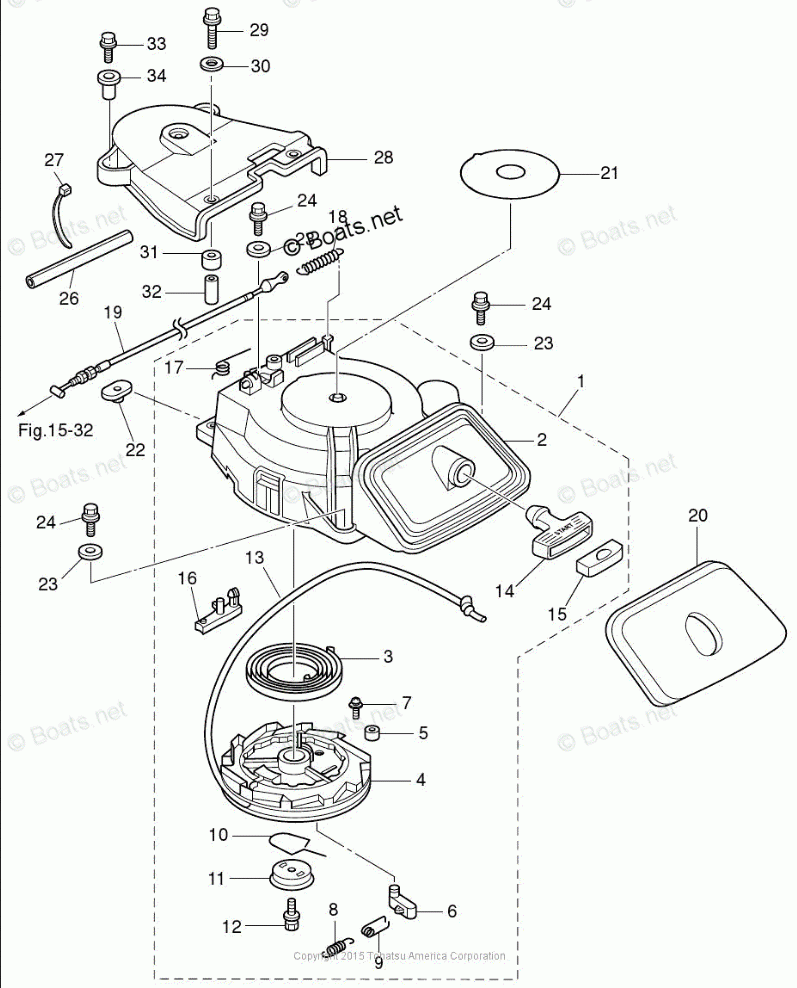

Tohatsu MFS20D

ПУСКОВОЙ МЕХАНИЗМ

#

oem код

название

цена

7-27

WIRE TIE BAND

WIRE TIE BAND

7-9

RATCHET GUIDE

RATCHET GUIDE

7-33

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-26

PROTECTOR

PROTECTOR

7-20

STARTER SEAL

STARTER SEAL

7-28

BELT COVER

BELT COVER

7-32

COLLAR

COLLAR

7-31

MOUNT RUBBER

MOUNT RUBBER

7-16

STARTER LOCK

STARTER LOCK

7-17

SPRING

SPRING

7-12

BOLT, STARTER SHAFT

BOLT, STARTER SHAFT

7-13

STARTER ROPE

STARTER ROPE

7-8

RETURN SPRING

RETURN SPRING

7-10

FRICTION SPRING

FRICTION SPRING

7-11

FRICTION PLATE

FRICTION PLATE

7-21

CAUTION DECAL B

CAUTION DECAL B

7-3

STARTER SPRING

STARTER SPRING

7-15

ROPE ANCHOR

ROPE ANCHOR

7-22

NUT

NUT

7-30

WASHER

WASHER

7-23

WASHER

WASHER

7-34

COLLAR, 6.1-14-8.9

COLLAR, 6.1-14-8.9

7-7

TAPPING SCREW

TAPPING SCREW

7-19

STARTER LOCK CABLE

STARTER LOCK CABLE

7-5

BUSHING

BUSHING

7-2

STARTER CASE

STARTER CASE

7-4

REEL

REEL

7-1

RECOIL STARTER

RECOIL STARTER

7-14

STARTER HANDLE

STARTER HANDLE

7-6

RATCHET

RATCHET

7-24

BOLT, PRE-COATED 6-20

BOLT, PRE-COATED 6-20

7-18

CAM SPRING, STARTER LOCK

CAM SPRING, STARTER LOCK

7-29

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)
