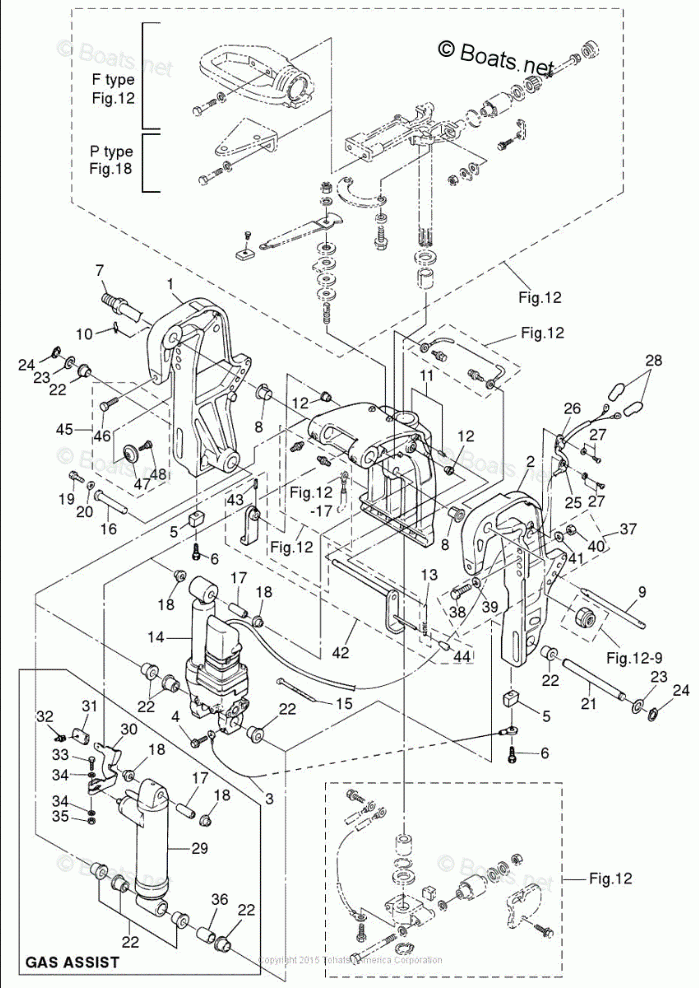

BRACKET (PTT & GAS ASSIST)

Tohatsu MFS30C
Tohatsu
#oem кодцена
13-15
1H2315340
LEAD WIRE BAND-LOCAL PURCHASE
13-29
3R0Q776012
GAS SHOCK ABSORBER
13-42
3GF624661
TILT STOPPER (PTT TYPE)
13-16
3KY770710
CYLINDER PIN (UPPER)
13-21
3KY771010
CYLINDER PIN (LOWER)
13-13
3R0624730
SPRING, TILT STOPPER
13-30
3R0663110
LOCK LEVER
13-17
3R0770750
BUSHING, 13-16-40
13-18
3R0770760
BUSHING, 13-17-19.5
13-36
3R0771050
COLLAR
13-23
3R0771120
WASHER
13-9
3R0771180
THRUST ROD
13-33
3V2600010
BOLT, 6-35 PRECOATED
13-46
3C8772160
CLAMP SCREW (PTT)
13-28
3Y1761450
TERMINAL CAP
13-19
9101030612
BOLT (10 MULTIPLE)
13-6
9101035630
BOLT (10 MULTIPLE)
13-4
9101E35612
BOLT WASHER (10 MULTIPLE)
13-27
9215035612
SCREW (10 MULTIPLE)
13-35
9301030600
NUT (10 MULTIPLE)
13-34
9401130600
WASHER (10 MULTIPLE)
13-41
9401E31200
WASHER (10-MULTIPLE)
13-24
9451031800
C-RING
13-43
9514033516
SPRING PIN (10 MULTIPLE)
13-45
3C8772170
CLAMP SCREW KIT
13-8
3C8772130
BUSHING
13-47
332621011
PAD, CLAMP SCREW (THREADED STYLE)
13-11
3ACQ772081
SWIVEL BRACKET (PTT)
13-25
336069730
CLAMP
13-20
345051221
WASHER, RACHET
13-26
345069150
CORD CLAMP A
13-32
346663340
STOPPER
13-39
353613340
WASHER, 13-34-3
13-12
353632070
COLLAR
13-44
369624331
GRIP
13-3
398623961
GROUND WIRE
13-42
3AC624661
TILT STOPPER (GAS ASSIST)
13-14
3AC771511
POWER TRIM TILT ASSY
13-7
3AD621910
SWIVEL BRACKET BOLT (PTT)
13-22
3C8770761
BUSHING, 18-24-22
13-37
3AD721200
RIGGING BOLT SET
13-1
3AEQ772111
CLAMP BRACKET, RIGHT (PTT)
13-2
3AEQ772120
CLAMP BRACKET, LEFT (PTT)
13-1
3AFQ772110
CLAMP BRACKET (RIGHT), GAS ASSIST TYPE
13-2
3AFQ772120
CLAMP BRACKET (LEFT), GAS ASSIST TYPE
13-31
3AL663330
LOCK LEVER GRIP
13-5
3B7602181
ANODE
13-38
3C7621332
BOLT, STERN BRACKET
13-40
3C7621391
NUT
13-48
3C8621070
SHOULDER BOLT
13-10
9516031000
R-PIN D=10MM
