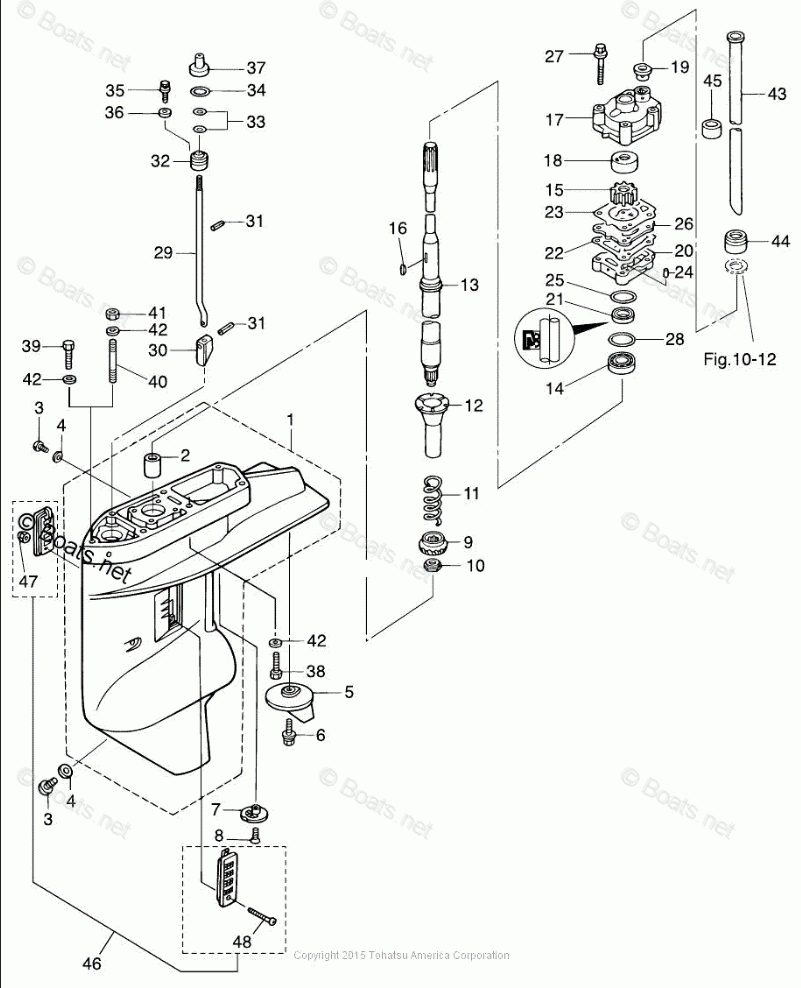

GEAR CASE, DRIVE SHAFT
GEAR CASE, DRIVE SHAFT

GEAR CASE, DRIVE SHAFT

Tohatsu MFS30C

GEAR CASE, DRIVE SHAFT

#

oem код

название

цена

11A-3

OIL PLUG (8 X 1.25)

OIL PLUG (8 X 1.25)

11A-36

WASHER, 6-16-1.5

WASHER, 6-16-1.5

11A-13

DRIVE SHAFT S

DRIVE SHAFT S

11A-18

LINER, PUMP CASE

LINER, PUMP CASE

11A-17

UPPER PUMP CASE

UPPER PUMP CASE

11A-23

GASKET, PUMP CASE

GASKET, PUMP CASE

11A-26

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

11A-43

WATER PIPE S

WATER PIPE S

11A-43

WATER PIPE L

WATER PIPE L

11A-43

WATER PIPE UL

WATER PIPE UL

11A-44

UPPER SEAL RUBBER, WATER PUMP

UPPER SEAL RUBBER, WATER PUMP

11A-32

BUSHING, CAM ROD

BUSHING, CAM ROD

11A-35

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

11A-29

CAM ROD L

CAM ROD L

11A-6

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

11A-27

BOLT WASHER

BOLT WASHER

11A-40

STUD BOLT

STUD BOLT

11A-38

BOLT B (10 MULTIPLE)

BOLT B (10 MULTIPLE)

11A-39

BOLT

BOLT

11A-48

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

11A-8

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

11A-41

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

11A-47

NYLON NUT (10 MULTIPLE)

NYLON NUT (10 MULTIPLE)

11A-42

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

11A-31

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

11A-29

CAM ROD UL

CAM ROD UL

11A-29

CAM ROD S

CAM ROD S

11A-4

GASKET (10 MULTIPLE)

GASKET (10 MULTIPLE)

11A-12

PIPE

PIPE

11A-16

IMPELLER KEY

IMPELLER KEY

11A-33

O-RING

O-RING

11A-24

DOWEL PIN,4-10

DOWEL PIN,4-10

11A-25

O-RING

O-RING

11A-15

IMPELLER(25B-40C)

IMPELLER(25B-40C)

11A-14

BEARING B, TAPERED ROLLER

BEARING B, TAPERED ROLLER

11A-28

SHIM KIT

SHIM KIT

11A-10

NUT, BEVEL GEAR B

NUT, BEVEL GEAR B

11A-13

DRIVE SHAFT L (OVERALL LENGTH 30)

DRIVE SHAFT L (OVERALL LENGTH 30)

11A-13

DRIVE SHAFT UL (OVERALL LENGTH 35)

DRIVE SHAFT UL (OVERALL LENGTH 35)

11A-11

SPRING

SPRING

11A-21

OIL SEAL

OIL SEAL

11A-9

BEVEL GEAR B (PINION)

BEVEL GEAR B (PINION)

11A-20

PUMP CASE LOWER

PUMP CASE LOWER

11A-37

HOLDER, CAM ROD

HOLDER, CAM ROD

11A-22

GASKET, PUMP GUIDE PLATE

GASKET, PUMP GUIDE PLATE

11A-7

SUB WATER STRAINER

SUB WATER STRAINER

11A-30

CLUTCH CAM

CLUTCH CAM

11A-2

NEEDLE BEARING

NEEDLE BEARING

11A-1

GEAR CASE

GEAR CASE

11A-19

SEAL RUBBER LOWER WATER PIPE

SEAL RUBBER LOWER WATER PIPE

11A-46

WATER STRAINER (SET OF 2)

WATER STRAINER (SET OF 2)

11A-5

TRIM TAB

TRIM TAB

11A-34

O-RING

O-RING

11A-45

RUBBER PIPE-NO LONGER AVAILABLE

RUBBER PIPE-NO LONGER AVAILABLE
