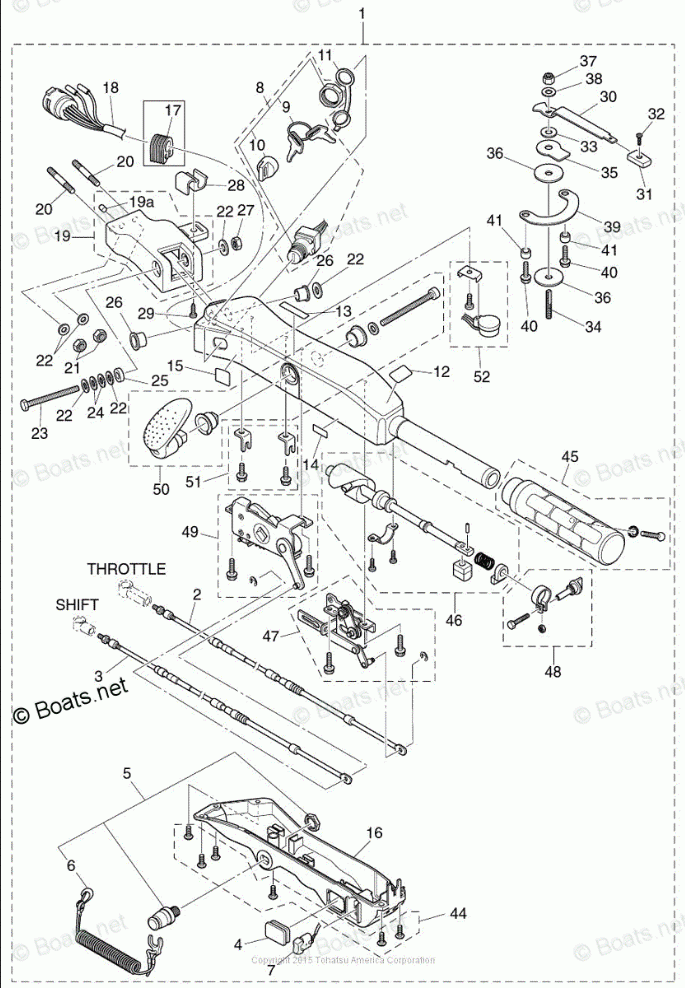

TILLER HANDLE (MULTI-FUNCTION) Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS30C (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2015
MFS30C
TILLER HANDLE (MULTI-FUNCTION)
TILLER HANDLE (MULTI-FUNCTION)

TILLER HANDLE (MULTI-FUNCTION)

Tohatsu MFS30C

TILLER HANDLE (MULTI-FUNCTION)

#

oem код

название

цена

20A-32

STOPPER

STOPPER

20A-3

SHIFT CABLE-MULTI-FUNCTION TILLER F25/30C

SHIFT CABLE-MULTI-FUNCTION TILLER F25/30C

20A-13

SHIFT DECAL

SHIFT DECAL

20A-12

THROTTLE DECAL

THROTTLE DECAL

20A-14

STOP SWITCH DECAL

STOP SWITCH DECAL

20A-8

MAIN SWITCH

MAIN SWITCH

20A-52

BUZZER KIT

BUZZER KIT

20A-10

MAIN SWITCH KEY CAP

MAIN SWITCH KEY CAP

20A-9

KEY-#943 (ONE KEY)

KEY-#943 (ONE KEY)

20A-9

KEY-#944 (ONE KEY)

KEY-#944 (ONE KEY)

20A-9

KEY-#945 (ONE KEY)

KEY-#945 (ONE KEY)

20A-2

THROTTLE WIRE-MULTI-FUNCTION TILLER F25/30C

THROTTLE WIRE-MULTI-FUNCTION TILLER F25/30C

20A-1

MULTI FUNCTION TILLER HANDLE F25/30C

MULTI FUNCTION TILLER HANDLE F25/30C

20A-49

SHIFT UNIT ASSY

SHIFT UNIT ASSY

20A-33

WASHER

WASHER

20A-34

BOLT, CO-PILOT

BOLT, CO-PILOT

20A-35

WASHER, CO-PILOT

WASHER, CO-PILOT

20A-36

DISK, CO-PILOT

DISK, CO-PILOT

20A-29

TAPPING SCREW 6-16

TAPPING SCREW 6-16

20A-11

CAP , MAIN SWITCH

CAP , MAIN SWITCH

20A-40

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

20A-20

STUD BOLT

STUD BOLT

20A-37

NYLON NUT (10 MULTIPLE)

NYLON NUT (10 MULTIPLE)

20A-21

NYLON NUT

NYLON NUT

20A-38

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

20A-51

CABLE BRACKET KIT

CABLE BRACKET KIT

20A-50

SHIFT LEVER KIT

SHIFT LEVER KIT

20A-6

SAFETY LANYARD LOCK

SAFETY LANYARD LOCK

20A-28

CORD HOLDER

CORD HOLDER

20A-5

STOP SWITCH ASSY W/LANYARD

STOP SWITCH ASSY W/LANYARD

20A-30

FRICTION LEVER, D25/30B

FRICTION LEVER, D25/30B

20A-39

PLATE, CO-PILOT

PLATE, CO-PILOT

20A-31

GRIP

GRIP

20A-41

COLLAR

COLLAR

20A-4

GROMMET

GROMMET

20A-7

PTT SWITCH ASSY

PTT SWITCH ASSY

20A-18

CORD ASSY, TILLER HANDLE KIT, D25/30B

CORD ASSY, TILLER HANDLE KIT, D25/30B

20A-15

INSTRUCTION DECAL

INSTRUCTION DECAL

20A-19

STEERING BRACKET ASSY, F25/30B, F40/50A

STEERING BRACKET ASSY, F25/30B, F40/50A

20A-25

SPACER

SPACER

20A-19A

DOWEL PIN, TILLER HANDLE

DOWEL PIN, TILLER HANDLE

20A-48

THROTTLE FRICTION ASSY

THROTTLE FRICTION ASSY

20A-46

THROTTLE SHAFT KIT

THROTTLE SHAFT KIT

20A-47

THROTTLE LINK ASSY

THROTTLE LINK ASSY

20A-26

BUSHING

BUSHING

20A-45

GRIP PARTS KIT

GRIP PARTS KIT

20A-23

BOLT

BOLT

20A-44

SCREW SET

SCREW SET

20A-24

CONICAL SPRING WASHER

CONICAL SPRING WASHER

20A-27

LOCK NUT

LOCK NUT

20A-16

TILLER HANDLE COVER

TILLER HANDLE COVER

20A-17

GROMMET

GROMMET

20A-22

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)
