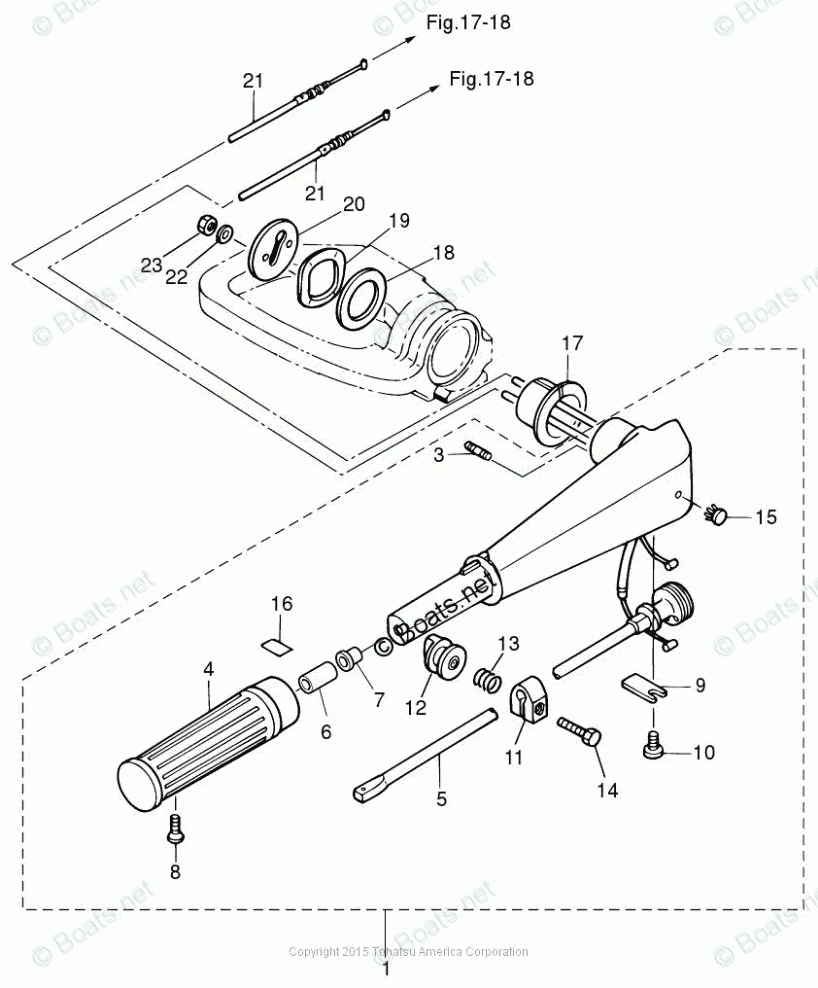

TILLER HANDLE (STANDARD)
TILLER HANDLE (STANDARD)

TILLER HANDLE (STANDARD)

Tohatsu MFS30C

TILLER HANDLE (STANDARD)

#

oem код

название

цена

15-6

FRICTION RUBBER, THROTTLE SHAFT A

FRICTION RUBBER, THROTTLE SHAFT A

15-18

WASHER

WASHER

15-23

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

15-8

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

15-10

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

15-14

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

15-12

ADJUST NUT

ADJUST NUT

15-13

SPRING

SPRING

15-11

FRICTION PIECE

FRICTION PIECE

15-19

WAVE WASHER

WAVE WASHER

15-20

PLATE, STEERING HANDLE

PLATE, STEERING HANDLE

15-7

BUSHING

BUSHING

15-17

BUSHING, HANDLE

BUSHING, HANDLE

15-5

THROTTLE SHAFT

THROTTLE SHAFT

15-4

GRIP

GRIP

15-21

THROTTLE CABLE

THROTTLE CABLE

15-3

STUD

STUD

15-9

SUPPORTER

SUPPORTER

15-1

TILLER HANDLE ASSY (AMB)

TILLER HANDLE ASSY (AMB)

15-16

THROTTLE DECAL

THROTTLE DECAL

15-15

PIN

PIN

15-22

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)
