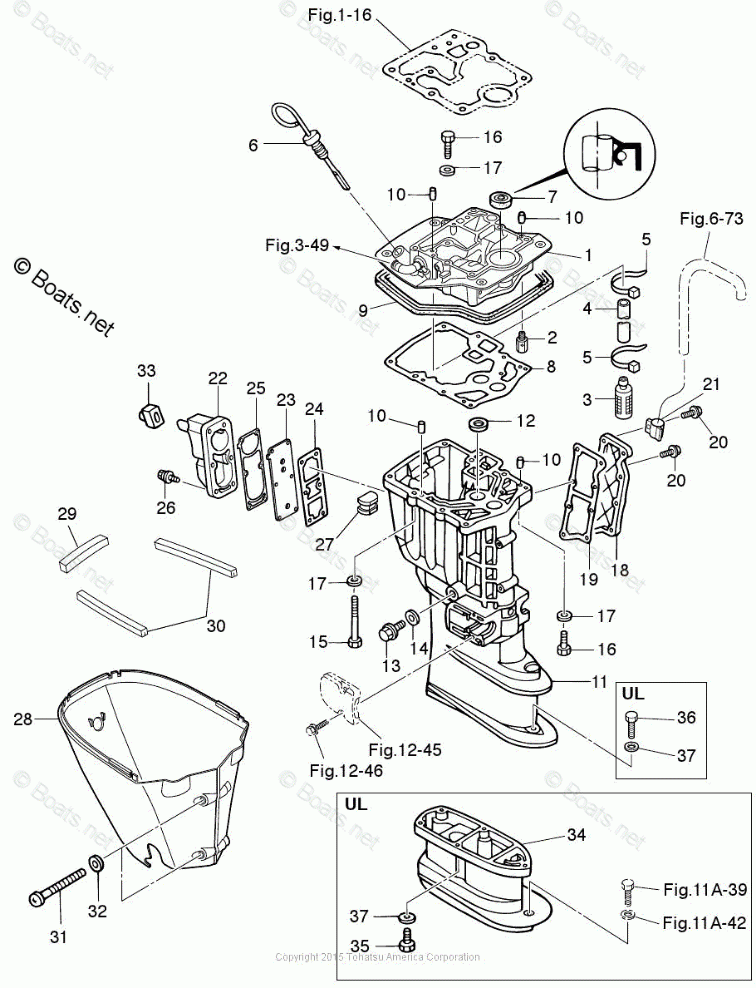

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS30C
Tohatsu
#oem кодцена
10-10
345011110
DOWEL PIN 6-12
10-3
3R3077101
OIL STRAINER
10-24
3R0612070
GASKET, IDLE PORT
10-12
3R0652070
PLATE, WATER PIPE
10-9
3R0671160
SEAL RUBBER, ENGINE BASE
10-18
3R0Q610280
DRAIN COVER
10-14
3R3074060
WASHER (10 MULTIPLE)
10-13
3R3077051
DRAIN BOLT
10-30
3T1612130
APRON SEAL
10-16
3R0610171
BOLT
10-2
3V2076200
PLUNGER
10-20
9101035618
BOLT (10 MULTIPLE)
10-26
9101E35620
BOLT WASHER (10 MULTIPLE)
10-35
9161E30835
BOLT (10 MULTIPLE)
10-36
9161E30845
BOLT
10-17
9401030800
WASHER (10 MULTIPLE)
10-32
9401130600
WASHER (10 MULTIPLE)
10-19
3R0610290
GASKET, DRAIN COVER
10-8
3R0610120
GASKET, DRIVE SHAFT HOUSING
10-21
345069150
CORD CLAMP A
10-23
3AC621140
PLATE
10-7
346012150
OIL SEAL, DRIVE SHAFT
10-34
346Q611105
EXTENSION HOUSING UL
10-5
369843980
WIRE TIE BAND
10-6
3AC074210
OIL LEVEL GAUGE
10-27
3AC611820
GROMMET
10-31
3AC612170
TAPPING SCREW
10-25
3AC612201
GASKET, IDLE EXHAUST PORT COVER
10-22
3ACQ612080
COVER, IDLE EXHAUST PORT
10-37
3P0662330
WASHER (10 MULTIPLE)
10-11
3AEQ611912
DRIVE SHAFT HOUSING S
10-11
3AEQ611923
DRIVE SHAFT HOUSING L
10-15
3B7610173
BOLT 8-105
10-29
3F3672131
SEAL RUBBER, FILLER LID
10-33
3NV612120
GROMMET, APRON
10-1
3NVB013000
ENGINE BASE
10-28
3NVQ612100
APRON
10-4
98AH951000
HOSE
