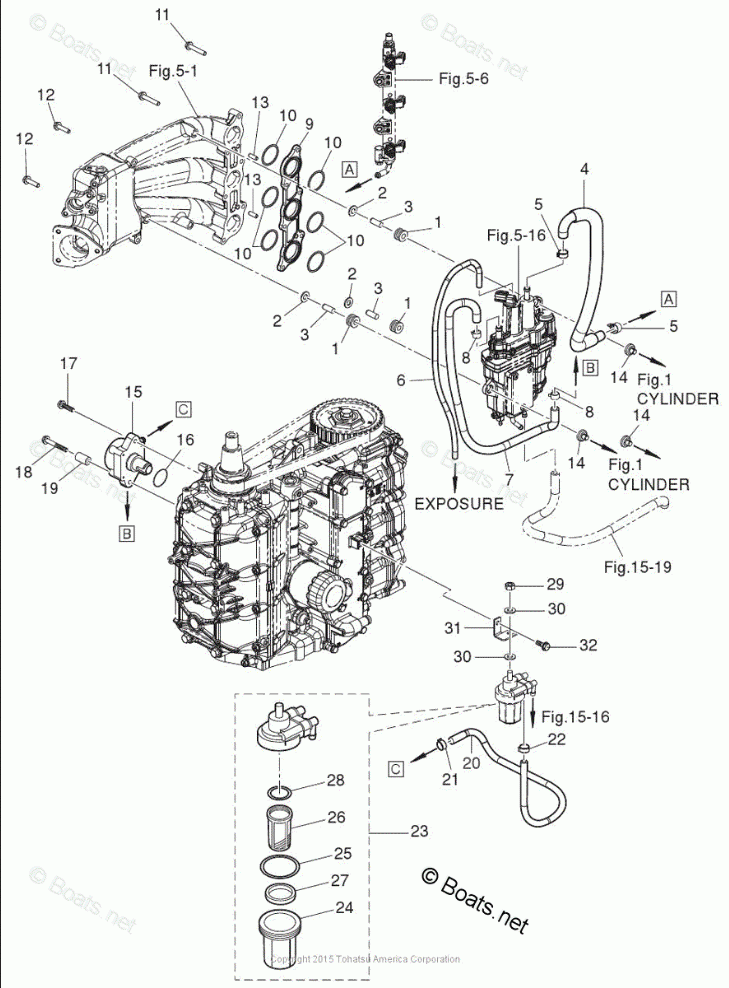

FUEL SYSTEM

Tohatsu MFS50A

FUEL SYSTEM

#

oem код

название

цена

6-8

CLIP

CLIP

6-20

LOW PERMEATION HOSE (L=445MM)

LOW PERMEATION HOSE (L=445MM)

6-30

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

6-29

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

6-11

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

6-12

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

6-17

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

6-32

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

6-18

BOLT

BOLT

6-23

FUEL FILTER ASSY

FUEL FILTER ASSY

6-27

FLOAT

FLOAT

6-16

O-RING

O-RING

6-14

BUSHING

BUSHING

6-1

RUBBER MOUNT

RUBBER MOUNT

6-7

LOW PERMEATION HOSE, 30-430-45

LOW PERMEATION HOSE, 30-430-45

6-7

FUEL HOSE, 7-12

FUEL HOSE, 7-12

6-15

FUEL PUMP ASSY

FUEL PUMP ASSY

6-21

CLIP

CLIP

6-22

CLIP, @ 9.4

CLIP, @ 9.4

6-5

CLAMP

CLAMP

6-13

KNOCK

KNOCK

6-26

FILTER

FILTER

6-25

O-RING A

O-RING A

6-28

O-RING B

O-RING B

6-24

CUP

CUP

6-3

PIN, 8-22

PIN, 8-22

6-9

INSULATOR

INSULATOR

6-10

O-RING, 1.9-33.2

O-RING, 1.9-33.2

6-4

FUEL HOSE W/ PROTECTOR, 80-200-55

FUEL HOSE W/ PROTECTOR, 80-200-55

6-6

FUEL HOSE

FUEL HOSE

6-20

FUEL HOSE (L=445MM)

FUEL HOSE (L=445MM)

6-31

PLATE

PLATE

6-19

SPACER, 6.5-13-22

SPACER, 6.5-13-22

6-2

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)
