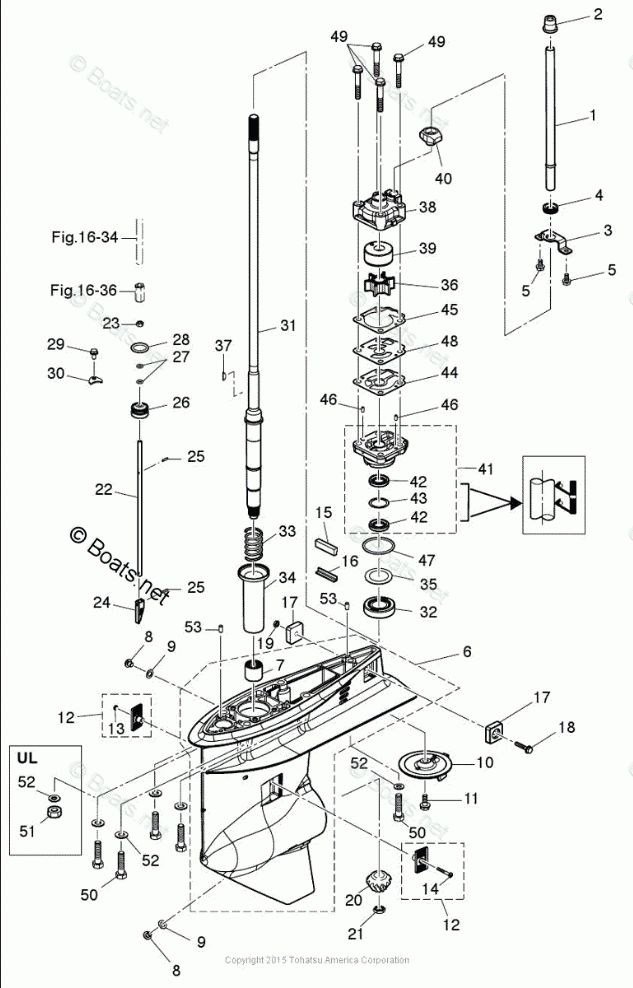

GEAR CASE, DRIVE SHAFT
GEAR CASE, DRIVE SHAFT

GEAR CASE, DRIVE SHAFT

Tohatsu MFS50A

GEAR CASE, DRIVE SHAFT

#

oem код

название

цена

11-8

OIL PLUG (8 X 1.25)

OIL PLUG (8 X 1.25)

11-26

BUSHING, CAM ROD

BUSHING, CAM ROD

11-41

PUMP CASE ASSY (LOWER)

PUMP CASE ASSY (LOWER)

11-1

WATER PIPE (S)

WATER PIPE (S)

11-1

WATER PIPE (L)

WATER PIPE (L)

11-1

WATER PIPE (UL)

WATER PIPE (UL)

11-3

LOCK PLATE

LOCK PLATE

11-4

WATER PIPE AUXILIARY MOUNT

WATER PIPE AUXILIARY MOUNT

11-2

WATER PIPE SEAL (UPPER)

WATER PIPE SEAL (UPPER)

11-22

CAM ROD (L)

CAM ROD (L)

11-22

CAM ROD (UL)

CAM ROD (UL)

11-6

GEAR CASE ASSY

GEAR CASE ASSY

11-10

TRIM TAB (NOT ANODE)

TRIM TAB (NOT ANODE)

11-39

LINER, PUMP CASE

LINER, PUMP CASE

11-33

DRIVE SHAFT SPRING

DRIVE SHAFT SPRING

11-38

UPPER PUMP CASE

UPPER PUMP CASE

11-45

GASKET, PUMP CASE

GASKET, PUMP CASE

11-11

BOLT

BOLT

11-5

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

11-29

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

11-18

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

11-49

BOLT

BOLT

11-14

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

11-23

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

11-13

NYLON NUT (10 MULTIPLE)

NYLON NUT (10 MULTIPLE)

11-19

NYLON NUT

NYLON NUT

11-52

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

11-34

DRIVE SHAFT SPRING GUIDE

DRIVE SHAFT SPRING GUIDE

11-31

DRIVE SHAFT (UL)

DRIVE SHAFT (UL)

11-9

GASKET (10 MULTIPLE)

GASKET (10 MULTIPLE)

11-40

RUBBER SEAL

RUBBER SEAL

11-37

IMPELLER KEY

IMPELLER KEY

11-27

O-RING

O-RING

11-46

DOWEL PIN,4-10

DOWEL PIN,4-10

11-35

SHIM KIT

SHIM KIT

11-47

O-RING

O-RING

11-30

STOPPER

STOPPER

11-53

DOWEL PIN, 6-12

DOWEL PIN, 6-12

11-24

CLUTCH CAM

CLUTCH CAM

11-51

NUT

NUT

11-42

OIL SEAL

OIL SEAL

11-21

NUT BEVEL GEAR

NUT BEVEL GEAR

11-43

SHIM

SHIM

11-36

IMPELLER (40D/F40A/50D/F50A)

IMPELLER (40D/F40A/50D/F50A)

11-31

DRIVE SHAFT (L)

DRIVE SHAFT (L)

11-48

GUIDE PLATE

GUIDE PLATE

11-44

GASKET

GASKET

11-28

O-RING

O-RING

11-50

BOLT 10-40 P1.25

BOLT 10-40 P1.25

11-15

WATER SEAL RUBBER

WATER SEAL RUBBER

11-16

WATER SEAL PLATE

WATER SEAL PLATE

11-12

WATER STRAINER SET

WATER STRAINER SET

11-7

ROLLER BEARING 1416

ROLLER BEARING 1416

11-32

TAPERED ROLLER BEARING 30205XR

TAPERED ROLLER BEARING 30205XR

11-17

ANODE

ANODE

11-20

BEVEL GEAR B

BEVEL GEAR B

11-31

DRIVE SHAFT (S)

DRIVE SHAFT (S)

11-25

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)
