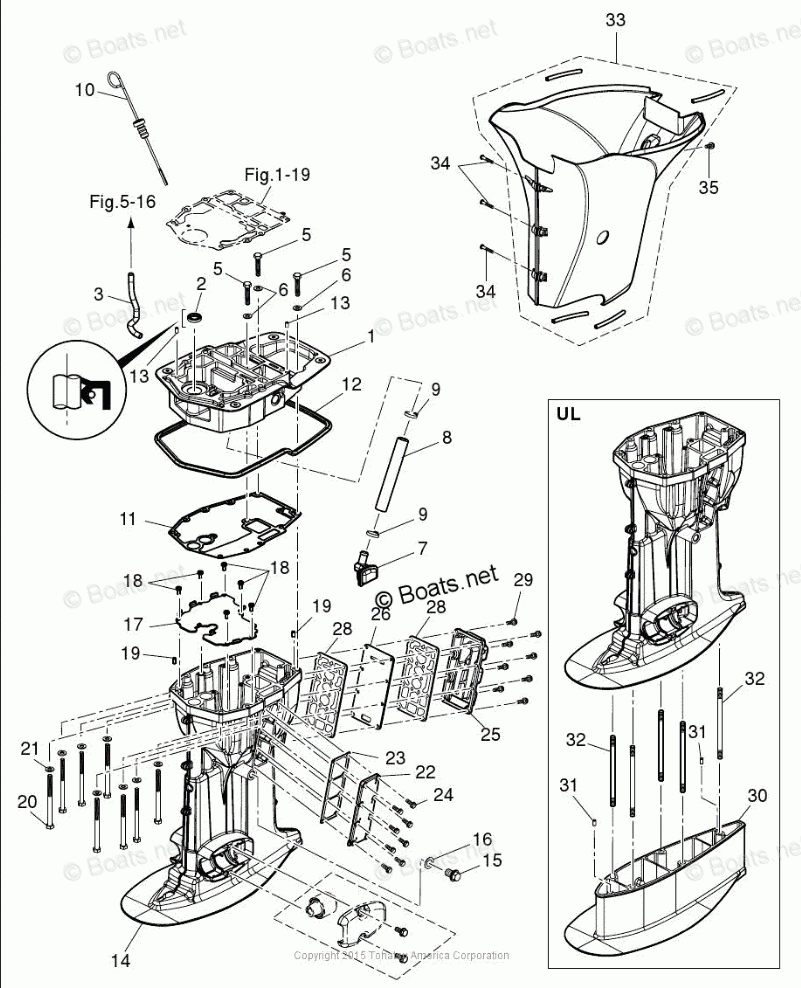

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS50A
Tohatsu
#oem кодцена
10-19
345011110
DOWEL PIN 6-12
10-5
3LD010120
CYLINDER HEAD BOLT
10-22
3KYQ610280
COVER
10-14
3KYQ610301
DRIVE SHAFT HOUSING ASSY (L)
10-30
3KYQ611100
EXTENSION HOUSING (UL)
10-25
3KYQ612080
IDLE EXHAUST PORT COVER
10-33
3KYQ612250
APRON (L UL)
10-33
3KZQ612250
APRON (S)
10-16
3R3074060
WASHER (10 MULTIPLE)
10-1
3KYQ013000
ENGINE BASE ASSY
10-15
3R3077051
DRAIN BOLT
10-24
9101035618
BOLT (10 MULTIPLE)
10-35
9101E35616
BOLT WASHER (10 MULTIPLE)
10-29
9101E35620
BOLT WASHER (10 MULTIPLE)
10-18
9215030512
SCREW (10 MULTIPLE)
10-21
9401030800
WASHER (10 MULTIPLE)
10-14
3KYQ610200
DRIVE SHAFT HOUSING ASSY (S)
10-12
3KY671160
ENGINE BASE SEAL
10-13
345011110
DOWEL PIN 6-12
10-8
3KY077150
PIPE L=150MM
10-2
346012150
OIL SEAL, DRIVE SHAFT
10-9
369843980
WIRE TIE BAND
10-31
3AB011110
DOWEL PIN, 6-12
10-20
3B7610181
BOLT 8-115
10-34
3F3024230
TAPPING SCREW 5-30
10-7
3KY077100
OIL STRAINER ASSY
10-10
3KY077210
OIL LEVEL GAUGE
10-3
3KY652100
COOLING HOSE 185-30
10-17
3KY077400
GUIDE PLATE
10-11
3KY610120
DRIVE SHAFT HOUSING GASKET
10-23
3KY610290
GASKET
10-32
3KY611110
STUD 10-145 P1.25
10-28
3KY612200
IDLE EXHAUST PORT GASKET (OUTSIDE)
10-26
3KY621140
PLATE
10-6
9401030800
WASHER (10 MULTIPLE)
