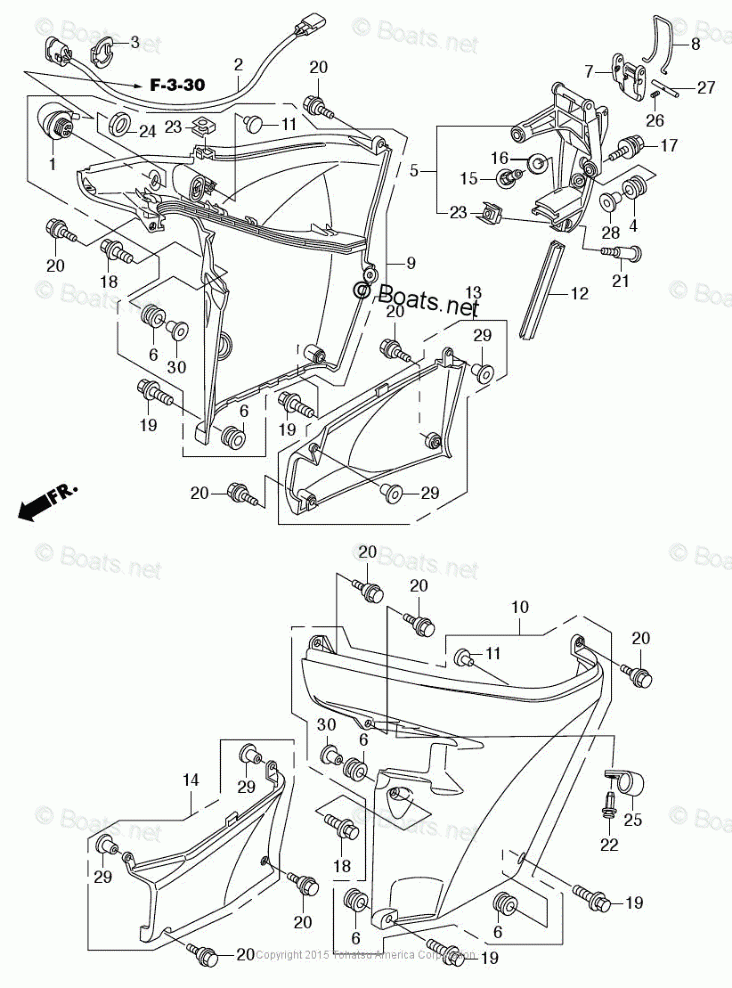

Engine Under Cover

Tohatsu BFTW60A (Power Thrust)
Tohatsu
#oem кодцена
F-8-24
H92190302000
NUT, HEX, 16MM
F-8-16
HZY982874000
SEAL, WATER CHECK GROMMET
F-8-14
HZZ363736000ZC
COVER, LOWER MOUNT, LEFT
F-8-13
HZZ363731000ZC
COVER, LOWER MOUNT, RIGHT
F-8-12
HZZ363724000
SEAL, UNDER COVER REAR
F-8-10
HZZ363715000ZC
COVER ASSY, ENGINE UNDER, LEFT
F-8-9
HZZ363710000ZC
COVER ASSY, ENGINE UNDER, RIGHT
F-8-5
HZZ340155000
BRACKET, UNDER COVER REAR
F-8-2
HZZ335640003
SWITCH ASSY, POWER TILT
F-8-30
HZY991554000
COLLAR, DISTANCE, 6.2X7.5
F-8-27
HZY990755000
PIN, 5X59
F-8-26
HZY990751000
PIN, SPRING, 2.0X12
F-8-21
HZY990113003
BOLT, RR. BRACKET
F-8-18
HZY990103000
BOLT-WASHER, 6X22
F-8-15
HZY982873000
GROMMET, WATER CHECK
F-8-6
HMB661102631
RUBBER, FENDER MOUNTING
F-8-8
HZY963237000
WIRE, FASTENER
F-8-7
HZY963232010
LEVER, FASTENER
F-8-3
HZY935645000
STAY, POWER TILT SWITCH
F-8-29
HZY691553000
COLLAR, DISTANCE, 6.5X9X5
F-8-23
HZY690301000
NUT, CLIP
F-8-1
HZY619289000
CAP, WATER JOINT
F-8-20
HZY390111000
BOLT, SPECIAL, 6X17
F-8-11
HZW963718000
RUBBER, CUSHION
F-8-17
HZW190013000
BOLT-WASHER, 6X25
F-8-28
HZV591553010
COLLAR, C.D.I. UNIT CASE
F-8-22
HZV590127003
SCREW, RIVET, 5X10
F-8-4
HZV540102000
GROMMET, UNDER CASE
F-8-25
HSB090602003
CLIP, 10.7MM
F-8-19
HZZ390106000
BOLT-WASHER, 6 X 27
