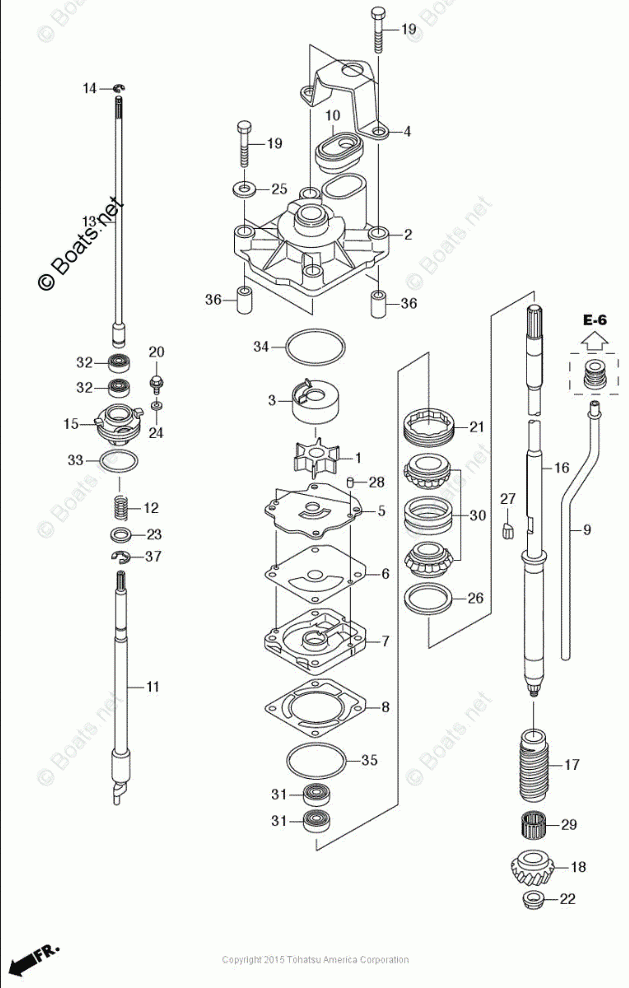

WATER PUMP (W60A-POWER THRUST MODEL)

Tohatsu BFTW60A (Power Thrust)
Tohatsu
#oem кодцена
F-4-1-23
H72390472000
WASHER, PLAIN 12MM
F-4-1-11
HZZ024310000
ROD, SHIFT (L)
F-4-1-30
HZW191054B31
BEARING, TAPER ROLLER 30X62X40
F-4-1-20
HZW990102000
BOLT, FLANGE, 6X12
F-4-1-12
HZY324318000
SPRING, SHIFT ROD
F-4-1-32
HZY391254003
SEAL, WATER 12X21X6
F-4-1-36
HZY691552000
COLLAR, DISTANCE
F-4-1-7
HZZ019241000
HOUSING, WATER PUMP
F-4-1-2
HZZ319221000
HOUSING, IMPELLER
F-4-1-26
HZW190521B00
SHIM D, GEAR (0.50)
F-4-1-3
HZZ319223000
LINER, PUMP
F-4-1-5
HZZ319231000
COVER, IMPELLER
F-4-1-6
HZZ319234E00
GASKET B, IMPELLER (POWER THRUST)
F-4-1-10
HZZ319253000
RUBBER, WATER TUBE SEAL
F-4-1-16
HZZ341112E00
DRIVE SHAFT (L) POWER THRUST
F-4-1-31
HZZ391253003
SEAL, WATER 23X36X6
F-4-1-29
HZW191052B02
BEARING, NEEDLE 1-1/8X1-1/2X1-14
F-4-1-26
HZW190520B00
SHIM C, GEAR (0.30)
F-4-1-25
H92190514000
WASHER, 8MM
F-4-1-28
HZV590756000
DOWEL PIN, 6X10
F-4-1-37
HCO9454010019
E RING 10
F-4-1-35
HMB091359000
O-RING 58.5X3.5
F-4-1-33
HMJ091308003
O-RING
F-4-1-24
HZV490511000
WASHER, PLAIN, 6MM
F-4-1-1
HZV519210003
IMPELLER, WATER PUMP (BFT60A/BFTW60A)
F-4-1-19
HZV590010000
BOLT, HEX., 8X55
F-4-1-8
HZW119242B00
GASKET, WATER PUMP
F-4-1-26
HZW190519B00
SHIM B, GEAR (0.15)
F-4-1-13
HZW124320B00
ROD, SHIFT (L)
F-4-1-14
HZW124327000
RING, STOPPER
F-4-1-17
HZW141116B00
SLINGER, OIL
F-4-1-18
HZW141131B01
GEAR, PINION (12T)
F-4-1-21
HZW190242000
NUT, LOCK (64MM)
F-4-1-22
HZW190303B03
NUT, HEX (16MM)
F-4-1-26
HZW190518B00
SHIM A, GEAR (0.10)
F-4-1-34
HZZ391356000
O-RING, WATER PUMP
